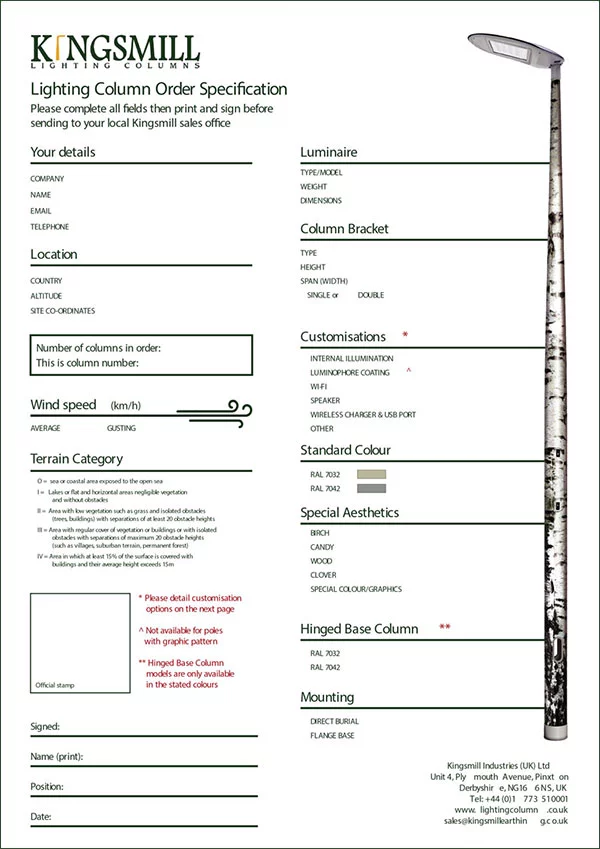

Lighting Column Order Specification
STANDARD COMPOSITE LIGHTING COLUMNS

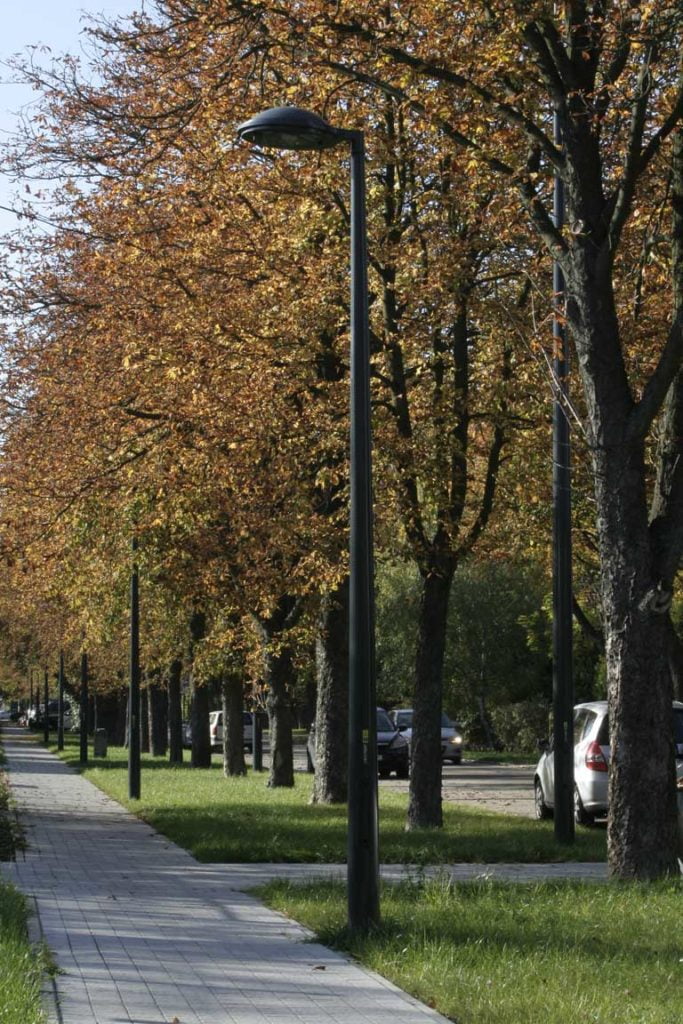

Kingsmill have a range of standard columns (street lighting poles) available for either flange base mounting or burying directly in the ground.
The choice and design of a lighting column must, however, incorporate wind loading calculations specific to the area in which the column is to be installed.
Lighting column design complies with EN 40-7:2002.
Kingsmill can assist the customer in designing the most suitable column for their application.
ADVANTAGES OF COMPOSITE COLUMNS INSTALLED DIRECTLY INTO THE GROUND
- Durability: Does not corrode like steel or aluminium
- Low cost of installation: No need for concrete foundation
- Quick installation:Â A 9 metre column weighs only 59kg
- Can be carried by two people: No need for costly unloading equipment
- Low transportation costs
PASSIVE SAFETY
The Kingsmill Passivepole, street lighting poles fully comply with the following safety standards:
EN 12767 (195mm base, 7m – 9m height)
70 NE 3 (no energy absorbing)
CUSTOMISATION
Columns can further be customised through . . .
- The provision of a hinged base, particularly suitable where roads are narrow or aerial lift trucks cannot be used
- Columns with different bottom and top diameters and reinforced wall thicknesses to suit different load conditions
- Base plates and bolt spacings can be modified to suit customer requirements
- Access doors can be produced in different dimensions
Our columns can be provided with either standard aluminium brackets or customer specific brackets.
