Product Information:

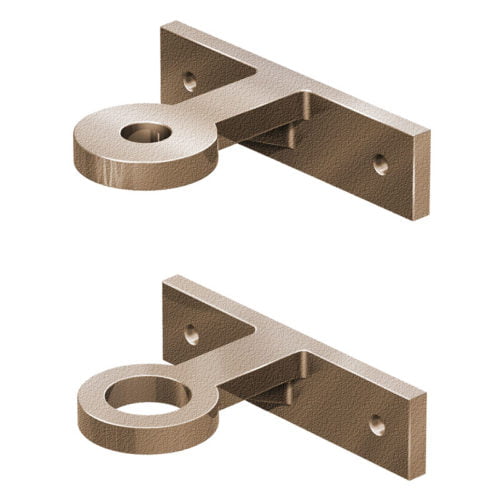

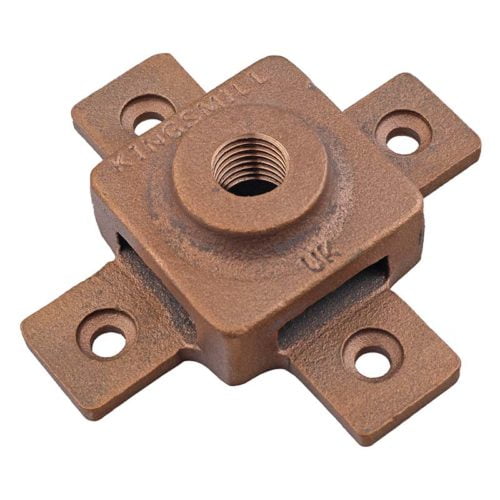

Air Terminals are designed to be used with either the standard Air Terminal Base, Multi-Purpose Base or the Side Mounted Brackets.

Features:

Material: Copper/Aluminium
Standard: BS:EN 62561-2

More Information:

Copper Air Terminals have rolled threads for high strength. Aluminium Air Terminals have cut threads.

Can be used in the installation of Conventional Air Terminals.

Conventional Air Terminals offer a quick and easy solution for Air Terminals of 0.5m to 3.0m in height.

Copper Air Terminals:

ROD LENGTH
(mm)
SHANK DIA
(mm)
THREAD DIA
(mm)
MATERIAL
WEIGHT
(kg)
PART NO.
500
8.9
10
Copper
0.33
ATCR1005
1000
8.9
10
Copper
0.65
ATCR1010
500
14.2
16
Copper
0.75
ATCR1605
1000
14.2
16
Copper
1.50
ATCR1610
1500
14.2
16
Copper
2.25
ATCR1615
2000
14.2
16
Copper
3.00
ATCR1620
2500
14.2
16
Copper
3.75
ATCR1625
3000
14.2
16
Copper
4.50
ATCR1630

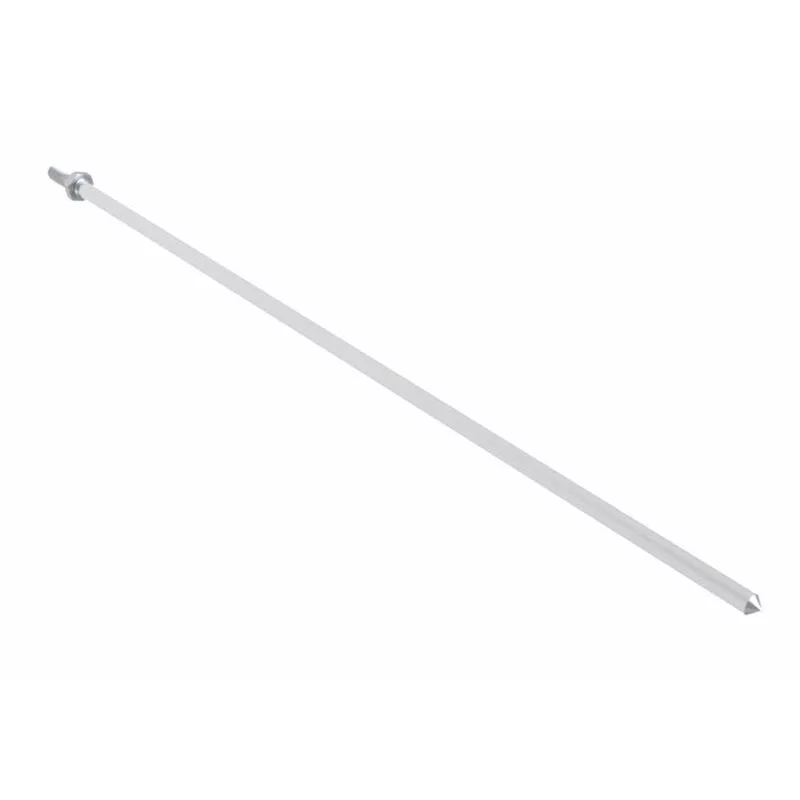

Aluminium Air Terminals:

ROD LENGTH
(mm)
SHANK DIA
(mm)
THREAD DIA
(mm)
MATERIAL
WEIGHT
(kg)
PART NO.
500
10
10
Aluminium
0.11
ATAR1005
1000
10
10
Aluminium
0.20
ATAR1010
500
16
16
Aluminium
0.29
ATAR1605
1000
16
16
Aluminium
0.58
ATAR1610
1500
16
16
Aluminium
0.87
ATAR1615
2000
16
16
Aluminium
1.16
ATAR1620
2500
16
16
Aluminium
1.45
ATAR1625
3000
16
16
Aluminium
1.74
ATAR1630

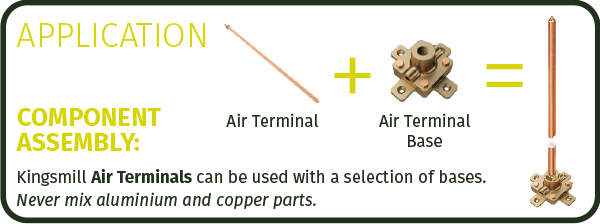

Application:
