Product Information:
Surge protection device for all types of low voltage electric and electronic equipment rated up to 48 volts (nominal).
Features:
- Pluggable module
- Visual fault signalling
- Use on systems up to 48 volts
Benefits: Middle conductor separated from protective earth via GDT.
Standards: EN 61643-21 (Surge Protection Devices).
Application: Install close to protected equipment in low voltage power circuits.
More Information:
Where low voltage, data, and telecom lines enter and exit the building, they must also be included in the Lightning Protection System.
A lightning surge protection device prevents damage to electrical and electronic equipment from transient over-voltage events by blocking or redirecting surge current to the ground instead of passing through the equipment.
These include:
- Electromagnetic shielding
- Telephone lines
- Data communication lines
- Instrumentation, control, signalling lines
- Coaxial lines for CCTV, TV, & antenna cables
Field based electronic equipment also need to be protected.
Electrical Specification:
| Order number | KM-DP-048-V/1-F16 |
| Connection (input - output) | | teminals - terminals |
| Nominal voltage | Un | 48V AC |
| Maximum operating voltage | Uc | 60V AC / 60V DC |
| Nominal load current | IL | 16A |
| C2 Nominal discharge current (8/20μs) per core | In | 2kA |
| C2 Voltage protection level mode core-core at ln | Up | 370V |
| C2 Voltage protection level mode core-PE at ln | Up | 750V |
| Test voltage L+ - L- / L+ (L-) - PE / M - PE | | 4kV |
| Voltage protection level L+ - L- | | 0.37kV |
| Voltage protection level L+ (L-) - PE / M-PE | | 0.75kV |
| Maximum overcurrent protection | | 16A gL/gG or B 16A |
| Response time L+ - L- | | 25ns |
| Response time L+ (L-) - PE / M-PE | | 100ns |
| Cross-section of connected conductors (solid) (min - max) | | 0.14mm² - 4mm² |
| Cross-section of connected conductors (stranded) (min - max) | | 0.14mm² - 2.5mm² |
| Fault indication | | Red indicator |
| Degree of protection | | IP20 |
| Range of operating temperatures (min - max) | | -40°C - +70°C |
| Mounting | | DIN rail 35mm |
| According to standard | | EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012, EN 61643-11:2012, IEC 61643-11:2011 / T3, C2 |
| ETIM Class | | EC000942 |
| Weight | | 95g (nett), 120g (gross) |
Spare Modules:
Spare modules are available. Replace when the fault indication indicator turns from green to red.
| DESCRIPTION | ORDER NUMBER |
| Spare Module | KM-DP-048-V/1-0 |

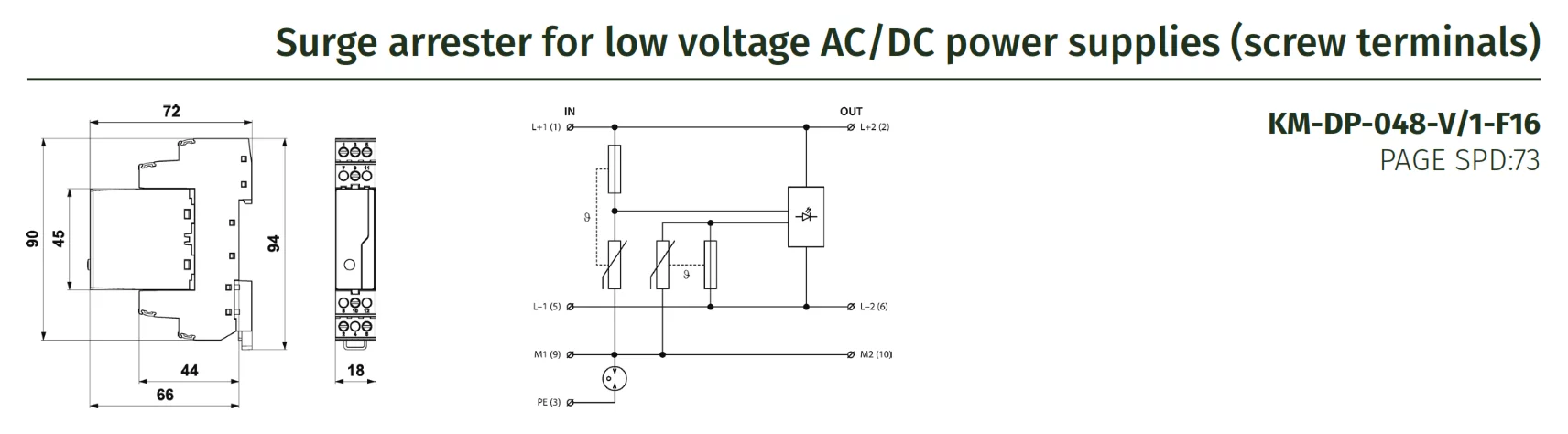

Wiring Diagrams for Surge Arrester for Low Voltage AC/DC Power Supplies:
