Type 3 Surge Arrester (KM3-10-3+1 SC)

Type 3 Surge Arrester (KM3-10-3+1 SC)

SKU: KM3-10-3+1 SC Category: Tag:

System: Three Phase TN-C, TN-S, TN-C-S, TT/4 Pole

Nominal Voltage: 230V AC



Download PDF

SKU: KM3-10-3+1 SC Category: Tag:

Product Information:

Combination of varistor SPD and encapsulated spark gap connected in the 1 + 1 mode. Use in TN-C, TN-S, TN-C-S, and TT systems on the boundary of LPZ2 and LPZ3. Locate as close as possible to the equipment to be protected.

Suitable for houses, commercial and industrial buildings.

Kingsmill fully coordinated mains devices to provide complete protection from entry point to equipment.

Features:

  • Remote signalling
  • Reversible installation
  • Biconnect terminals
  • Locking pluggable modules
  • Optical lifetime status indication

Benefits: No follow-through current. No leakage current. Coordinated range (install in close proximity to each other).

Standards: BS:EN 62305 (Lightning Protection) and EN 61643-11 (Surge Protection Devices).

LPL I + II and LPL III + IV
System: Three Phase TN-C, TN-S, TN-C-S, and TT
Location: Boundary of LPZ2 and LPZ3 (if the electronic equipment is >5m away from SDB)

More Information:

A lightning surge protection device prevents damage to electrical and electronic equipment from transient over-voltage events by blocking or redirecting surge current to the ground instead of passing through the equipment. In a well -designed system, it is important that for each building, both the incoming and outgoing circuits are protected by surge protection devices (where the cables enter and exit the building).

This includes:

  • Mains power supplies – including UPS
  • Telephone lines
  • Data communication lines
  • Instrumentation, control, signaling lines
  • Coaxial lines for CCTV, TV, & antenna cables

Field based electronic equipment also need to be protected.

PHASE
EARTHING SYSTEM
POLES
PART NO.
Three
TN-C / TN-S
TN-C-S / TT
4
KM3-10-3+1 SC

Spare Modules:

Spare modules are available. Replace when fault indication indicator turns from green to red

DESCRIPTION
ORDER NUMBER
Spare Module L-N
KM3-10
Spare Module N-PE
KM3-NPE

Electrical Specifications:

Order number
KM3-10-3+1 SC
System
Three phase TN-C, TN-S, TN-C-S, TT/4 pole
Nominal voltageUn
230V AC
Nominal voltageUO
230V/400V AC ± 10%
Maximum operating voltage L-NUc
275V AC
Maximum operating voltage N-PEUc
255V AC
Nominal discharge current (8/20μs) L-NIn
5kA
Maximum discharge current (8/20μs) N-PEImax
10kA
Test voltage L-NUoc
10kV
Test voltage N-PEUoc
20kV
Voltage protection levelUp
1kV
Voltage protection level mode L-N/N-PEUp
1.5kV
Maximum overcurrent protection
63A gL/gG or C 63A
Response time L-Nta
25ns
Response time N-PEta
100ns
Cross-section of connected conductors solid (min - max)
1mm² - 35mm²
Cross-section of connected conductors stranded (min - max)
1mm² - 25mm²
Fault indication L-N
Red indication field
Fault indication N-PE
No
Remote indication
Potential-free change-over contact
Remote indication contacts
250V/0.5A AC, 250V/0.1A DC
Cross-section of remote indication conductors
1.5mm²
Degree of protection
IP20
Range of operating temperatures (min - max)
-40°C - +80°C
Mounting
DIN rail 35mm
According to standard
EN 61643-11:2012, IEC 61643-11:2011 / T3
Weight
395g (nett), 440g (gross)

LPL:

LPL I + II and LPL III + IV
SYSTEM:SINGLE PHASE TN-C, TN-S, TN-C-S and TT
LOCATION:BOUNDARY of LPZ2 & LPZ3 (if the electronic equipment is >5m away from SDB)

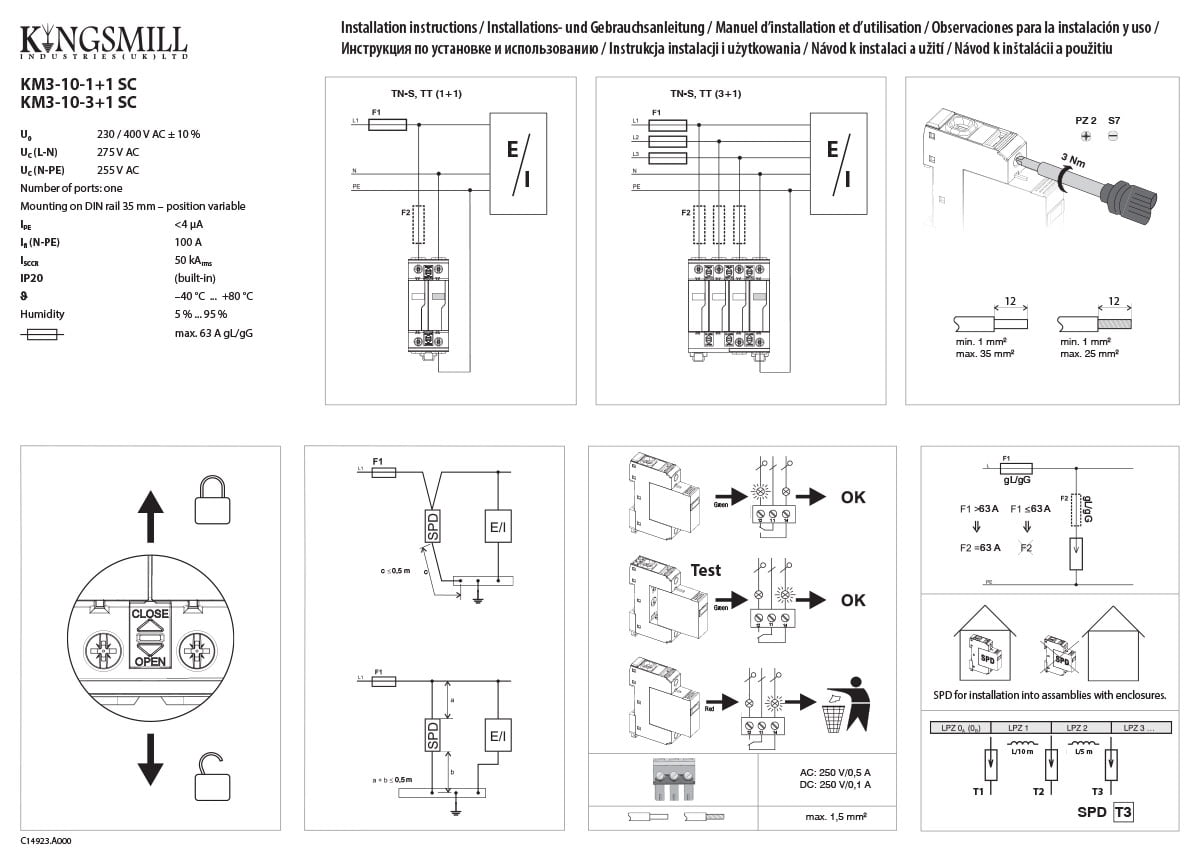

Click the Image below to Download Installation Guide PDF:
C14923 SPD Installation Guide
