Type 3 Surge Protection Module

Type 3 Surge Protection Module

SKU: KM3-275A Category: Tag:

System: TN-C / TN-S / TN-C-S / TT

Nominal Voltage: 230V AC

Download PDF

SKU: KM3-275A Category: Tag:

Product Information:

Compact Type 3 Surge Arrester for final circuit protection. Install close to low voltage equipment for additional protection. Use with single-phase power supply systems.

Provides audible fault indication.

Features:

  • Compact design
  • Fits in a wall socket
  • Simple installation
  • Audible fault indication
  • Equipment protection up to 5m from device on connected circuit
  • Suitable up to 16A circuits

Benefits: Can be fitted in ducts, trunking or flush type wiring boxes. Provides “fine” protection to individual sockets or circuits

Standards: BS:EN 62305 (Lightning Protection) and EN 61643-11 (Surge Protection Devices).

LPL I + II and LPL III + IV
System: Single Phase TN-C, TN-S, TN-C-S and TT
Location: Boundary of LPZ2 and LPZ3 (if the electronic equipment is >5m away from SDB)

More Information:

A lightning surge protection device prevents damage to electrical and electronic equipment from transien over-voltage events by blocking or redirecting surge current to the ground instead of passing through the equipment.. In a well -designed system, it is important that for each building, both the incoming and outgoing circuits are protected by surge protection devices (where the cables enter and exit the building).

This includes:

  • Mains power supplies – including UPS
  • Telephone lines
  • Data communication lines
  • Instrumentation, control, signaling lines
  • Coaxial lines for CCTV, TV, & antenna cables

Field based electronic equipment also need to be protected.

PHASE
EARTHING SYSTEM
POLES
PART NO.
OneTN-C / TN-S / TN-C-S / TTN/AKM3-275A

Electrical Specifications:

Order number
KM3-275-A
System
TN-C / TN-S / TN-C-S / TT
Nominal voltageUn
230V AC
Maximum operating voltageUc
275V AC
Nominal discharge current (8/20μs) L-N/N-PEIn
2kA
Test voltage L-N/N-PE/L-PEUoc
4kV
Voltage protection level L-N/N-PE/L-PEUp
1.5kV
Short-circuit current ratingISCCR
1.5kA
Maximum overcurrent protection
B 16A
Response time L-Nta
25ns
Response time N-PEta
100ns
Fault indication
acoustic signalling
Degree of protection
IP20
Range of operating temperatures (min - max)
-20°C - +70°C
Mounting
installation box
According to standard
EN 61643-11:2012, IEC 61643-11:2011 / T3
Weight
20g (nett), 40g (gross)

LPL:

LPL I + II and LPL III + IV
SYSTEM:SINGLE PHASE TN-C, TN-S, TN-C-S and TT
LOCATION:BOUNDARY of LPZ2 & LPZ3 (if the electronic equipment is >5m away from SDB)

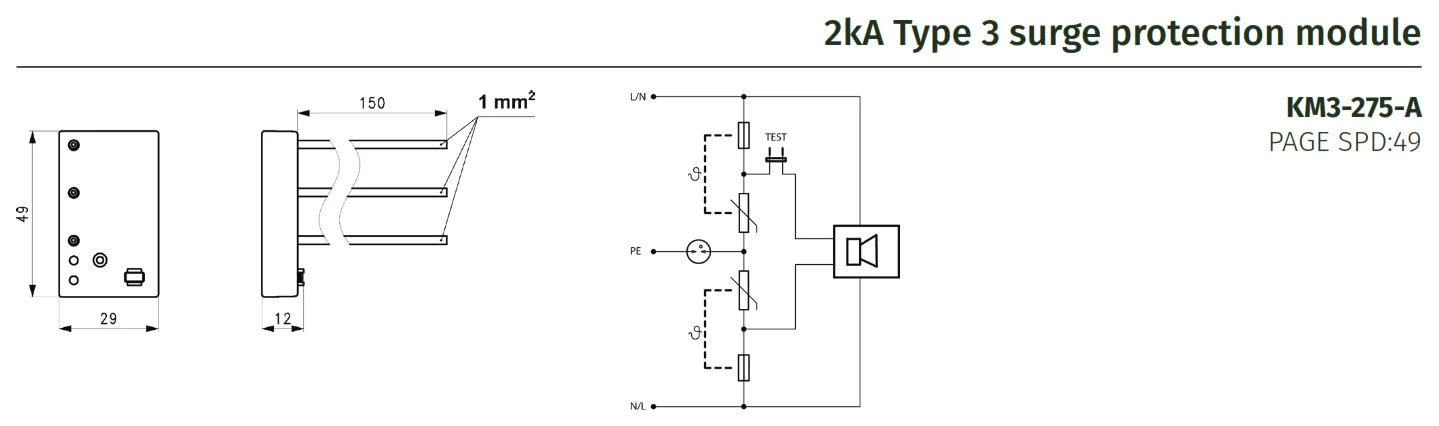

Wiring Diagrams for Type 3 Surge Protection Module:
