Product Information:
Use the Kingsmill KP series of products for telephone and signal line protection for signals utilising the KRONETM TM is a smal TM like to the power of 2 in notation, it means trade mark LSA-PLUS® 10-way connection blocks.
Features:
- Remote signalling
- Reversible installation
- Biconnect terminals
- Locking pluggable modules
- Optical lifetime status indication
Benefits: No follow-through current, no leakage current, and coordinated range (install in close proximity to each other).
Standards: EN 61643-12 (surge protection devices), AS/NZS 1768
More Information:
A surge or lightning protection device prevents damage to electrical and electronic equipment from transient over-voltage events by blocking or redirecting surge current to the ground instead of passing through the equipment.
Two Stages of Protection:
Standard KRONETM TM is a smal TM like to the power of 2 in notation, it means trade mark surge arresters only provide a single stage of protection which cannot prevent equipment from being exposed to excessive voltages during a surge event. The KP series of products utilise a two stage protection approach that keeps the voltage let through to an absolute minimum.
Telephone and Signal Protection:
The KMKP-10 devices are designed for protecting PSTN and digital PABX signals with a maximum line voltage of up to 200V. They protect all common signalling systems.
Electrical Specification:
| Order number | KMKP-1 | | KMKP-10 |
|---|
| Connection type | | in series | |
| Modes of protection | | | transverse and common mode | |
| Number of lines | | 1 pair | | 10 pairs |
| Maximum continuous voltage (AC/DC) | Uc | | 140V AC/200V DC | |
| Maximum discharge current (8/20μs) | Imax | | 5kA per line (10kA common mode) | |
| Impulse durability | | | C2 10 x 5kA 8/20μs | |
| Maximum load current | IL | | 250mA | |
| L-L Voltage protection level at 1kV/μs | Up | | 220V | |
| L-L Voltage protection level at 100V/s | | | 235V | |
| L-PE Voltage protection level at 1kV/μs | Up | | 350V | |
| L-PE Voltage protection level at 3kA 8/20μs | Up | | 600V | |
| L-PE Voltage protection level at 100V/s | | | 230V | |
| AC durability | | | 5 x 1s, 1A rms | |
| Overstressed fault mode) | | | Mode 3 (open circuit) | |
| Response time | ta | | <5ns | |
| Line resistance | | | 2.7Ω | |
| L-L capacitance | | | 18pF | |
| L-PE capacitance | | | 4.5pF | |
| Insertion loss @ 150Ω | | | <0.5dB (<1MHz) | |
| 3dB frequency @ 150Ω | | | 70MHz | |
Mechanical Specification:
| Order number | KMKP-1 | | KMKP-10 |
|---|
| Degree of protection | | IP20 |
| Range of operating temperatures (min - max) | | -40°C - +85°C | |
| Humidity range | | 5% to 95% non-condensing | |
| Mounting | | KRONE LSA-PLUS® | |
| Earthing | Additional earth bar for KMKP-1 (KM-KP-EB) | | - |
| According to standard | | EN 61643-21:2012, AS/NZS 1768:2007, UL 1449 3rd edition & UL 497B, ITU-T K.44:2012, AS/CA
S008:2010, AS/NZS 4117:1999 | |
| Weight | 6.5g | 70MHz | 150g |
Standards:
| Standards | KMKP-1 | | KMKP-10 |
|---|
| EN 61643-21:2012 | | SPD connected to telecommunications and signalling networks - Cat C2, D1 | |
| AS/NZS 1768:2007 | | Signalling/ telecommunications surge protection | |
| UL 1449 3rd edition & UL 497B | | Protectors for data communications and fire-alarm circuits | |
| ITU-T K.44:2012 | | Resistibility tests for telecommunication equipment exposed to overvoltages and overcurrents | |
| AS/CA S008:2010 | | Requirements for Customer Cabling Products | |
| AS/NZS 4117:1999 | | Surge Protective Devices for Telecommunications Applications | |
Ordering Information:
| MODEL | SIGNAL TYPE | ORDERING CODES |
|---|
| KMKP-x | PSTN / PABX | KMKP-1 (1 pair) / KMKP-10(10 pair) |

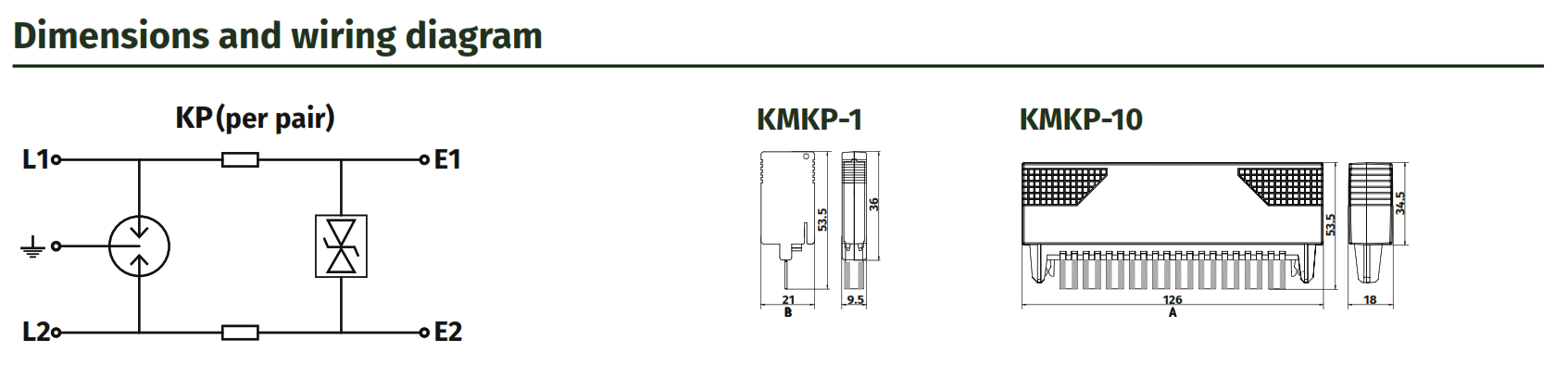

Dimensions and Wiring Diagram for KRONE LSA-Plus® Telephone Signal Protection :
