Square Clamps (Flat Conductor/Hot Stamped Design)

Square Clamps (Flat Conductor/Hot Stamped Design)

SKU: SQCxxx Category: Tag:
Clear
Download PDF

SKU: SQCxxx Category: Tag:

Product Information:

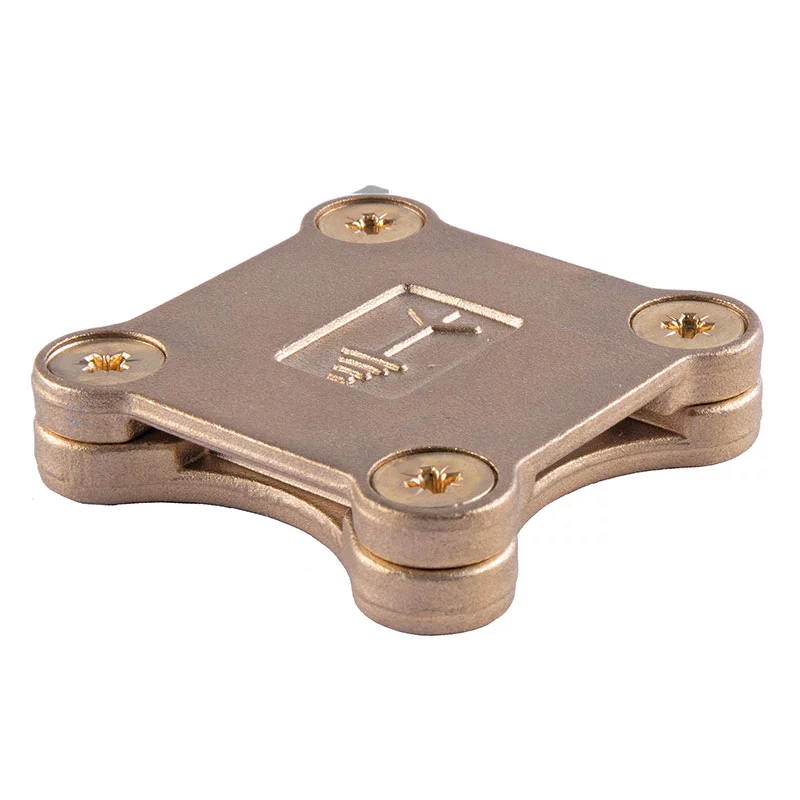

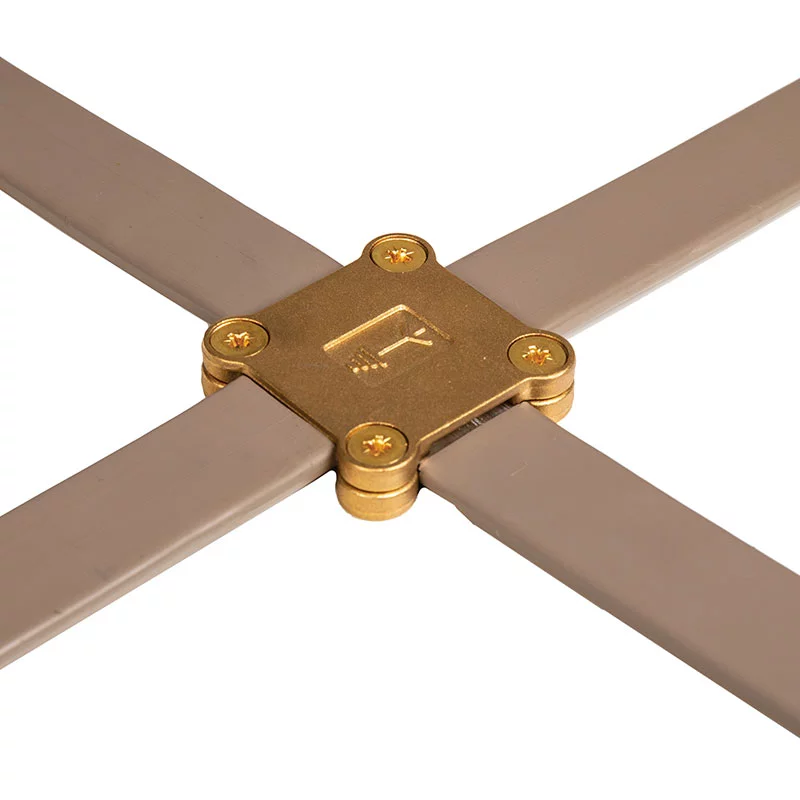

Square Clamps are designed for a four-way connection and are suitable for crossing over tapes, straight through joints, or ‘T’ connections to form a continuous network of tapes. Countersunk hole in the base for fixing the clamp in place.

BS62305 hot-stamped design is a new feature to our original Square Clamps (Flat Conductor).

Features:

Material: Aluminium/Copper Alloy
Standard: BS:EN 62561-1, Class H
Tightening torque: 6Nm

More Information:

Square Clamps permit neat joints on PVC covered conductors due to the recessed lid.

When choosing a connector it is important to ensure:

  • The connector is mechanically robust.
  • The connector is selected according to its application.
  • The connector is rated for its application.
  • To avoid bimetallic corrosion-use a bimetallic connector (do not connect bare copper directly to bare aluminium, or have water run-off from copper, fall into aluminium).

Galvanic corrosion happens when there is a potential difference between dissimilar metals:

  • When the materials are in contact in the presence of an electrolyte, corrosion occurs. One metal becomes the anode, the other the cathode. The anode will tend to go into solution and therefore corrode. The electrolyte can be water with impurities from the air.
  • In the instance of water run-off from copper- the water carries fine copper corrosion particles which, when they drop on to aluminium or zinc, may result in corrosion. The direct contact of the dissimilar metals are not required for corrosion to occur in such a case.
CONDUCTOR SIZE (mm)
CONDUCTOR MATERIAL
WEIGHT (kg)
PART NO.
25 x 3
Aluminium
0.05
SQCAF253
25 x 3
Copper
0.15
SQCCF253
25 x 6
Copper
0.19
SQCCF256
31 x 3
Copper
0.22
SQCCF313
31 x 6
Copper
0.22
SQCCF316
40 x 6
Copper
0.79
SQCCF406
50 x 6
Copper
0.35
SQCCF506

Fixings:
