Product Information:

Adhesive Clips are used where no mechanical fixing method can be achieved or allowed. The base has a threaded hole and is supplied with a fixing screw to suit our Non-Metallic DC Clip. The base is fixed using the adhesive peel-off strip and must be applied to a clean and dust-free surface.

Please use the Surface Primer to clean the surface (Part No. SP01).

Features:

Material: UV stabilised polypropylene
Available in different colors.

More Information:

We recommend the use of a suitable Surface Primer (such as Norbond N2292) to clean the surface that the Adhesive Clip is being adhered to.

When choosing a connector it is important to ensure:

  • The connector is mechanically robust.
  • The connector is selected according to its application.
  • The connector is rated for its application.

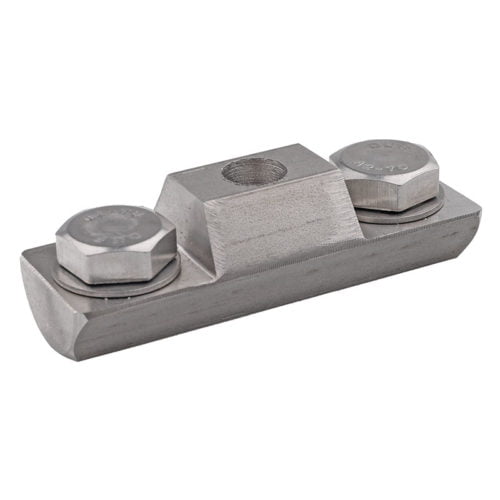

  • To avoid bimetallic corrosion-use a bimetallic connector (do not connect bare copper directly to bare aluminium, or have water run-off from copper, fall into aluminium).

Galvanic corrosion happens when there is a potential difference between dissimilar metals:

  • When the materials are in contact in the presence of an electrolyte, corrosion occurs. One metal becomes the anode, the other the cathode. The anode will tend to go into solution and therefore corrode. The electrolyte can be water with impurities from the air.
  • In the instance of water run-off from copper- the water carries fine copper corrosion particles which, when they drop on to aluminium or zinc, may result in corrosion. The direct contact of the dissimilar metals are not required for corrosion to occur in such a case.
CONDUCTOR SIZE (mm)
CONDUCTORCOLOUR
WEIGHT (kg)
PART NO.
25 x 3
BareBrown
0.03
PCBN253B/AD
25 x 3
BareGrey
0.03
PCGY253B/AD
25 x 3
PVC CoveredBrown
0.03
PCBN253P/AD
25 x 3
PVC CoveredGrey
0.03
PCGY253P/AD
25 x 3
PVC CoveredBlack
0.03
PCBL253P/AD
25 x 3
PVC CoveredStone
0.03
PCST253P/AD
25 x 3
PVC CoveredWhite
0.03
PCWH253P/AD
