Product Information:

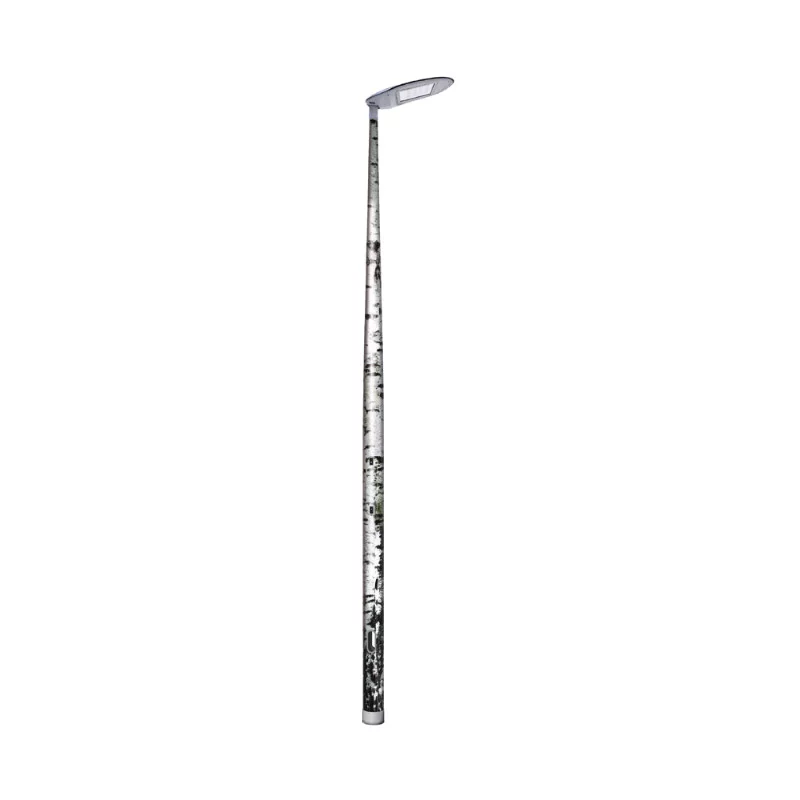

DESIGNPOLE offers a ground-breaking opportunity for customization with the addition of graphic images directly to the lighting column, protected from damage by the outer gel coat. DESIGNPOLE can also be illuminated from within, providing attractive landscaping features and a supplementary light source.

Kingsmill Lighting Columns are lightweight, strong, durable, corrosion-resistant, easy to install, and 100% recyclable. They comply with BS:EN 40-7.

They offer a perfect foundation for innovative projects, with potential for electric vehicle charging points, public safety features, solar PV panels, and added intelligence.

Features:

  • Ground-breaking customization – the addition of graphic images
  • Manufacturing process means the pattern is protected from damage and vandalism.
  • Potential for internal lighting
  • Non-conductive
  • High mechanical resistance

More Information:

Advantages of Composite Columns – Composite lighting columns have many advantages over conventional metal columns, due to their manufacturing materials and process. Kingsmill columns are constructed from glass fiber polymer with a gel coating protecting the entire column. This produces a lightweight structure that is easy to install and extremely durable, perfect for areas with a high corrosion potential.

Aesthetics– Unlike traditional steel lighting columns, composite columns offer a wide range of customization options, not least color choice. Manufactured as standard to resemble conventional metal columns, the Kingsmill lighting column can be produced in a wide range of colors to suit any aesthetic.

Not only can the columns be supplied colored, but the Kingsmill lighting column offers the revolutionary possibility to add graphics to the body of the column. With endless possibilities for design, the column offers boundless flexibility and personalization to suit any environment.

Corrosion Resistance – Kingsmill lighting columns are highly corrosion resistant due to their composite materials and gel coating. This provides a smooth, UV resistant surface that is easy to clean. Dirt, glue residue, and graffiti are all easy to remove from the column as acetone solvents don’t damage the surface. The high-quality materials used in production ensure UV resistance, preventing sun damage to the column and any added graphics.

Due to the fact that the composite column has no metal parts, especially if root mounted, the Kingsmill Lighting Column is rust and corrosion resistant, additionally resisting the effects of road salts, animal urine, and traffic pollution. This leads to a column lifespan of 40+ years.

Electrical Safety – The electrical components inside the column are protected as the column has a reduced dew point, stopping icing and preventing moisture from damaging the internal electrical components. When combined with the non-conductive nature of the column itself, this produces a safe environment for electrical components with minimal risk of electrocution in the event of an electrical fault.

Vandal Resistance – Kingsmill Lighting Columns are made from composite material. Unlike traditional metal columns, they have no scrap value. This acts as a powerful theft deterrent, including the access door.

The columns are also graffiti and vandal resistant. Paint and adhesives are easily removed with acetone solvent that will not damage the gel coat. Our composite columns resist fire and mechanical damage potentially caused by malicious vandalism.

Logistics – The composite materials used to produce the lighting column result in a much more lightweight structure than a traditional steel pole – an 8-meter column weighs only 50kg.

Columns can be easily handled by two people, reducing the necessity for large installation equipment and shortening the installation times. This in turn vastly reduces the installation cost compared to conventional metal columns.

When combined with the reduced transportation cost and smaller foundations required to mount the columns, the advantages of composite lighting columns over metal poles become clear.

Environment – Manufactured from glass fiber polymer, the Kingsmill Lighting Column is 100% recyclable. Manufacturing methods also have low CO2 emissions, resulting in minimal environmental impact.

Additionally, due to the ease of transportation and assembly of the columns, the environmental impact of installing them is also significantly lower than traditional lighting columns.

Since they are made of GFP material, the lighting columns do not cause interference to radio waves, microwaves, radars, or other airport infrastructure. This makes them the perfect solution for such projects, minimizing the impact of the lighting chosen on necessary infrastructure.

DESIGNPOLE:

COLUMN HEIGHT (m)
PART NO.
ROOT MOUNTED
FLANGE BASE
3
KMSKPW-D3.0
KMSKPF-D3.0
4
KMSKPW-D4.0
KMSKPF-D4.0
5
KMSKPW-D5.0
KMSKPF-D5.0
6
KMSKPW-D6.0
KMSKPF-D6.0
7
KMSKPW-D7.0
KMSKPF-D7.0
8
KMSKPW-D8.0
KMSKPF-D8.0
9
KMSKPW-D9.0
KMSKPF-D9.0
10
KMSKPW-D10.0
KMSKPF-D10.0
11
-
KMSKPF-D11.0
12
-
KMSKPF-D12.0

A ground-breaking opportunity for customisation with the addition of graphic images directly to the lighting column.

Can be illuminated from within, providing attractive landscaping features and a supplementary light source.

To specify a colour, add the required RAL number as a suffix eg KMSKPW9.0-7032. Contact us to order a customised graphic.

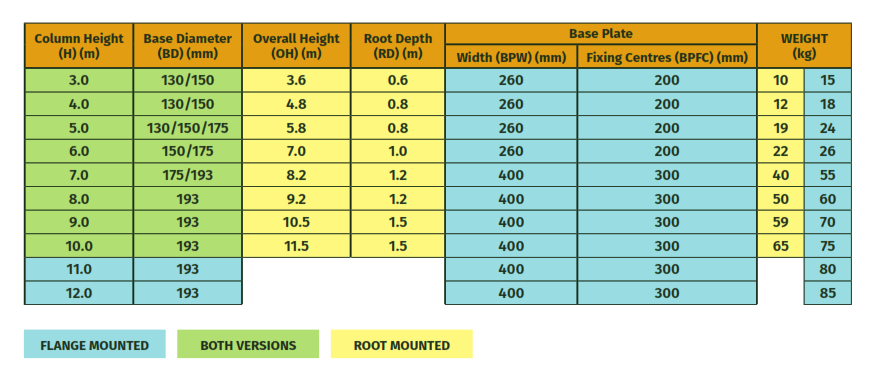

Column Dimensions:

All columns are manufactured to conform with BS:EN 40-7:2002 regulations with root mounted columns manufactured in line with UK standard planting depths, as shown in the table.

Column Mounting Options:
Our lighting columns can be installed either directly in the ground (root mounted) or on a flange base. A range of factors can affect the mounting type decision, including wind loading calculations, durability, ease of installation, and the need to access the top of the column regularly. We can assist in designing the most suitable column for each application.

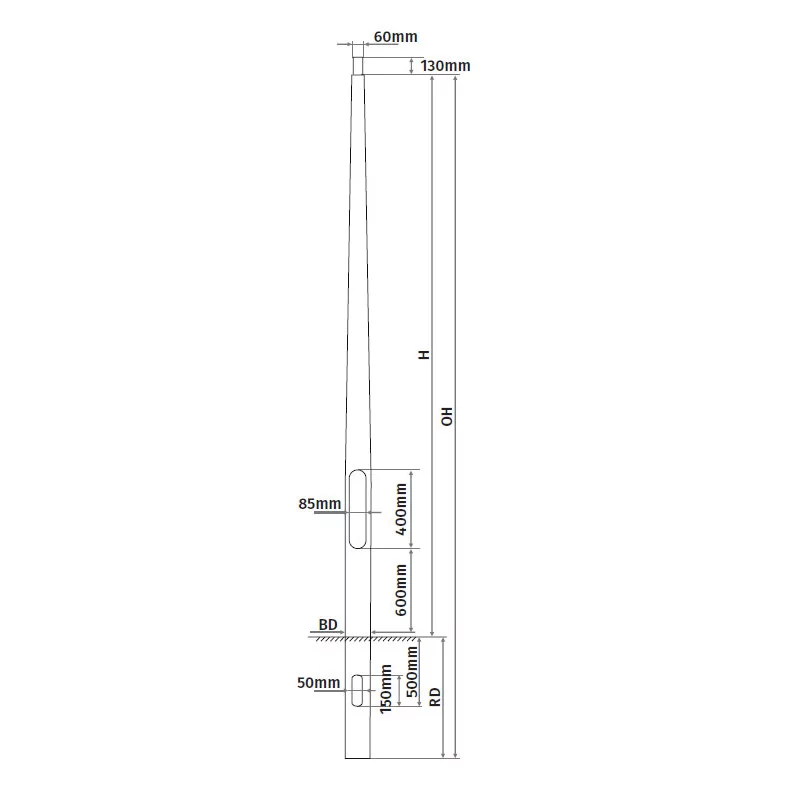

Root Mounted Columns:
Installing a composite lighting column directly into the ground has many advantages:

  • They do not corrode like steel or aluminium
  • There is a low installation cost, with no need for a concrete foundation
  • No need for a metal base plate
  • Smaller foundation requirement
  • Reduced dew point, preventing moisture from affecting contained electrical systems

Without the need for a pre-prepared concrete and metal foundation, there is no risk of electrical conduction to nearby structures or people, making root mounting a great choice for public areas, especially those accessed by children on a regular basis such as parks.

Root mounted columns are installed into a suitably sized hole or socket in the ground, which is then back-filled. Alternatively, they can be installed into a socket prepared in the ground, slightly larger than the column diameter, and then back-filled.

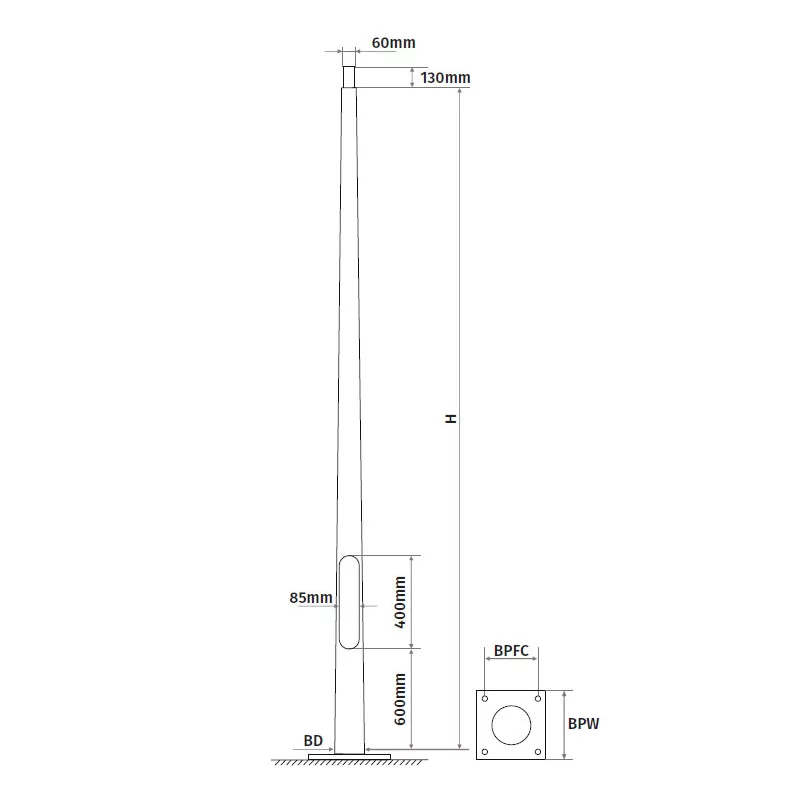

Flange Base Mounted Columns:

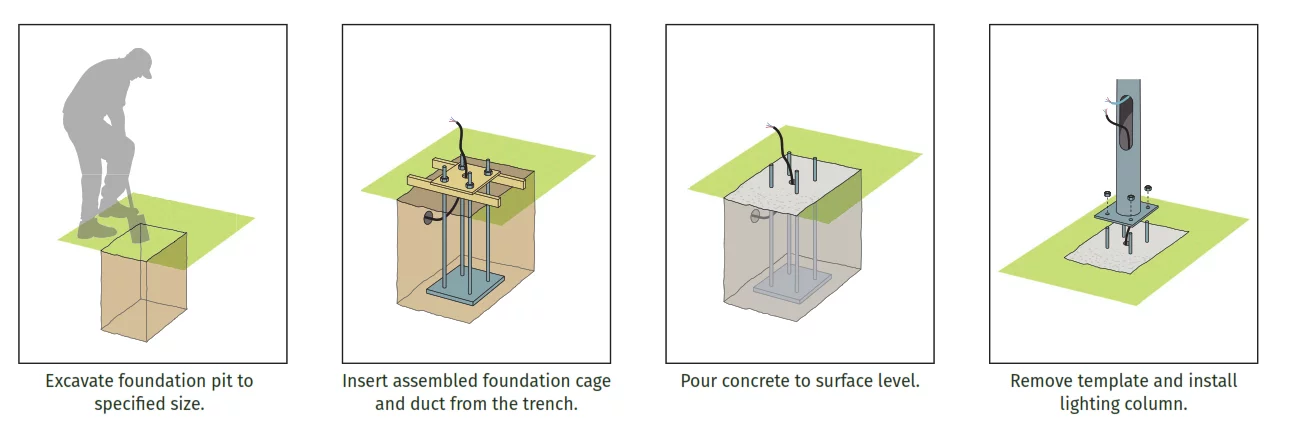

In some areas, root mounting is not suitable for lighting columns and a flange base can be used instead. This involves a concrete foundation and hence a longer installation time, but can be particularly useful in built-up areas including rail platforms, multi-story car parks, and parapets.
