Cable Test Clamp

Cable Test Clamp

SKU: TCxx Category: Tag:

Conductor Material: Copper
Weight (kg): 0.40

Clear
Download PDF

SKU: TCxx Category: Tag:

Product Information:

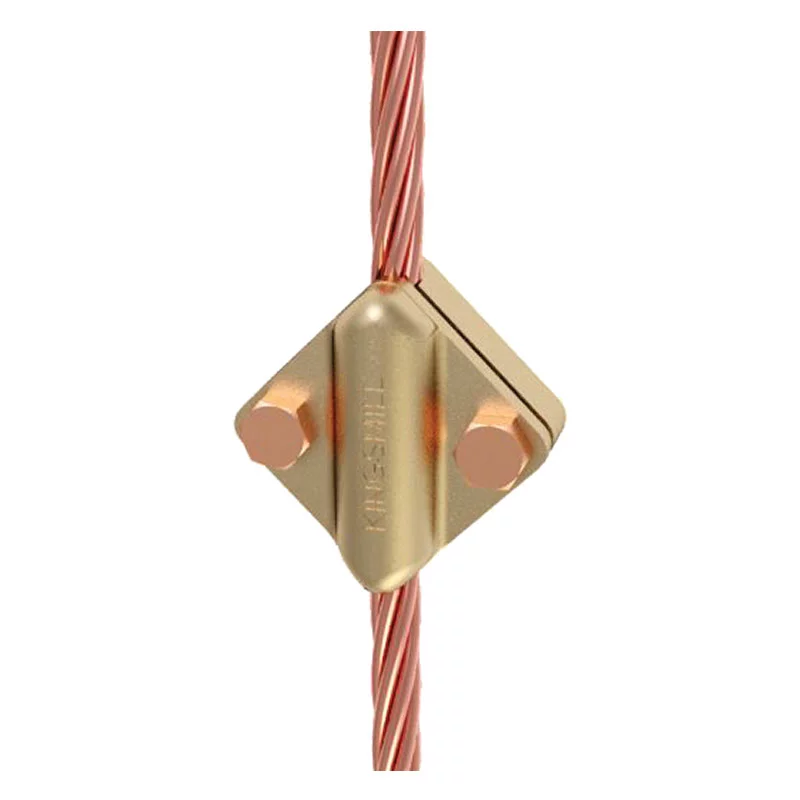

Cable Test Clamps are used to form a disconnecting joint between the Down Conductor System and the Earthing System. The conductors overlap end to end and secure together using two bolts.

Features:

Material: Gunmetal
Standard: BS:EN 62561-1, Class H
Tightening Torque: 6Nm

More Information:

When choosing a connector it is important to ensure:

  • The connector is mechanically robust.
  • The connector is selected according to its application.
  • The connector is rated for its application.
  • To avoid bimetallic corrosion-use a bimetallic connector (do not connect bare copper directly to bare aluminium, or have water run-off from copper, fall into aluminium).

Galvanic corrosion happens when there is a potential difference between dissimilar metals:

  • When the materials are in contact in the presence of an electrolyte, corrosion occurs. One metal becomes the anode, the other the cathode. The anode will tend to go into solution and therefore corrode. The electrolyte can be water with impurities from the air.
  • In the instance of water run-off from copper- the water carries fine copper corrosion particles which, when they drop on to aluminium or zinc, may result in corrosion. The direct contact of the dissimilar metals are not required for corrosion to occur in such a case.
CONDUCTOR SIZE (mm)
CONDUCTOR MATERIAL
WEIGHT (kg)
PART NO.
50
Copper
0.40
TC50
70
Copper
0.40
TC7O
90
Copper
0.40
TC9O

Fixings:
