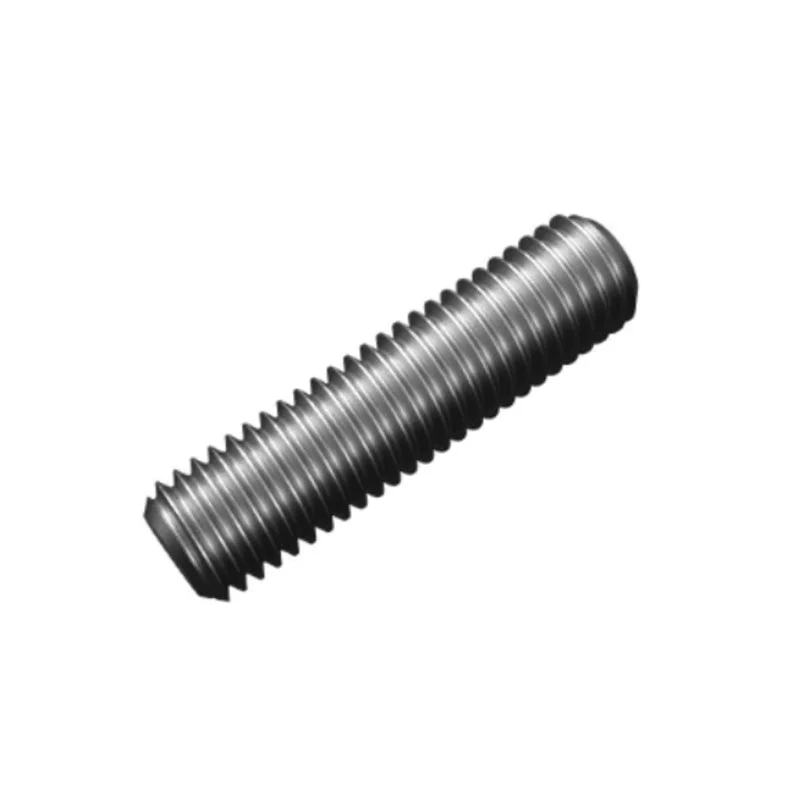

Coupling Dowel (Stainless Steel Earth Rods)

Coupling Dowel (Stainless Steel Earth Rods)

SKU: DWSS10 Category: Tag:

Length (mm): 40

Thread Dia. (mm): 10

Download PDF

SKU: DWSS10 Category: Tag:

Product Information:

Coupling Dowels are used to join Stainless Steel Earth Rods.

Features:

Material: Stainless Steel
Standard: BS 7430

More Information:

Stainless Steel Earth Rods are similar to our Solid Copper Rods but are more anodic than copper, and are useful where galvanic corrosion might occur due to buried dissimilar metals being in close proximity to each other. The current carrying capacity of the Stainless Steel Rod in relation to copper is poor.

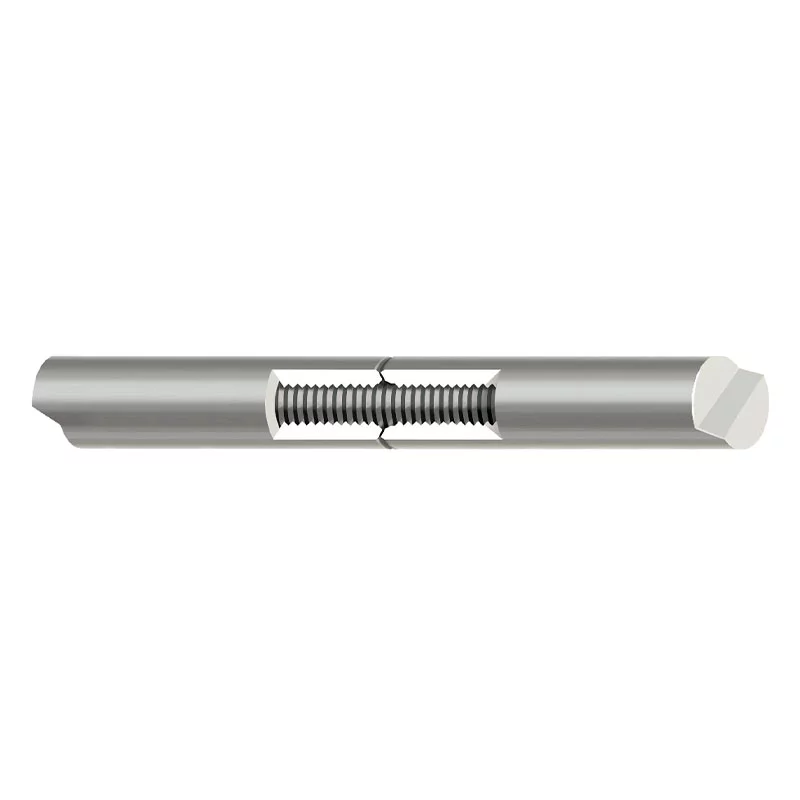

Stainless Steel Earth Rods have a tapped hole at each end which allows them to be joined together by means of a coupling dowel. It can, if required be supplied in different grades randing from 1200mm to 3000mm in length.
They are recommended for clay soils and marine/shore environments.

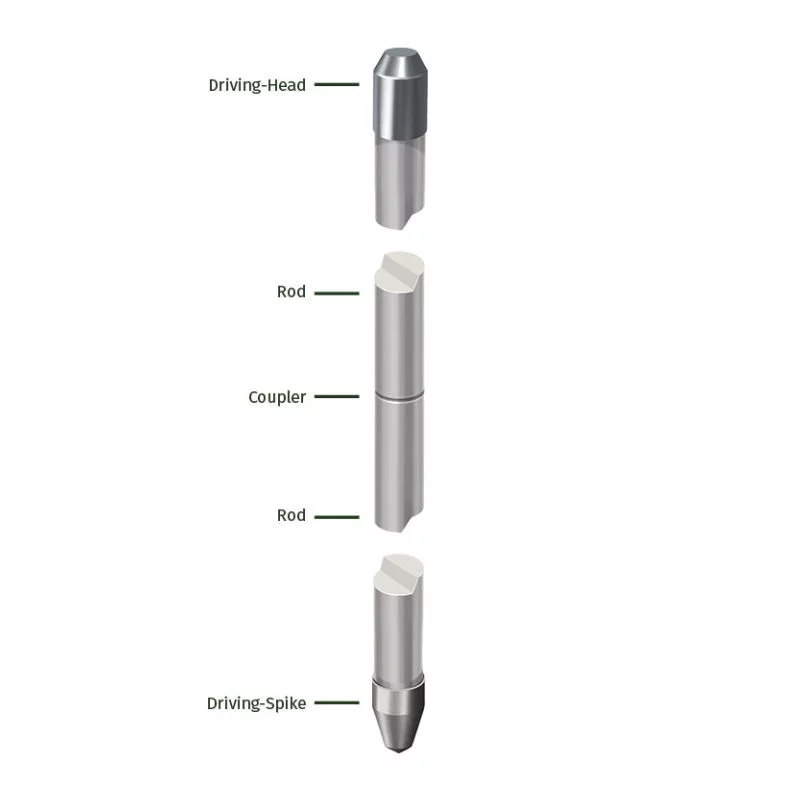

To assemble Kingsmill Stainless Steel Earth Rods to the desired length with Couplings and add a Driving Stud to the top and a Driving Spike to the bottom for safe driving into the ground. (Refer to “How to Install” tab for further information)

For installing lightning earthing system applications, We recommend the use of Copper earth electrode systems due to their inherent low resistivity and corrosion resistance.

Materials used in earthing systems must be able to:

  • withstand mechanical damage,
  • resist corrosion,
  • provide a low impedance path to earth,
  • and carry the maximum fault condition for the application/installation.

For protective earth networks and lightning protection applications our range encompasses:
Copper earth rod, earthing pole, copper bonded ground rod, earth ground rod, earth rod connector, earth rod cover, earth fitting, earthing studs, ground clamps for ground rod, ground pole and grounding post.

Our castings are high quality/high copper content complying to BS 7430 and BS 62561-1. Additional to our range are UL listed copperbond earth rods and exothermic welding.

LENGTH (mm)
THREAD DIA. (mm)
WEIGHT (kg)
PART NO.
40
10
0.02
DWSS10

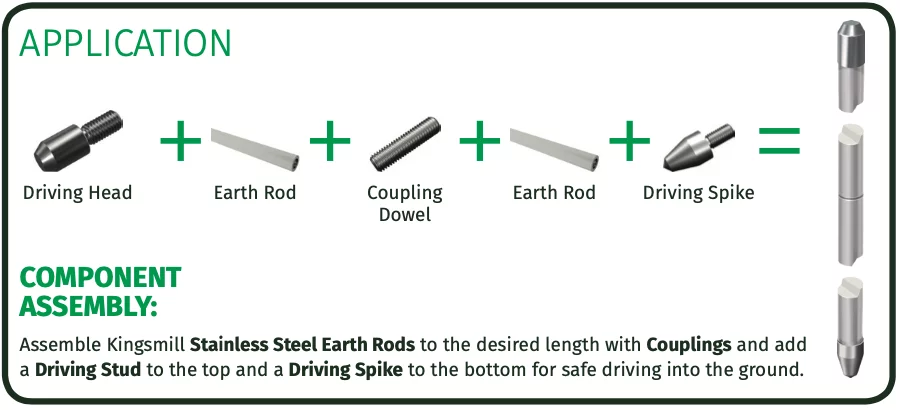

Application:
