Double Pipe/Handrail Bracket

Double Pipe/Handrail Bracket

Clear
Download PDF

Product Information:

The Double Pipe/Handrail Bracket is manufactured from stainless steel and is used in conjunction with Cable Holders having an M8 or M16 threaded insert and Mast Holders having M16 threaded inserts.

Features:

Material: Stainless Steel

More Information:

Can be used in the application of an Interception Mast/Air Terminals. Interception Masts are specially designed to be used with the Kingsmill Insulated Lightning Conductor.

This system is used with objects where there is no possibility to maintain separation, due either to lack of sufficient space or simply for aesthetic reasons. Through using Insulated Lightning Conductor, the Air Terminal can be placed closer to the object to be protected-for example, roof-mounted plant or solar PV panels.

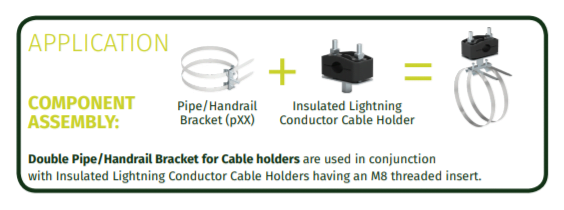

Brackets for use with Cable Holders and accessories with M8 fixings:

BAND DIAMETER (ØE) (mm)THREADED STUDWEIGHT (kg)PART NO.
150 - 300
M8 x 25mm
0.36
KM96700105
≤150
M8 x 25mm
0.32
KM96700205
300 - 500
M8 x 25mm
0.42
KM96700305

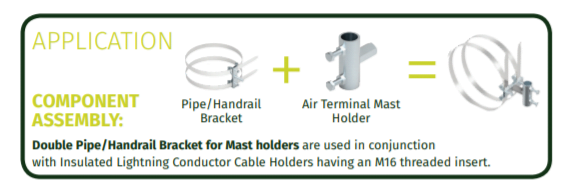

Brackets for use with Mast Holders and accessories with M16 fixings:

BAND DIAMETER (ØE) (mm)THREADED STUDWEIGHT (kg)PART NO.
150 - 300
M16 x 50mm
0.41
KM96701105
≤150
M16 x 50mm
0.38
KM96701205
300 - 500
M16 x 50mm
0.47
KM96701305

Applications:
