Single Pipe/Handrail Bracket

Single Pipe/Handrail Bracket

Download PDF

Product Information:

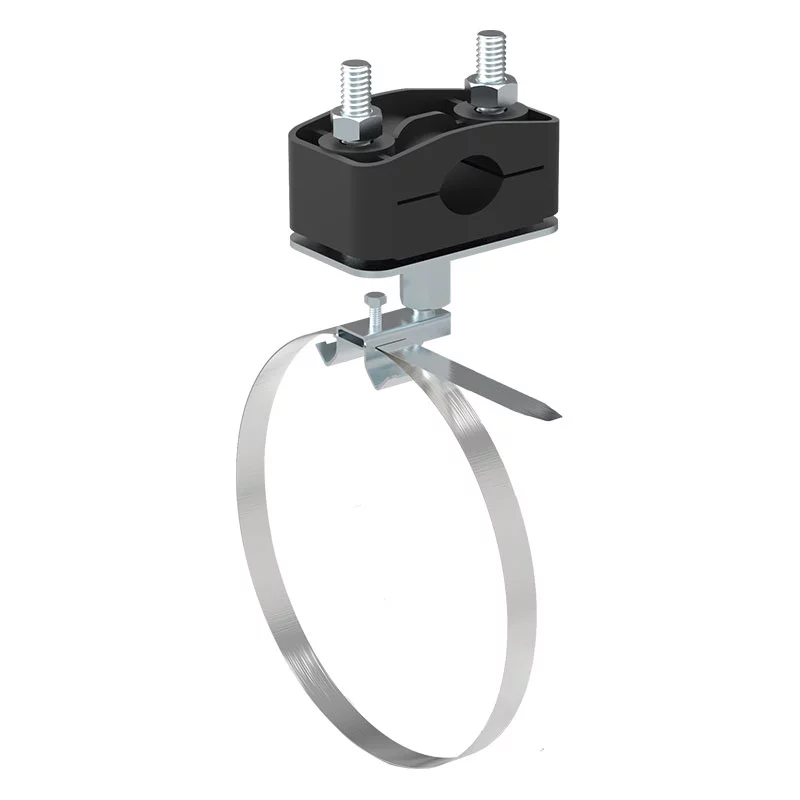

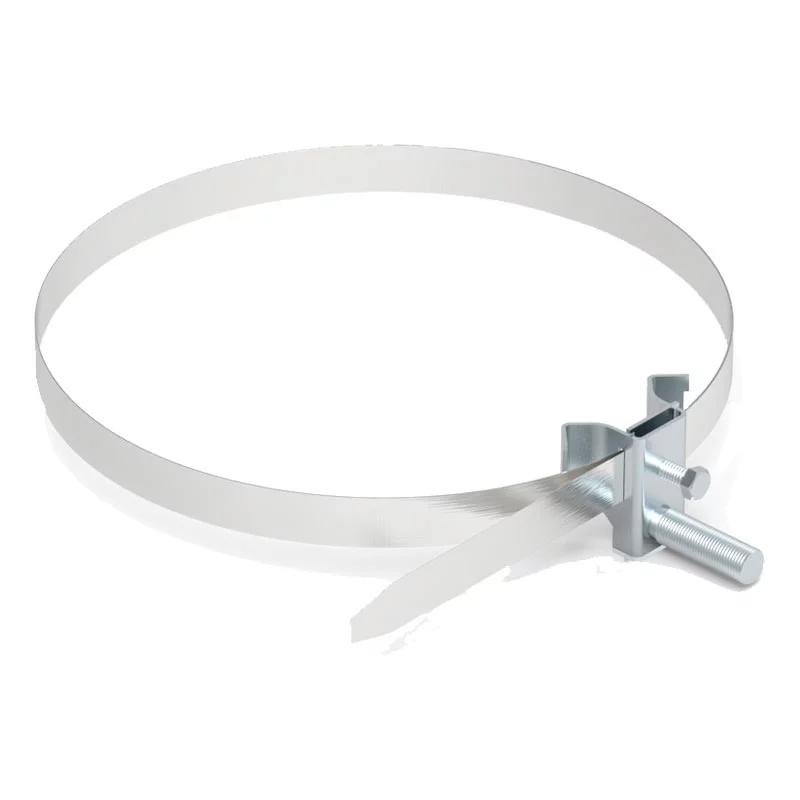

The Single Pipe/Handrail Bracket is manufactured from stainless steel and is used in conjunction with Insulated Lightning Conductor Cable Holders having an M8 or M16 threaded insert and Air Terminal Mast Holders having M16 threaded inserts.

Features:

Material: Stainless Steel

More Information:

Can be used in the application of an Interception Mast/Air Terminals. Interception Masts are specially designed to be used with the Kingsmill Insulated Lightning Conductor.

The Kingsmill Insulated Lightning Conductor System is used with objects where there is no possibility to mantain separation, due either to lack of sufficient space or simply for aesthetic reaons. Through using Insulated Lightning Conductor, the Air Terminal can be placed closer to the object to be protected-for example, roof-mounted plant or solar PV panels.

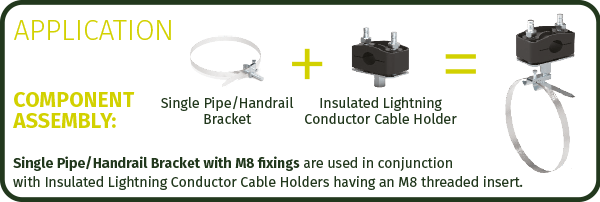

Brackets for use with Cable Holders and accessories with M8 fixings:

BAND DIAMETER (ØE) (mm)THREADED STUD
WEIGHT (kg)
PART NO.
150 - 300M8 x 25mm
0.18
KM97700105
≤150M8 x 25mm
0.16
KM97700205
300 - 500M8 x 25mm
0.21
KM97700305

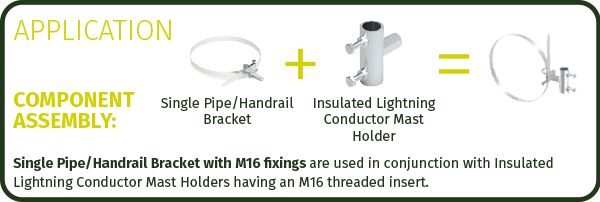

Brackets for use with Mast Holders and accessories with M16 fixings:

BAND DIAMETER (ØE) (mm)THREADED STUD
WEIGHT (kg)
PART NO.
150 - 300M16 x 50mm
0.23
KM97701105
≤150M16 x 50mm
0.21
KM97701205
300 - 500M16 x 50mm
0.26
KM97701305

Applications:
