Flexible Flat Aluminium Braid Bonds

Flexible Flat Aluminium Braid Bonds

SKU: FBAxxx Categories: , ,
Clear
Download PDF

SKU: FBAxxx Categories: , ,

Product Information

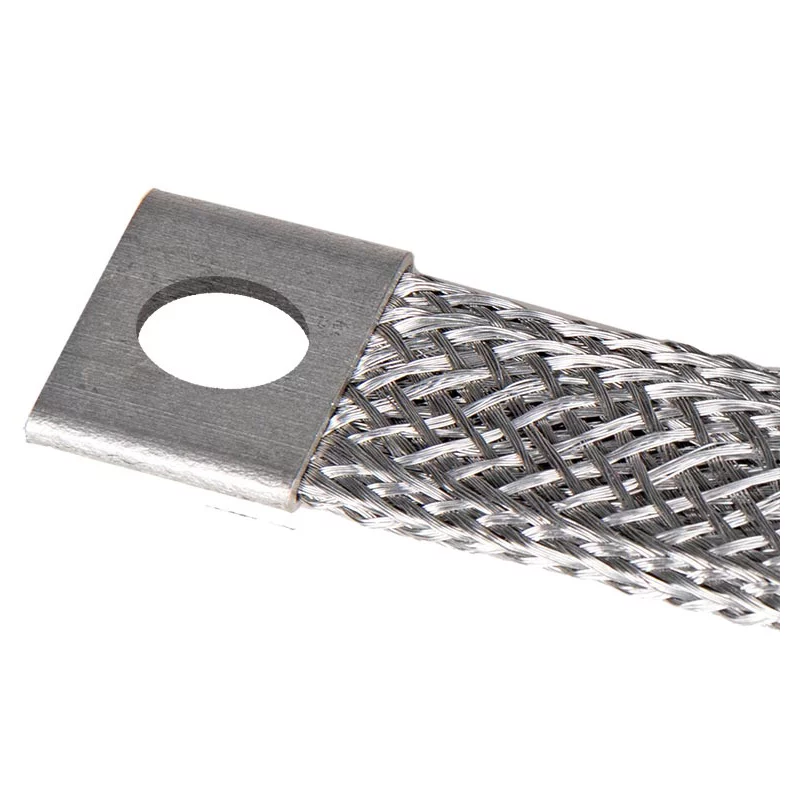

Flexible Aluminium Braid Bonds are used for bonding aluminium cladding into the structural Lightning Protection scheme.

Features:

Material: Aluminium
Standard: BS:EN 13602

More Information:

Other sizes, materials, hole sizes etc. available on request.

An important part of a Lightning Protection System (LPS) is that electrically continuous parts of a structure must be bonded into the Lightning Protection network. The purpose of this bonding is to ensure that, in the event of a lightning discharge, any sparking of flashover of the lightning current to conductive parts of the structure, for example, water pipes, cables, etc are avoided.

DIMENSIONS (mm)
HOLES (A)
LENGTH (B) (mm)
CSA (mm²)
WEIGHT (kg)
PART NO.
30 x 5
M8
200
50
0.03
FBA200/50/9
30 x 5
M8
300
50
0.04
FBA300/50/9
30 x 5
M8
400
50
0.08
FBA400/50/9
30 x 5
M10
200
50
0.03
FBA200/50/11
30 x 5
M10
300
50
0.04
FBA300/50/11
30 x 5
M10
400
50
0.08
FBA400/50/11
32 x 6
M8
200
75
0.06
FBA200/75/9
32 x 6
M8
300
75
0.09
FBA300/75/9
32 x 6
M8
400
75
0.12
FBA400/75/9
32 x 6
M10
200
75
0.06
FBA200/75/11
32 x 6
M10
300
75
0.09
FBA300/75/11
32 x 6
M10
400
75
0.12
FBA400/75/11

Fixings:
