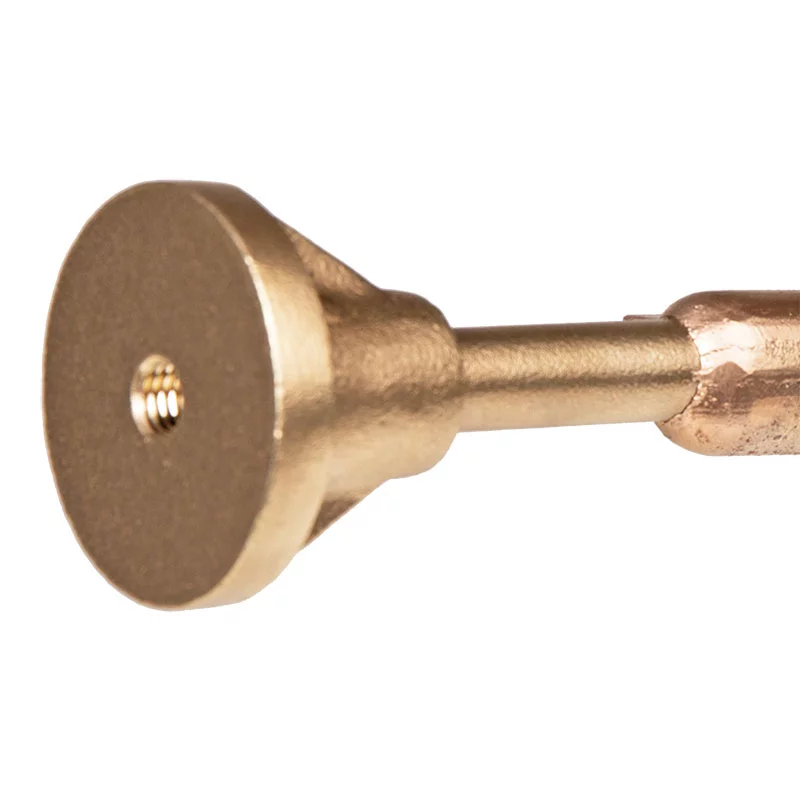

Single Hole Earth Points (with Solid Tail)

Single Hole Earth Points (with Solid Tail)

SKU: EBP1xxx Categories: , ,
Clear
Download PDF

SKU: EBP1xxx Categories: , ,

Product Information:

Single Hole Earth Points (with solid tail) provide bonding points to the reinforcing bar.

Features:

Material: Stainless Steel/Gunmetal
Standard: BS:EN 62561-1 Class H, BS 7430
Tightening torque: 8Nm

More Information:

An important part of a Lightning Protection System (LPS) is that electrically continuous parts of a structure must be bonded into the Lightning Protection network. The purpose of this bonding is to ensure that, in the event of a lightning discharge, any sparking of flashover of the lightning current to conductive parts of the structure, for example, water pipes, cables, etc are avoided.

FIXING HOLE SIZE
TAIL DIAMETER (mm)
TAIL LENGTH (mm)
MATERIAL
WEIGHT (kg)
PART NO.
M10
10mm
200mm
Stainless Steel
0.22
EBP1SS-M10
M8
10mm
500mm
Gunmetal/Steel
0.55
EBP1-M8-S
M16
16mm
500mm
Gunmetal/Steel
1.20
EBP1-M16-S
