Pipe Bonds

Pipe Bonds

SKU: PBS1-x Categories: , , Tag:
Clear
Download PDF

SKU: PBS1-x Categories: , , Tag:

Product Information:

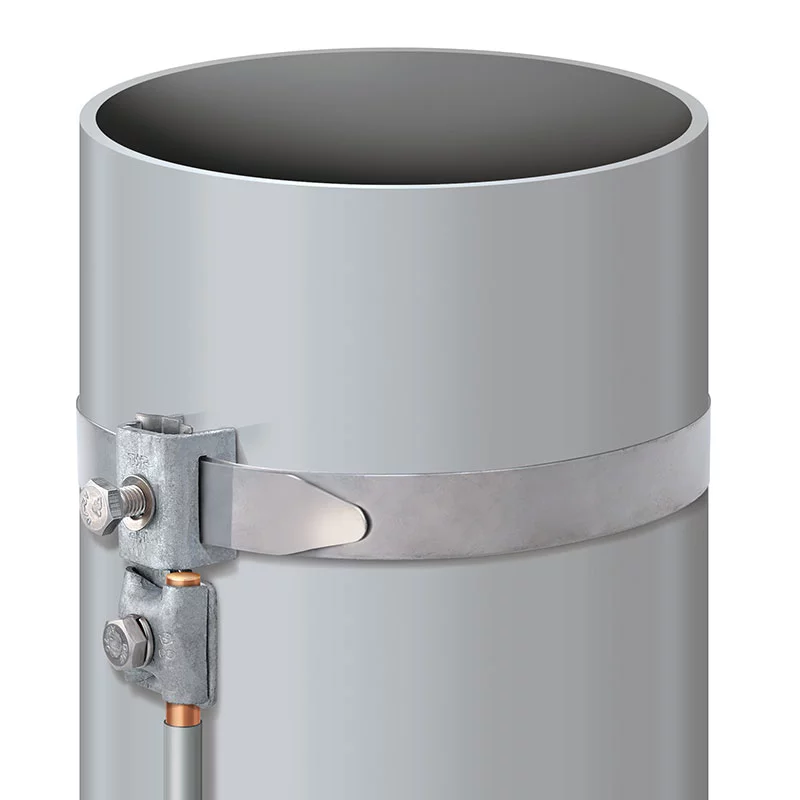

Pipe Bonds are designed for bonding circular stranded copper or aluminium conductor to the pipework.

Larger diameter pipes are also available upon request.

Features:

Material: Galvanised Steel/Steel
Standard: BS:EN 62561-1

More Information:

An important part of a Lightning Protection System (LPS) is that electrically continuous parts of a structure must be bonded into the Lightning Protection network. The purpose of this bonding is to ensure that, in the event of a lightning discharge, any sparking of flashover of the lightning current to conductive parts of the structure, for example, water pipes, cables, etc are avoided.

CONDUCTOR SIZE
PIPEWORK SIZE
WEIGHT (kg/m)
PART NO.
10mm² - 50mm² (up to 8mm dia)
1” - 3” (33.7mm - 88.9mm)
0.073
PBS1-3
10mm² - 50mm² (up to 8mm dia)
3” - 6” (88.9mm - 168mm)
0.177
PBS1-6
