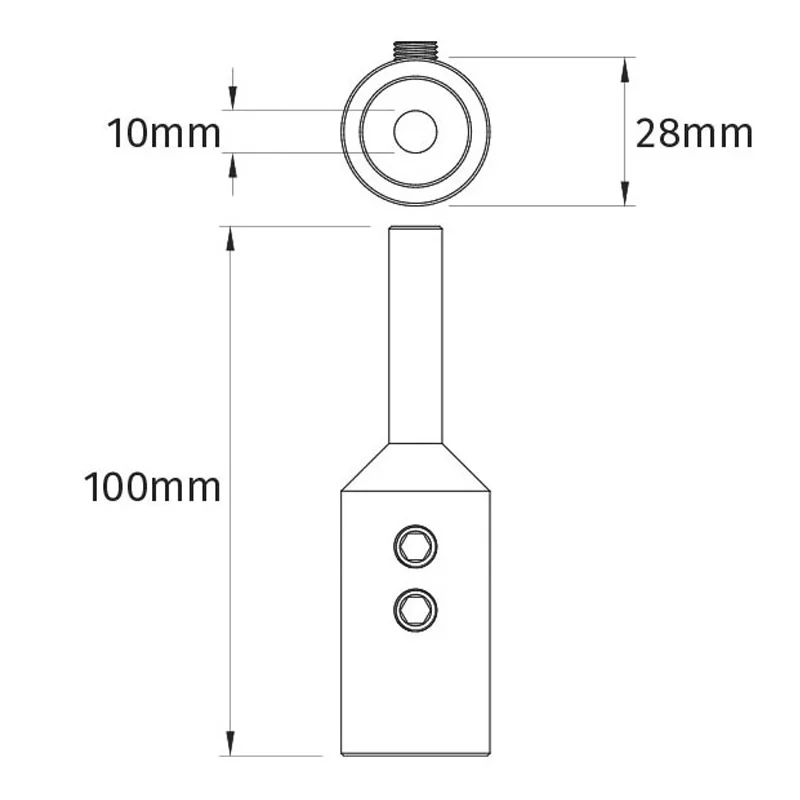

Insulated Lightning Conductor Cable End Tip

Insulated Lightning Conductor Cable End Tip

Socket Screws: 2 x M8 x 8
Weight (kg): 0.30

Download PDF

Product Information:

Use to terminate an Insulated Lightning Conductor Cable for secure installation in Cable Connectors and Clamps.

Sold as a kit which also includes Cable End Tip, Heat Shrink Tubing, Allen Key, and Glue

Features:

Material: Stainless Steel

More Information:

Can be used in the application of an Interception Mast/Air Terminals. Interception Masts are specially designed to be used with the Kingsmill Insulated Lightning Conductor.

The Kingsmill Insulated Lightning Conductor System is used with objects where there is no possibility to maintain separation, due either to lack of sufficient space or simply for aesthetic reasons. Through using Insulated Lightning Conductor, the Air Terminal can be placed closer to the object to be protected-for example, roof-mounted plant or solar PV panels.

SOCKET SCREWS
WEIGHT (kg)
PART NO.
2 x M8 x 8
0.30
KM30100105
