Ridge Tile Air Terminal (Single Bracket)

Ridge Tile Air Terminal (Single Bracket)

SKU: KM97111009 Category: Tag:

Terminal Height (mm): 1000
Rod Diameter (mm): 12

Download PDF

SKU: KM97111009 Category: Tag:

Product Information:

Ridge Tile Air Terminals (Single Bracket) are for use with 8mm diameter aluminium conductors.

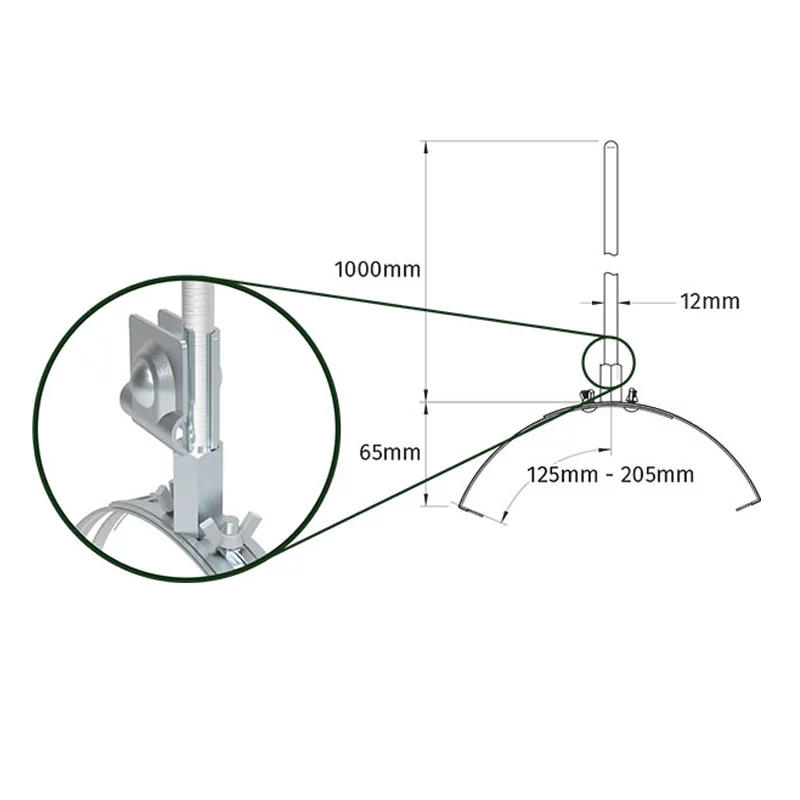

The connection of Conductor to Air Terminal is by means of a galvanized steel clamp (shown in picture).

Features:

Material: Aluminium/Zinc Plated Steel Base

More Information:

Can be used in the installation of Conventional Air Terminals.

Conventional Air Terminals offer a quick and easy solution for Air Terminals of 0.5m to 3.0m in height.

ROD DIA (mm)
TERMINAL HEIGHT (mm)
CONDUCTOR DIA + MATERIAL
DEPTH (mm)
TILE DIA (mm)
WEIGHT (kg)
PART NO.
12
1000
8mm Aluminium
65
125 - 205
0.06
KM97111009
