Insulated Lightning Conductor Cable Holder Base

Insulated Lightning Conductor Cable Holder Base

Weight (kg): 0.10

Download PDF

Product Information:

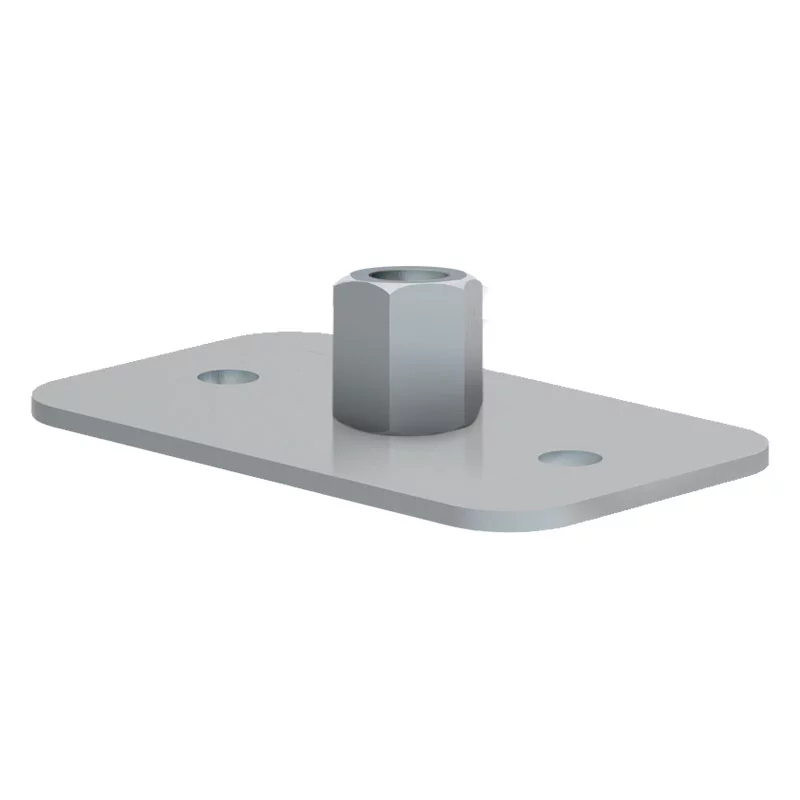

The Cable Holder Base is used to fix Cable Holders with an M8 threaded insert to a flat surface. It is supplied with 2 x 6mm diameter holes for self-tapping screws or bolts.

Features:

Material: Galvanised Steel

More Information:

Can be used in the application of an Interception Mast/Air Terminals. Interception Masts are specially designed to be used with the Kingsmill Insulated Lightning Conductor.

This system is used with objects where there is no possibility to maintain separation, due either to lack of sufficient space or simply for aesthetic reasons. Through using Insulated Lightning Conductor, the Air Terminal can be placed closer to the object to be protected-for example, roof-mounted plant or solar PV panels.

DESCRIPTION
WEIGHT (kg)
PART NO.
Cable Holder Base with M8 Threaded Stud
0.10
KM30600101

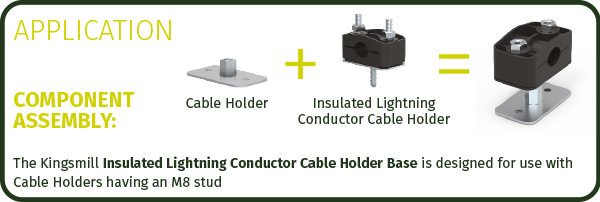

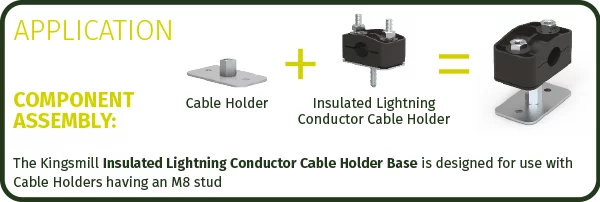

Application:
