Ridge Tile Air Terminal (Double Bracket)

Ridge Tile Air Terminal (Double Bracket)

SKU: KM97101xxx Category: Tag:
Clear
Download PDF

SKU: KM97101xxx Category: Tag:

Product Information:

Ridge Tile Air Terminals (Double Bracket) are for use with 8mm diameter aluminium conductors.

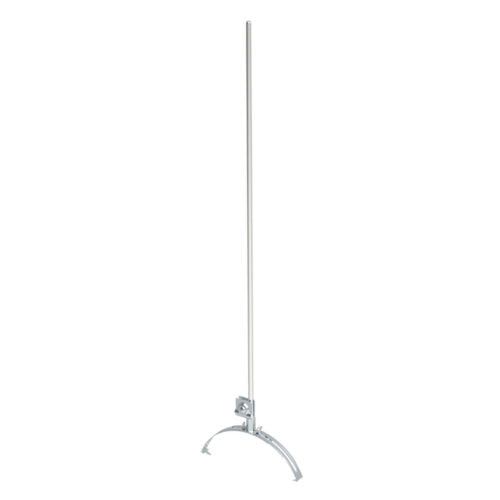

The connection of Conductor to Air Terminal is by means of a galvanized steel clamp (shown in picture).

Features:

Material: Aluminium/Zinc Plated Steel Base

More Information:

Can be used in the installation of Conventional Air Terminals.

Conventional Air Terminals offer a quick and easy solution for Air Terminals of 0.5m to 3.0m in height.

ROD DIA (mm)
TERMINAL HEIGHT (A) (mm)
CONDUCTOR
TILE WIDTH (mm)
WEIGHT (kg)
PART NO.
12
1000
8mm Aluminium
36
0.90
KM97101009
12
1500
8mm Aluminium
350
1.10
KM97101509
