Insulated Lightning Conductor Cable Holder with Connector

Insulated Lightning Conductor Cable Holder with Connector

Clear
Download PDF

Product Information:

The Insulated Lightning Conductor Cable Holder with Connector is supplied with either M8 or M16 threaded inserts. It is used for Air Termination Network applications.

Features:

Material: Galvanised Steel Insulated Saddle

More Information:

Can be used in the application of an Interception Mast/Air Terminals. Interception Masts are specially designed to be used with the Kingsmill Insulated Lightning Conductor.

This system is used with objects where there is no possibility to maintain separation, due either to lack of sufficient space or simply for aesthetic reasons. Through using Insulated Lightning Conductor, the Air Terminal can be placed closer to the object to be protected-for example, roof-mounted plant or solar PV panels.

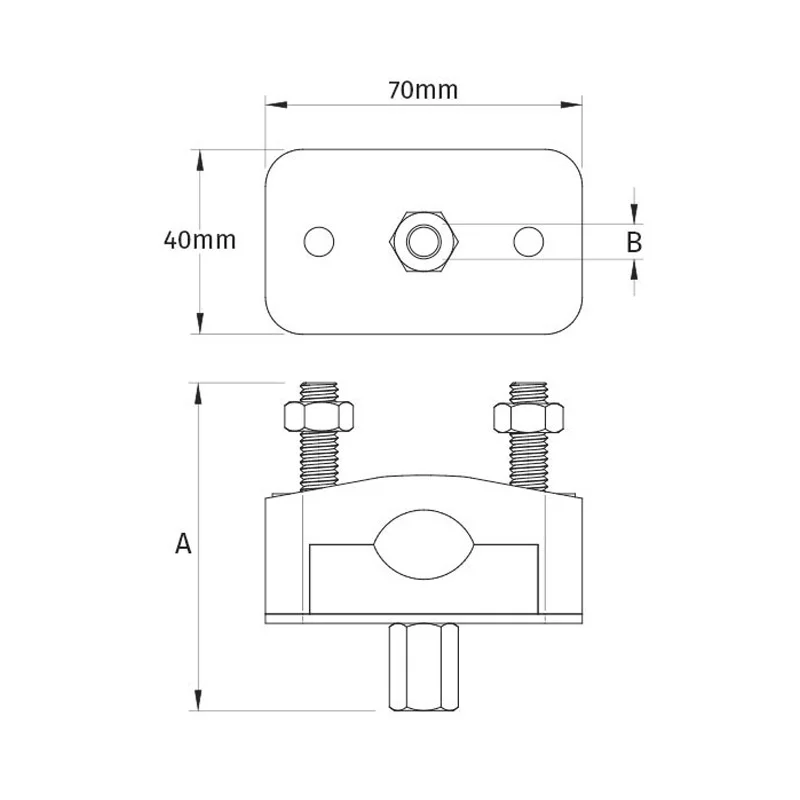

DESCRIPTION
HEIGHT (A) (mm)
THREADED INSERT (B)
WEIGHT (kg)
PART NO.
Cable Holder with M8 Internal Thread
70
M8
0.16
KM30400101
Cable Holder with M16 Internal Thread
94
M16
0.20
KM30400201
