Insulated Lightning Conductor Wall Mounted Interception Mast – 3m to 7m High

Insulated Lightning Conductor Wall Mounted Interception Mast – 3m to 7m High

Clear
Download PDF

Product Information:

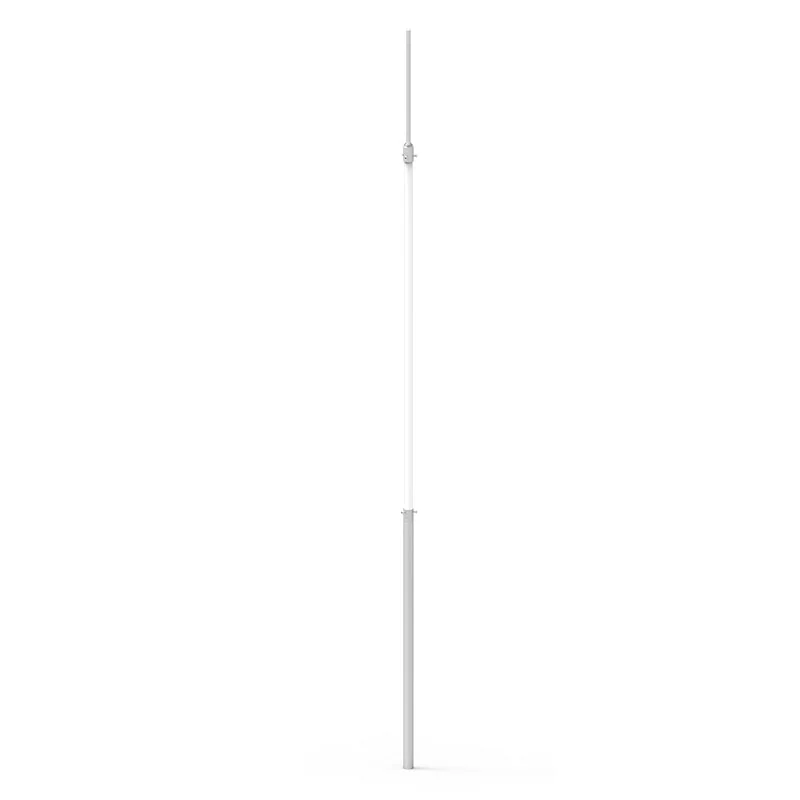

The Wall Mounted Interception Mast is supplied in three sections:

  • Stainless steel Supporting Mast
  • 1500mm glass fibre Insulation Section

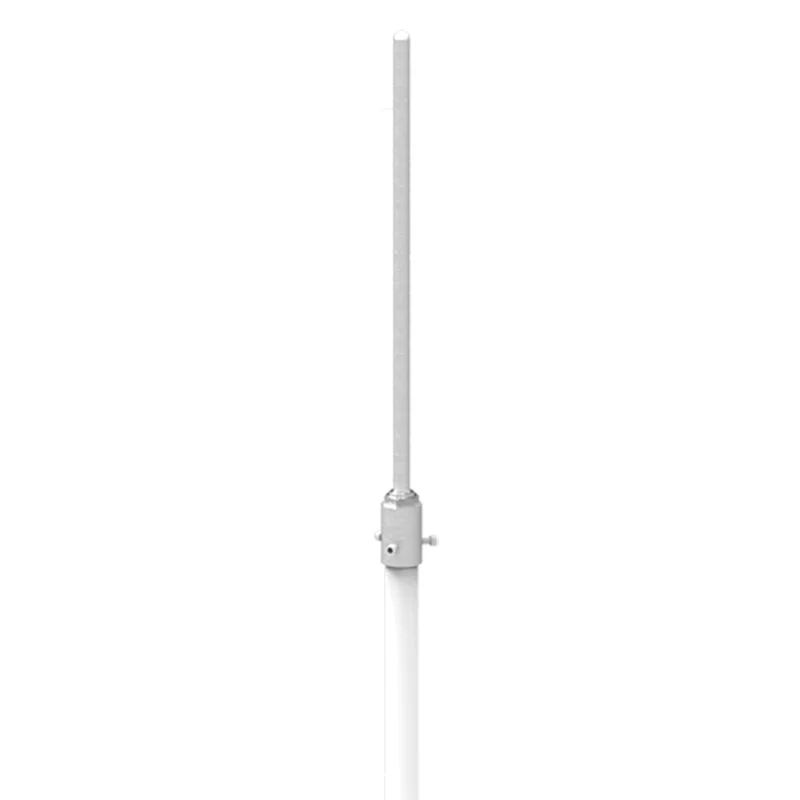

  • Aluminium Air Terminal

Features:

Material:

  • Aluminium Air Terminal
  • GRP Insulation Section
  • Stainless Steel Supporting Mast

More Information:

When mounting against a wall or flat vertical structure, it is recommended that a minimum of 1000mm of the mast assembly is below the top of the wall/vertical surface.

It is recommended that two Mast Holders are used for each mast, spaced at a distance of 800mm apart.

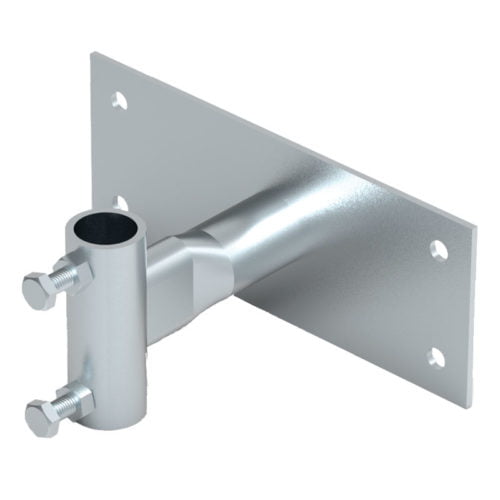

The mast can be fixed to the wall using two of our Wall Mounted Brackets (KM96000102).

Alternatively, when fixing to handrails or tubular structures, the mast can be secured using two each of the following items:

  • Mast Holder (KM96000701)

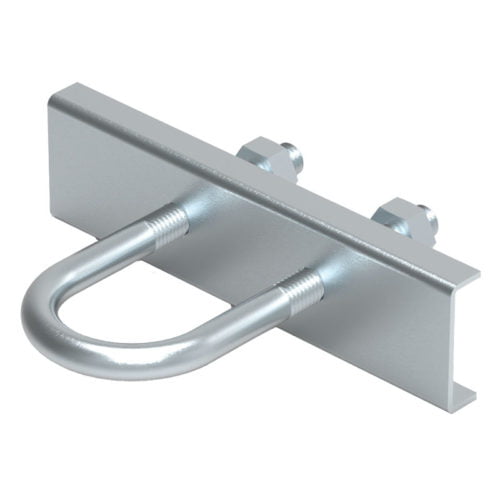

  • Pipe/Handrail Brackets (suitably sized)

Can be used in the application of an Interception Mast/Air Terminals.

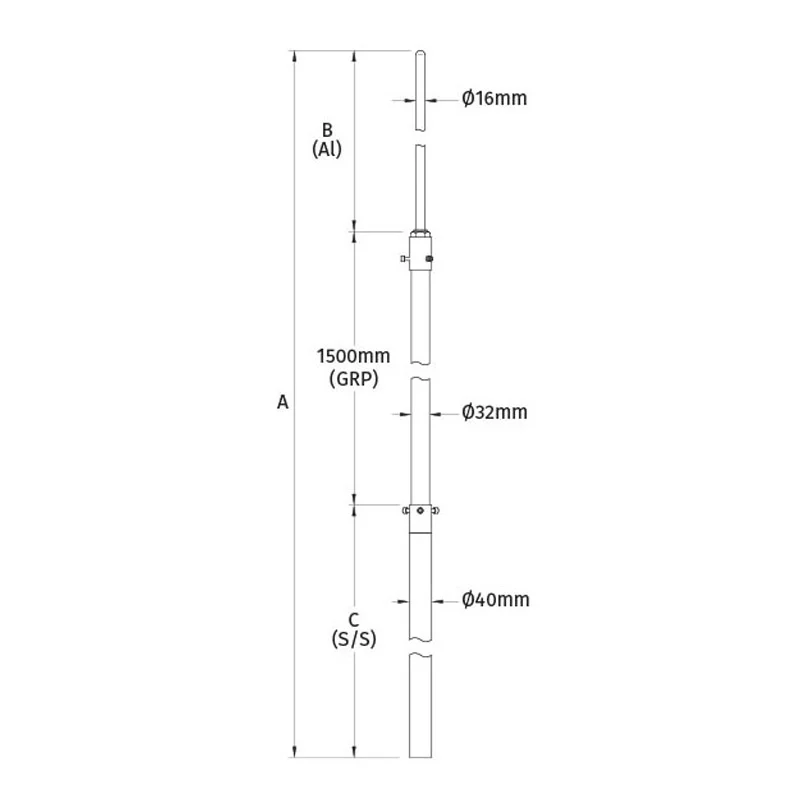

OVERALL HEIGHT (A) (mm)
AIR TERMINAL HEIGHT (B) (mm)
SUPPORTING MAST HEIGHT (C) (mm)
WEIGHT (kg)
PART NO.
3000
500
1000
2.70
KM96223005
4000
1000
1500
3.70
KM96224005
5000
1000
2500
5.10
KM96225005
6000
1000
3500
6.50
KM96226005
7000
1000
4500
7.70
KM96227005
