Product Information:

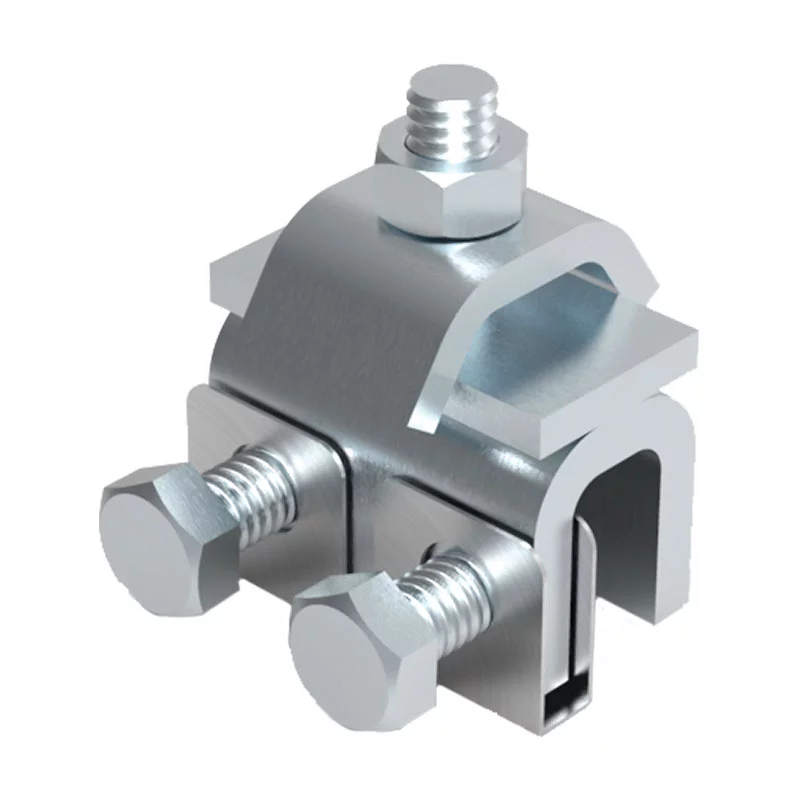

The Universal Seam Holder is used for fixing Cable Holders to standing seam roofs. It is designed for Cable Holders with an M8 threaded insert (two M10 versions are also available).

Features:

Material: Galvanised Steel, Hot Dip Galvanised or Stainless Steel

More Information:

Can be used in the application of an Interception Mast/Air Terminals. Interception Masts are specially designed to be used with the Kingsmill Insulated Lightning Conductor.

This system is used with objects where there is no possibility to maintain separation, due either to lack of sufficient space or simply for aesthetic reasons. Through using Insulated Lightning Conductor, the Air Terminal can be placed closer to the object to be protected-for example, roof-mounted plant or solar PV panels.

MATERIALBOLTS
WEIGHT (kg)
PART NO.
Galvanised Steel3 x M8 x 25mm
0.18
KM99600101
Hot Dip Galvanised3 x M8 x 25mm
0.19
KM99600102
Stainless Steel3 x M8 x 25mm
0.17
KM99600105

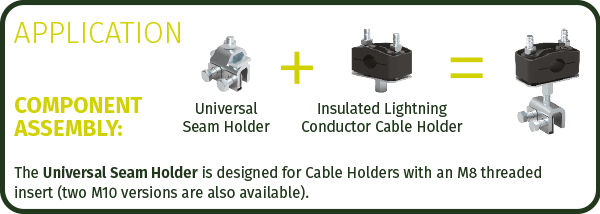

Application:
