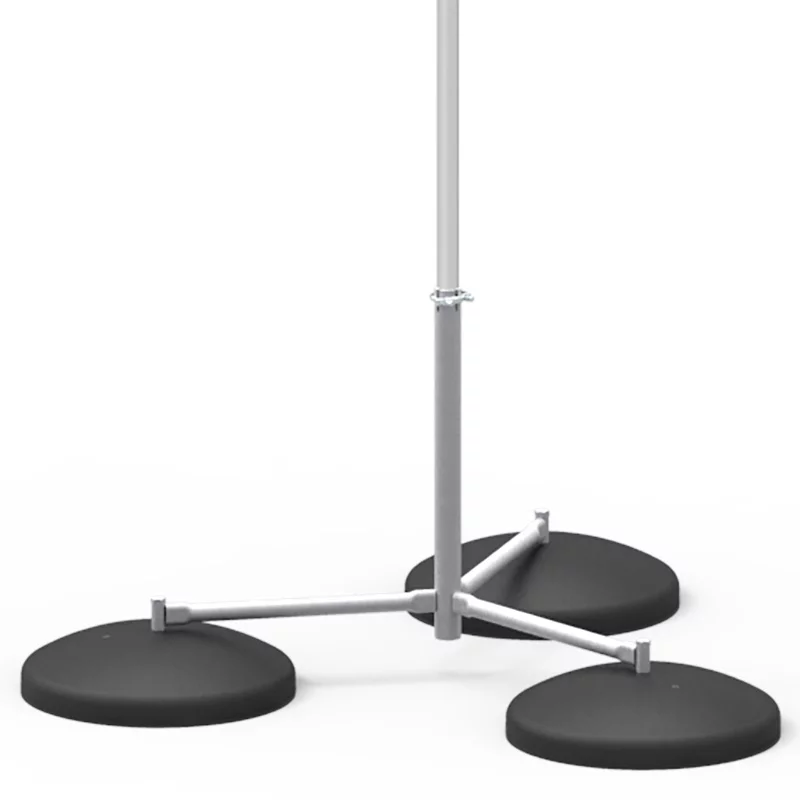

Insulated Lightning Conductor Free-Standing Tripod Interception Mast – 3m to 7m High

Insulated Lightning Conductor Free-Standing Tripod Interception Mast – 3m to 7m High

Clear
Download PDF

Product Information:

Insulated Lightning Conductor Free-Standing Tripod Interception Masts are suitable for wind speeds of up to 24 to 27m/s, 86.4 to 169.2km/h, 53.7 to 105.1mph

Each mast is supplied as a complete assembly, comprising of the following:

  • Stainless steel Tripod Base and Mast
  • 1500mm glass fibre Insulation Section
  • Aluminium Air Terminal

Features:

The Tripod Base and Mast include 3 x 40kg Concrete Mounting Blocks.

More Information:

The Interception Mast includes 3 x Concrete Mounting Blocks. Concrete Mounting Blocks are a combination of concrete and bitumastic compounds to protect against wet weather.

We recommend the use of a square membrane Roof Protection Pad (KM94308221) under each concrete block, which is not included with this product. The membrane helps protect the waterproof roof covering from mechanical damage.

The Insulated Lightning Conductor Free-Standing Tripod Interception Mast – 3m to 7m High can be used in the application of an Interception Masts/Air Terminals.

TOTAL MAST HEIGHT (A) (mm)
ALUMINIUM AIR TERMINAL LENGTH (B) (mm)
BASE HEIGHT (C) (mm)
ASSEMBLY WEIGHT (kg)
PART NO.
3000
500
1000
135.00
KM96573005
4000
1000
1500
138.00
KM96574005
5000
1000
2500
139.00
KM96575005
6000
1000
3500
140.00
KM96576005
7000
1000
4500
141.00
KM96577005
