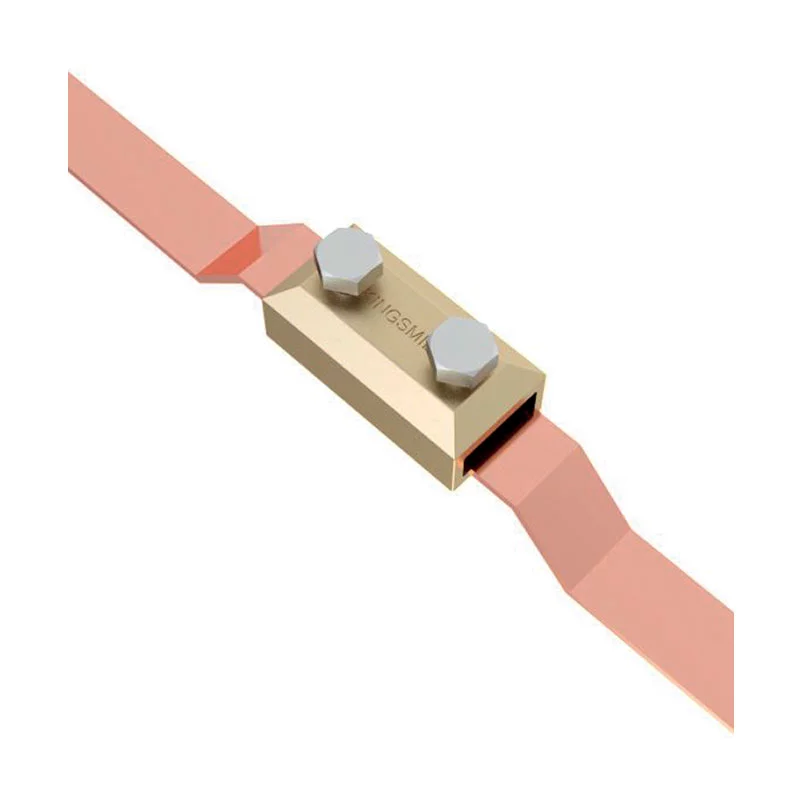

Oblong Test Clamps

Oblong Test Clamps

SKU: OTCxxx Category: Tag:
Clear
Download PDF

SKU: OTCxxx Category: Tag:

Product Information:

Oblong Test Clamps are designed to join conductor tape to facilitate the annual testing of the Lightning Protection System.

Features:

Material: Aluminium/Copper
Standard: BS:EN 62561-1, Class H
Tightening torque: 15Nm

More Information:

The heavy-duty lid simply screws on and off the threaded base.

When choosing a connector it is important to ensure:

  • The connector is mechanically robust.
  • The connector is selected according to its application.
  • The connector is rated for its application.
  • To avoid bimetallic corrosion-use a bimetallic connector (do not connect bare copper directly to bare aluminium, or have water run-off from copper, fall into aluminium).

Galvanic corrosion happens when there is a potential difference between dissimilar metals:

  • When the materials are in contact in the presence of an electrolyte, corrosion occurs. One metal becomes the anode, the other the cathode. The anode will tend to go into solution and therefore corrode. The electrolyte can be water with impurities from the air.
  • In the instance of water run-off from copper- the water carries fine copper corrosion particles which, when they drop on to aluminium or zinc, may result in corrosion. The direct contact of the dissimilar metals are not required for corrosion to occur in such a case.
CONDUCTOR SIZE (mm)
CONDUCTOR MATERIAL
WEIGHT (kg)
PART NO.
25 x 3
Aluminium
0.16
OTCA253
25 x 3
Copper
0.40
OTCC253
31 x 6
Copper
0.38
OTCC316
40 x 5
Copper
0.53
OTCC405
50 x 6
Copper
1.35
OTCC506
