Threaded Rod

Threaded Rod

SKU: KM-30800xxx Category: Tag:
Clear
Download PDF

SKU: KM-30800xxx Category: Tag:

Product Information:

Threaded Rods can be used with an Insulated Lightning Conductor Cable Holders having an M8 insert.

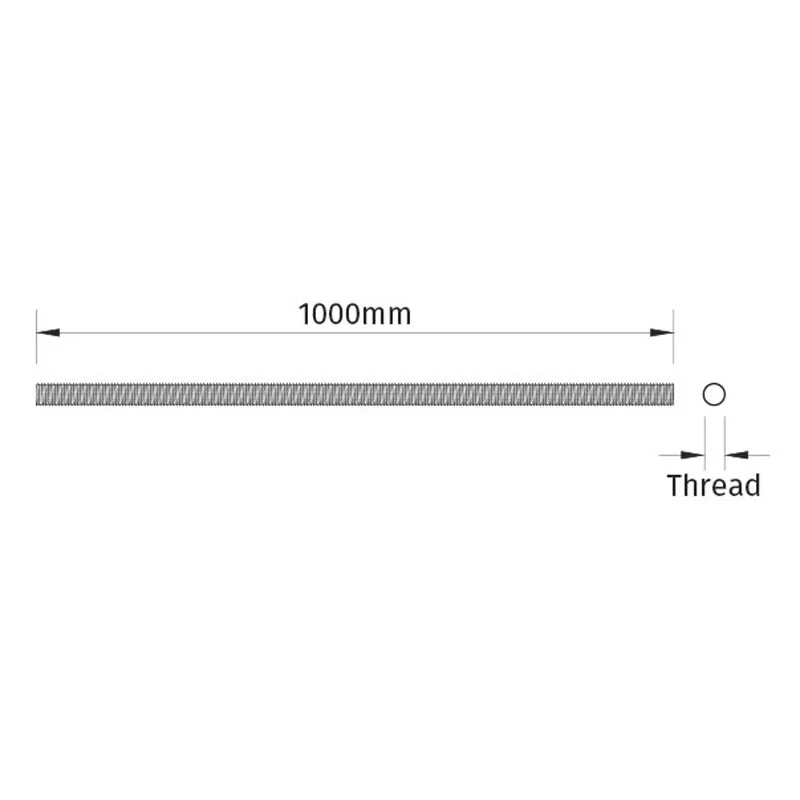

Supplied in 1m lengths for cutting to size at the site.

Features:

Material: Zinc Plated Steel

More Information:

Can be used in the application of an Interception Mast/Air Terminals. Interception Masts are specially designed to be used with the Kingsmill Insulated Lightning Conductor.

This system is used with objects where there is no possibility to maintain separation, due either to lack of sufficient space or simply for aesthetic reasons. Through using Insulated Lightning Conductor, the Air Terminal can be placed closer to the object to be protected-for example, roof-mounted plant or solar PV panels.

Zinc Plated Threaded Rod:

THREAD
WEIGHT (kg)
PART NO.
M8
0.40
KM30800101
M10
0.50
KM30800201
M12
0.60
KM30800301
M16
1.20
KM30800401

Stainless Steel Nuts:

THREAD
WEIGHT (kg)
PART NO.
M8
0.004
A2FN08
M10
0.001
A2FN10
M12
0.016
A2FN12
M16
0.020
A2FN16

Application:
