Type 2 Surge Arrester – ‘Y’ Connection

Type 2 Surge Arrester – ‘Y’ Connection

SKU: KM-SLP-PVxxx Category: Tag:
Download PDF

SKU: KM-SLP-PVxxx Category: Tag:

Product Information:

Surge arresters for use in photovoltaic systems with ‘Y’ connection. Protects both poles.

Features:

  • Pluggable module
  • Visual fault signalling
  • Module locking
  • Remote fault signalling

Benefits: Ideal for use with photovoltaic systems where the separating spark-over distance is without a Lightning Protection system.

Standards: EN 50539-11

Application: Use on systems up to 750 volts, 1020 volts, and 1500 volts.

More Information:

Photovoltaic (PV) arrays and their associated equipment are expensive assets to purchase and so the need to protect them from the effects of lightning is of paramount importance.

A lightning surge protection device prevents damage to electrical and electronic equipment from over-voltage transient events by blocking or redirecting surge current to the ground instead of passing through the equipment.

Kingsmill has a range of Earthing, Structural Lightning Protection and Surge Protection products that can be used to provide protection against both the direct and indirect effects of lightning. Products relating to Earthing and Structural Lightning Protection are dealt with in their respective sections.

Electrical Specification:

ORDER NUMBER
KM-SLP-PV700 V/Y S
KM-SLP-PV1000 V/Y S
KM-SLP-PV1500 V/Y S
Type of SPD
PV T2
PVT2
PV T2
Maximum Operating Voltage Mode 1/3, 2/3Ucpv
750V DC
1020V DC
1500V DC
Nominal Discharge Current (8/20μs)In
20kA
15kA
15kA
Maximum Discharge Current (8/20μs)Imax
40kA
40kA
40kA
Voltage Protection Level Mode 1/2Up
3.6kV
4kV
6.4kV
Voltage Protection Level Mode 1/3, 2/3Up
3.6kV
4kV
2.4kV
Short-Circuit Current RatingISCPV
1000A DC
1000A DC
1000A DC
Response Timeta
25ns
25ns
25ns
Residual Current Mode 1/3, 2/3 (AC)IPE
n/a
n/a
0.2000mA AC
Residual Current Mode 1/3, 2/3 (DC)IPE
n/a
n/a
0.0005mA DC
Cross-Section of Connected Conductors Solid (min - max)
1mm² - 35mm²
Cross-Section of Connected Conductors Stranded (min - max)
1mm² - 25mm²
Fault Indication
Red Indication Field
Remote Indication
Potential-Free Change-Over Contact
Remote Indication Contacts
250V/0.5A AC, 250V/0.1A DC
Cross-Section of Remote Indication Conductors
1.5mm²
Degree of Protection
IP20
Range of Operating Temperatures (min - max)
-40°C - +80°C
Mounting
DIN rail 35mm
According to Standard
EN 50539-11:2013
ETIM Class
EC000941
Weight
315g (nett), 360g (gross)
325g (nett), 365g (gross)
420g (nett), 450g (gross)

Spare Modules:

Replace when fault indication indicator turns from green to red

DESCRIPTION
ORDER NUMBER
Spare Module (750V DC)
KM-SLP-PV350Y V/0
Spare Module (1020V DC)
KM-SLP-PV500Y V/0
Spare Module (1500V DC)
KM-SLP-PV750Y V/0

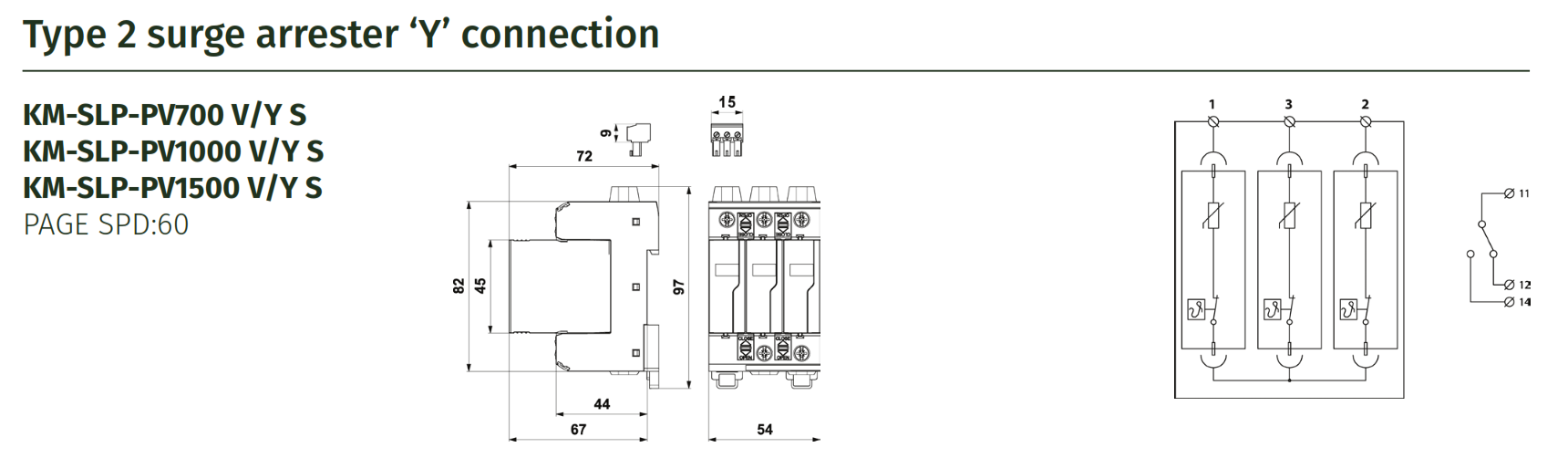

Wiring Diagrams for Type 2 Surge Arrester ‘Y’ Connection:
