Type 3 Surge Arrester – LED Lighting

Type 3 Surge Arrester – LED Lighting

Type: D1, C2

Location: ST 1+2

Download PDF

Product Information:

Surge arrester for protection of LED lights.

Features:

  • Compact size
  • Fault signalling by supply interruption

Benefits: Simple installation in applications with limited space.

Standards: EN 61643-11 (Surge Protection Devices).

Application: Install close to protected equipment in low voltage power circuits.

More Information:

A lightning surge protection device prevents damage to electrical and electronic equipment from transient over-voltage events by blocking or redirecting surge current to the ground instead of passing through the equipment.

Public lighting systems, street lighting for example, as well as lighting for large industrial premises, can be extensive, with cable lengths running into hundreds of meters.

Such systems are exposed to risks of overvoltages induced by lightning strikes, as well as switching events. Transient overvoltages in extensive installations may reach values that are higher than the specified withstand voltage of the light source (luminaire), thus leading to damage.

Electrical Specification:

Order number
KM-DA-320-LED
Nominal voltageUn
230V AC
Maximum operating voltageUc
320V AC
Nominal load currentIL
5A
Nominal discharge current (8/20μs) L-N / N-PEIn
3kA
Nominal discharge current (8/20μs) L+N-PEIn
5kA
Test voltage L-N / N-PEUoc
6kV
Test voltage L+N-PEUoc
10kV
Test voltage L-PEUoc
6kV
Voltage protection level L-NUp
1.65kV
Voltage protection level mode N-PE/L-PEUp
1.5kV
Short-circuit current ratingISCCR
1.5kA
Maximum overcurrent protection
16A gL/gG or B 16A
Response time L-Nta
25ns
Response time N-PEta
100ns
Fault indication
loss of voltage
Degree of protection
IP20
Range of operating temperatures (min - max)
-40°C - +80°C
Mounting
installation box
According to standard
EN 61643-11:2012, IEC 61643-11:2011 / T3
Weight
30g (nett), 45g (gross)

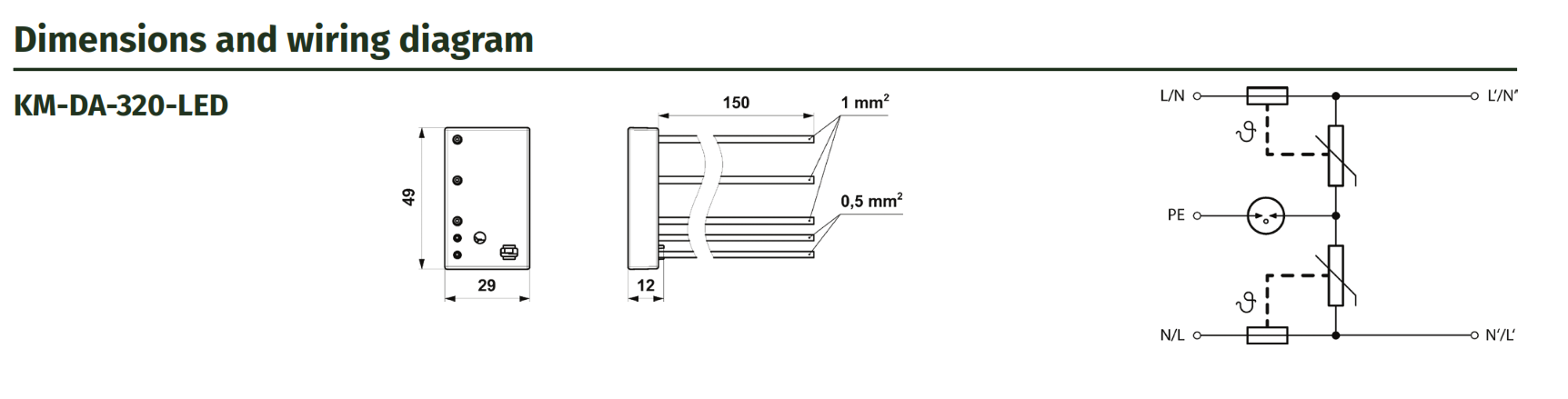

Wiring Diagrams for Type 3 Surge Arrester – LED Lighting:
