B Bonds (Flat Surfaces)

B Bonds (Flat Surfaces)

SKU: BBxxx Categories: , Tag:
Clear
Download PDF

SKU: BBxxx Categories: , Tag:

Product Information:

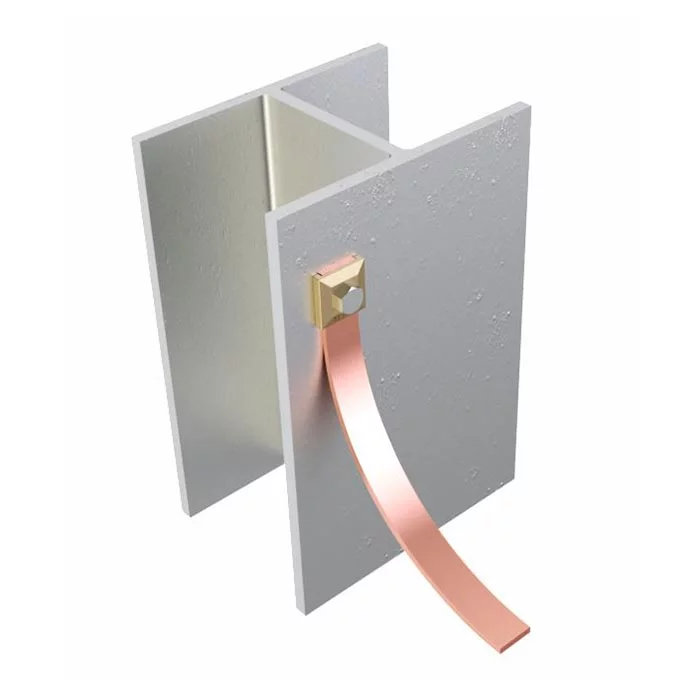

‘B’ Type Bond connections are designed to bond either copper or aluminium conductor to flat metal surfaces.

Features:

Material: Gunmetal or Aluminium (body), Stainless Steel (bolt)
Standard: BS:EN 62561-1 Class H, BS 7430
Tightening torque: 17Nm

More Information:

An important part of a Lightning Protection System (LPS) is that electrically continuous parts of a structure must be bonded into the Lightning Protection network. The purpose of this bonding is to ensure that, in the event of a lightning discharge, any sparking of flashover of the lightning current to conductive parts of the structure, for example, water pipes, cables, etc are avoided.

CONDUCTOR MATERIAL
CONDUCTOR SIZE (mm)
BOLT MATERIAL
BOLT SIZE
WEIGHT (kg)
PART NO.
Copper
25 x 3
Gunmetal
M10
0.08
BBCB
Aluminium
25 x 3
Aluminium
M10
0.06
BBAB
Copper
31 x 6
Gunmetal
M10
0.14
BBCB316
