Flexible Flat Braid Bonds

Flexible Flat Braid Bonds

SKU: FBxxx Categories: , ,
Clear
Download PDF

SKU: FBxxx Categories: , ,

Product Information:

Flexible Flat Copper Braid Bonds are ideal for the bonding of metal doors, gates, fencing, etc.

Features:

Material: Copper/ Tinned Copper
Standard: BS:EN 13602

More Information:

Other sizes, materials, hole sizes, etc. available on request.

An important part of a Lightning Protection System (LPS) is that electrically continuous parts of a structure must be bonded into the Lightning Protection network. The purpose of this bonding is to ensure that, in the event of a lightning discharge, any sparking of flashover of the lightning current to conductive parts of the structure, for example, water pipes, cables, etc are avoided.

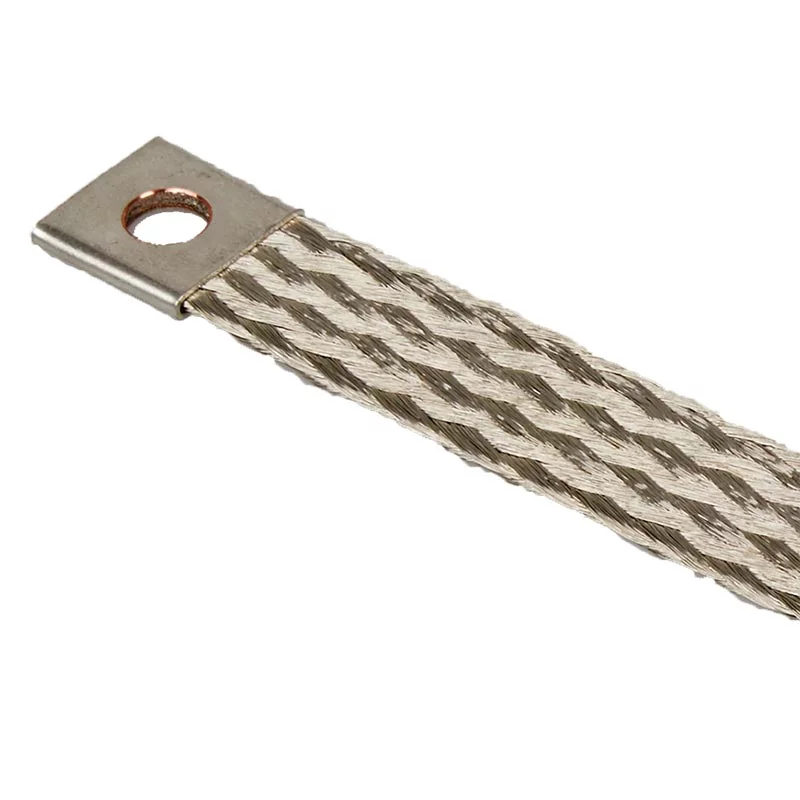

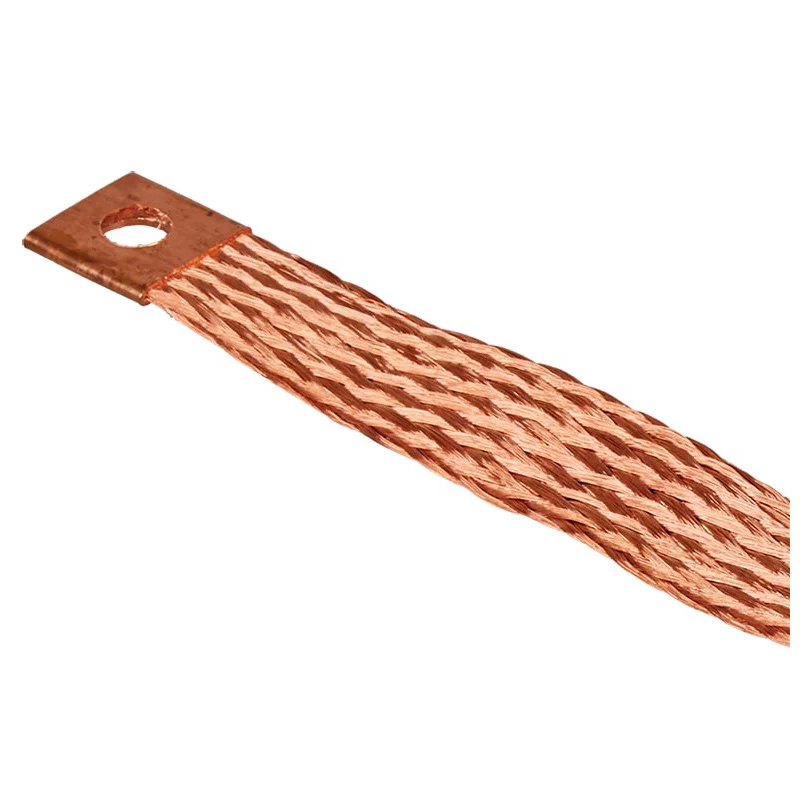

Flexible Flat Copper Braid Bonds:

DIMENSIONS (mm)
HOLE DIAMETER (A) (mm)
LENGTH (B) (mm)
CSA (mm²)
WEIGHT (kg)
PART NO.
12 x 1
7.0
200
6.0
0.01
FB200/6/7
12 x 1
7.0
400
6.0
0.02
FB400/6/7
15 x 1.5
7.0
200
10
0.02
FB200/10/7
15 x 1.5
7.0
400
10
0.04
FB400/10/7
19 x 2.5
9.0
200
16
0.03
FB200/16/9
19 x 2.5
9.0
400
16
0.06
FB400/16/9
25 x 3
11
200
25
0.05
FB200/25/11
25 x 3
11
400
25
0.10
FB400/25/11
25 x 3.5
11
200
35
0.09
FB200/35/11
25 x 3.5
11
400
35
0.15
FB400/35/11
30 x 5
11
200
50
0.10
FB200/50/11
30 x 5
11
400
50
0.20
FB400/50/11
32 x 6
13
200
70
0.13
FB200/70/13
32 x 6
13
400
70
0.25
FB400/70/13
37 x 6
13
200
95
0.19
FB200/95/13
37 x 6
13
400
95
0.37
FB400/95/13
45 x 6
17
200
120
0.23
FB200/120/17
45 x 6
17
400
120
0.46
FB400/120/17
50 x 8
17
200
150
0.30
FB200/150/17
50 x 8
17
400
150
0.60
FB400/150/17

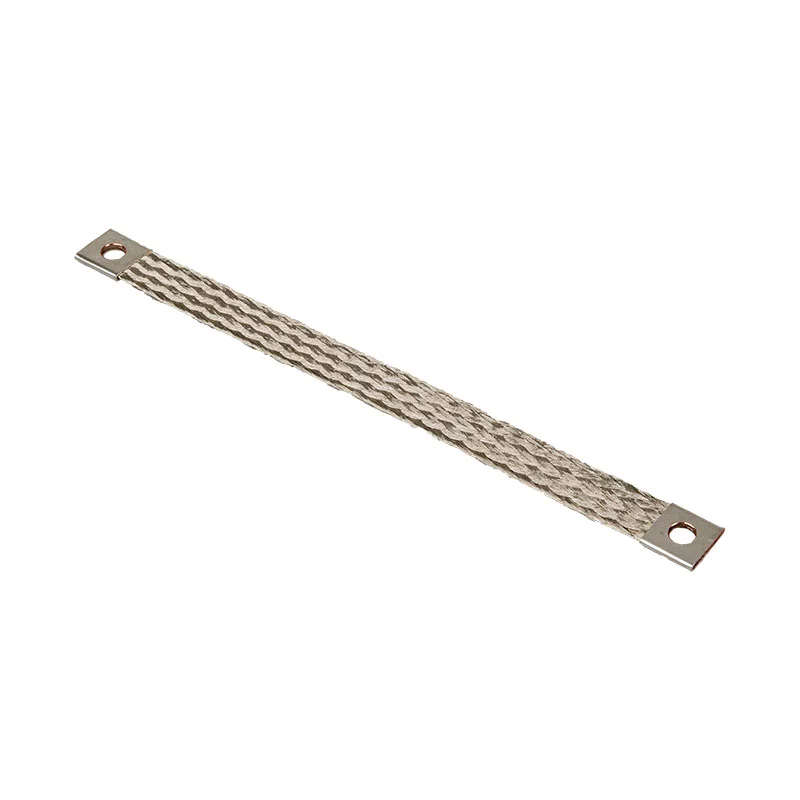

Flexible Flat Tinned Copper Braid Bonds:

DIMENSIONS (mm)
HOLE DIAMETER (A) (mm)
LENGTH (B) (mm)
CSA (mm²)
WEIGHT (kg)
PART NO.
12 x 1
7.0
200
6.0
0.01
FBT200/6/7
12 x 1
7.0
400
6.0
0.02
FBT400/6/7
15 x 1.5
7.0
200
10
0.02
FBT200/10/7
15 x 1.5
7.0
400
10
0.04
FBT400/10/7
19 x 2.5
9.0
200
16
0.03
FBT200/16/9
19 x 2.5
9.0
400
16
0.06
FBT400/16/9
25 x 3
11
200
25
0.05
FBT200/25/11
25 x 3
11
400
25
0.10
FBT400/25/11
25 x 3.5
11
200
35
0.09
FBT200/35/11
25 x 3.5
11
400
35
0.15
FBT400/35/11
30 x 5
11
200
50
0.10
FBT200/50/11
30 x 5
11
400
50
0.20
FBT400/50/11
32 x 6
13
200
70
0.13
FBT200/70/13
32 x 6
13
400
70
0.25
FBT400/70/13
37 x 6
13
200
95
0.19
FBT200/95/13
37 x 6
13
400
95
0.37
FBT400/95/13
45 x 6
17
200
120
0.23
FBT200/120/17
45 x 6
17
400
120
0.46
FBT400/120/17
50 x 8
17
200
150
0.30
FBT200/150/17
50 x 8
17
400
150
0.60
FBT400/150/17

Fixings for Flat Copper Braid Bonds:

Fixings for Flat Tinned Copper Braid Bonds:
