Circular Conductor Joining and Tee Clamps

Circular Conductor Joining and Tee Clamps

SKU: SQCx08-MV Category: Tag:
Download PDF

SKU: SQCx08-MV Category: Tag:

Product Information:

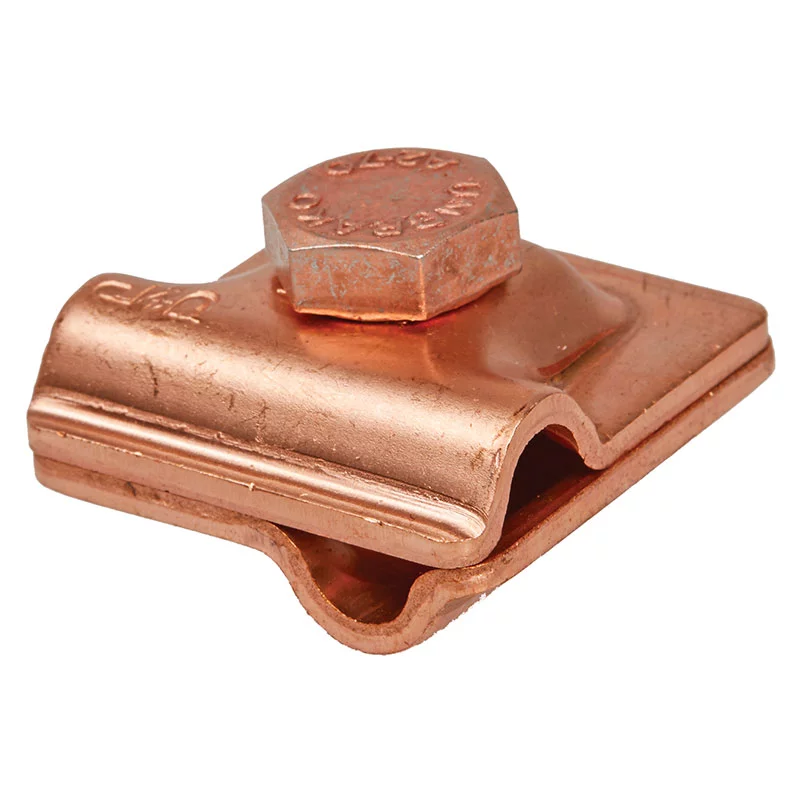

Circular Conductor Joining and Tee Clamps connect 8mm diameter lightning protection conductor in straight or crossover configurations.

Features:

Material: Copper / Aluminium / Zinc Plated Steel
Standard: BS:EN 62561-1

More Information:

When choosing a connector it is important to ensure:

  • The connector is mechanically robust.
  • The connector is selected according to its application.
  • The connector is rated for its application.
  • To avoid bimetallic corrosion: use a bimetallic connector (do not connect bare copper directly to bare aluminium, or have water run-off from copper fall onto aluminium).
CONDUCTOR SIZE (mm)
MATERIAL
WEIGHT (kg)
PART NO.
8 Dia
Steel
0.05
SQCS08-MV
8 Dia
Copper
0.05
SQCC08-MV
8 Dia
Aluminium
0.01
SQCA08-MV
