Copperbond Earth Rods

Copperbond Earth Rods

SKU: ERCBxxx Category: Tag:
Clear
Download PDF

SKU: ERCBxxx Category: Tag:

Product Information:

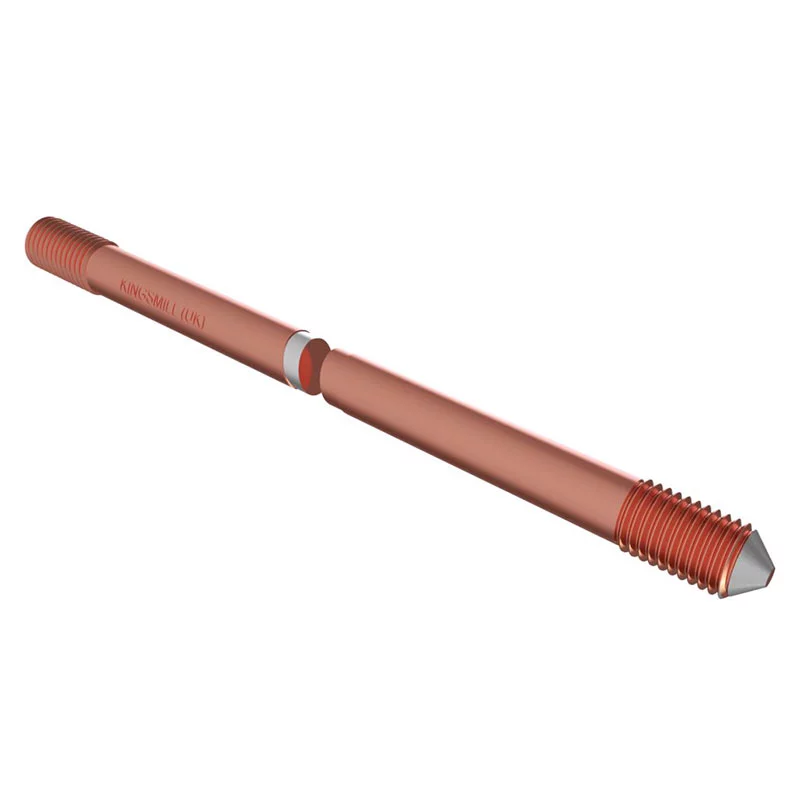

Copper bond Earth Rods, deep driven, usually provide the most cost-effective earth system. They are made from low carbon, high tensile strength (minimum 600n/mm2) steel core with a coating of 99.9% pure electrolytic copper, that has been molecularly bonded to the steel core.

Features:

Material: Pure copper molecularly bonded on to a steel core
Standard: BS:EN 62561-2, BS 7430
Copper Thickness: 254 microns (minimum)

More Information:

Extendable type rods have a rolled thread (UNC2A) at each end. Rolled threads have a higher strength than cut threads. Additionally, they preserve the copper coating over the threaded sections thus improving corrosion resistance.

An Earth Termination Network must:

  • protect life,
  • provide a low resistivity path to earth,
  • allow circuit protection devices to operate correctly,
  • carry high currents repeatedly,
  • have excellent corrosion resistance properties, and
  • be mechanically robust.
NOMINAL DIA. (in : mm)
LENGTH (mm)
THREAD SIZE UNC (in)
SHANK DIAMETER (mm)
WEIGHT (kg/m)
PART NO.
3:8 / 9
1200
3/8
9.5
0.61
ERCB1004
5:8 / 16
1200
5/8
14.2
1.50
ERCB1604
5:8 / 16
1500
5/8
14.2
1.88
ERCB1605
5:8 / 16
1800
5/8
14.2
2.27
ERCB1606
5:8 / 16
2400
5/8
14.2
2.99
ERCB1608
5:8 / 16
3000
5/8
14.2
3.75
ERCB1610
3:4 / 20
1200
3/4
17.2
2.19
ERCB2004
3:4 / 20
1500
3/4
17.2
2.79
ERCB2005
3:4 / 20
1800
3/4
17.2
3.34
ERCB2006
3:4 / 20
2400
3/4
17.2
4.46
ERCB2008
3:4 / 20
3000
3/4
17.2
5.44
ERCB2010

Application:
