Product Information:

Kingsmill Lattice Copper Earth Mats are used where step potential could cause problems.

They are a lower-cost option to the solid plates and when used with MarconiteĀ®, they provide a long-lasting earth solution. Generally used as an electrode where significant amounts of fault current can be encountered.

Features:

Material: Copper
Standard: BS:EN 12163 (formerly BS 2874)

More Information:

Other sizes are available on request. Kingsmill can provide a bespoke service for large Earth Mats, which can be rolled-out on site. Please contact us with your requirements.

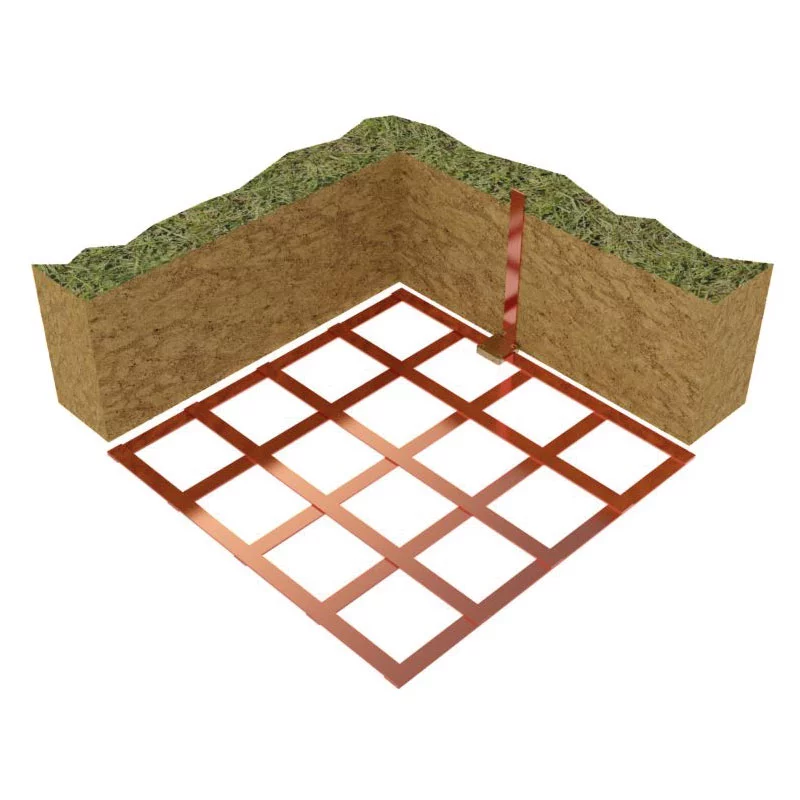

When buried horizontally, Earth Mats can provide an equipotential plane for protecting operators at switching positions.

An Earth Termination Network must:

  • protect life,
  • provide a low resistivity path to earth,
  • allow circuit protection devices to operate correctly,
  • carry high currents repeatedly,
  • have excellent corrosion resistance properties, and
  • be mechanically robust.
LENGTH x WIDTH (mm)
THICKNESS (mm)
SURFACE AREA (mĀ²)
GRID
WEIGHT (kg)
PART NO.
600 x 600
3.0
0.31
5 Bar
4.02
LCEM630
900 x 900
3.0
0.65
5 Bar
5.90
LCEM930
