Solid Copper Earth Rods

Solid Copper Earth Rods

SKU: ERSCxxx Category: Tag:
Clear
Download PDF

SKU: ERSCxxx Category: Tag:

Product Information:

Used where soil conditions are aggressive, ie high salt content.

Features:

Material: 99.9% Hard Drawn Copper
Standard: BS:EN 62561-2, BS 7430

More Information:

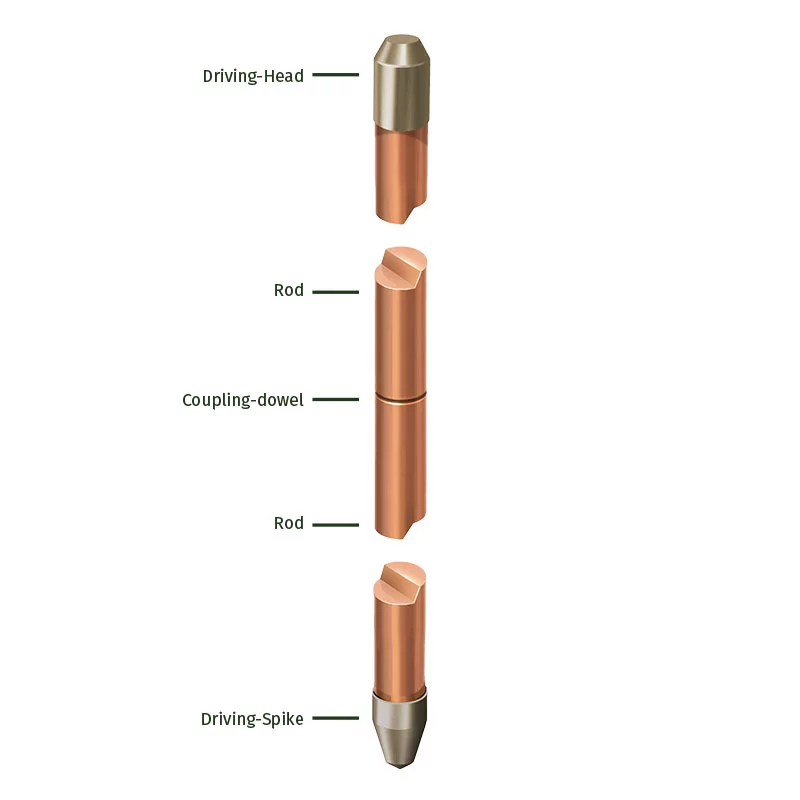

Solid Copper Earth Rods have a tapped hole at each end which allows them to be joined together by means of a Coupling Dowel.

An Earth Termination Network must:

  • protect life,
  • provide a low resistivity path to earth,
  • allow circuit protection devices to operate correctly,
  • carry high currents repeatedly,
  • have excellent corrosion resistance properties, and
  • be mechanically robust.
LENGTH (mm)
DIAMETER (mm)
INTERNAL THREAD (mm)
WEIGHT (kg)
PART NO.
1200
15
M10
1.85
ERSC1504
1200
16
M10
2.10
ERSC1604
1500
16
M10
2.49
ERSC1605
1800
16
M10
2.99
ERSC1606
2400
16
M10
3.99
ERSC1608
3000
16
M10
4.99
ERSC1610
1200
20
M10
3.30
ERSC2004
1500
20
M10
4.14
ERSC2005
1800
20
M10
5.02
ERSC2006
2400
20
M10
6.70
ERSC2008
3000
20
M10
8.38
ERSC2010
1200
25
M10
5.18
ERSC2504
1500
25
M10
6.48
ERSC2505
1800
25
M10
7.78
ERSC2506
2400
25
M10
10.37
ERSC2508
3000
25
M10
12.97
ERSC2510

Application:
