Single Flange Earth Rod Seal

Single Flange Earth Rod Seal

SKU: KES-xx Category: Tag:
Clear
Download PDF

SKU: KES-xx Category: Tag:

Product Information:

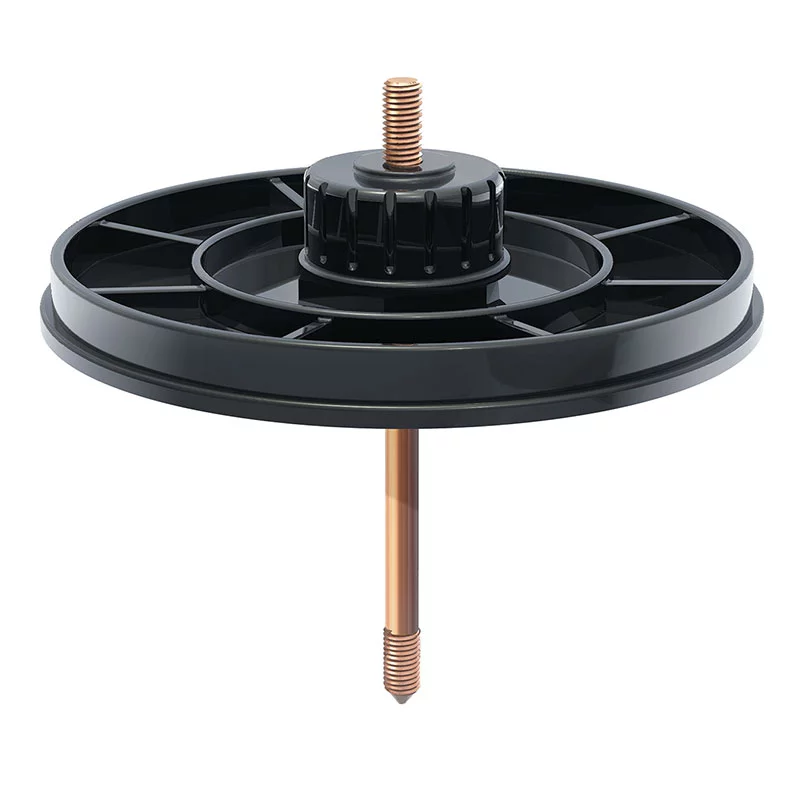

A waterproof earth electrode Single Flange Seal for use in constructions where internal earths are specified.

Features:

Material: High Density Plastic
Standard: BS:EN 62561-5:2011 and an extended 5-day test following BS:EN 62561-5 test conditions

Unique design allows the seals to be used with a broad range of rod diameters. Use with PPIT-G Plastic Inspection Pit.

Benefits: Additional Earth Rods can be driven at a later date, with no additional parts or causing damage to the Earth Rod Seal.

Also available as a Double Flange Earth Rod Seal.

ROD DIA. (in : mm)
ROD TYPE
LENGTH (mm)
WEIGHT (kg)
PART NO.
5/8" UNC
Copperbond
300
1.92
KES-58
3/4" UNC
Copperbond
300
1.92
KES-34
15mm
Solid Copper/Stainless Steel
300
1.92
KES-15
16mm
Solid Copper/Stainless Steel
300
1.92
KES-16
20mm
Solid Copper/Stainless Steel
300
1.92
KES-20

Installation Notes:

Ingress of water from anywhere other than around the Earth Rod Seal is the responsibility of the installation contractor. The Earth Rod Seal flange and components must be free from dust/debris/grease/paint before pouring the concrete (highest quality and fully compacted to ensure sealing).

Performance depends on the integrity of the surrounding concrete. The main concrete slab must not be shuttered out and the Earth Rod Seal fitted later.

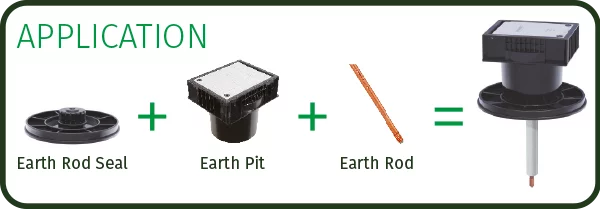

Application:
