Double-Threaded Screw

Double-Threaded Screw

Download PDF

Product Information:

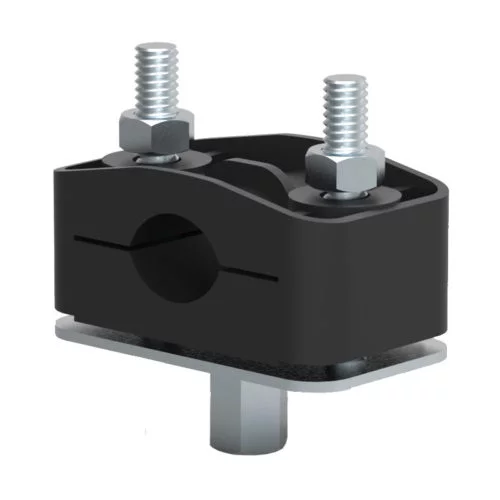

Double-Threaded Screws can be used with an Insulated Lightning Conductor Cable Holders having an M8 insert.

Features:

Material: Galvanised Steel

More Information:

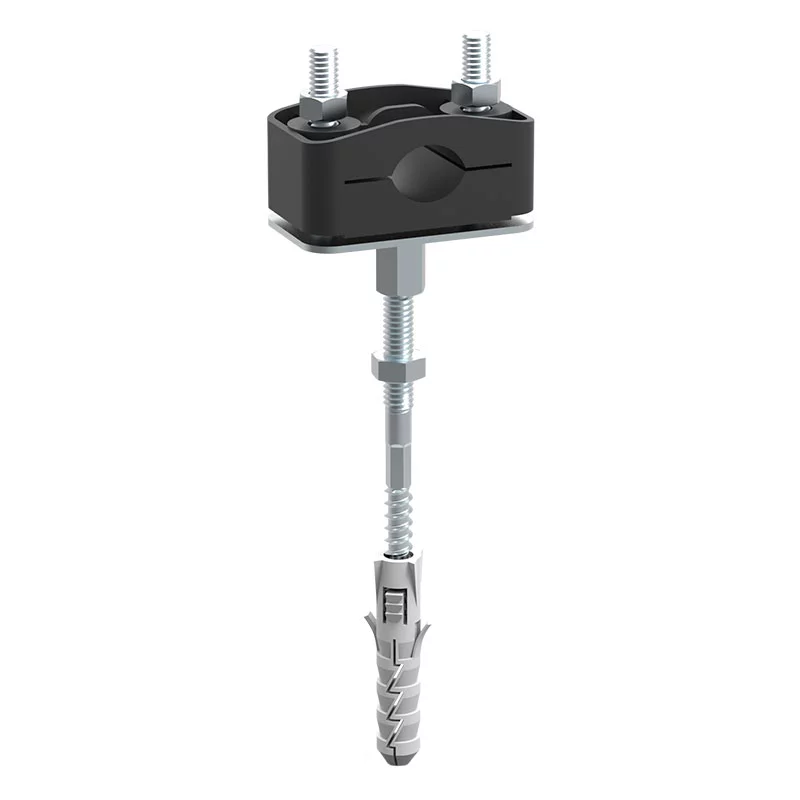

The Double-Threaded Screw is designed to enable the fixing of the Insulated Lightning Conductor Holder into solid surfaces such as brickwork or stone.

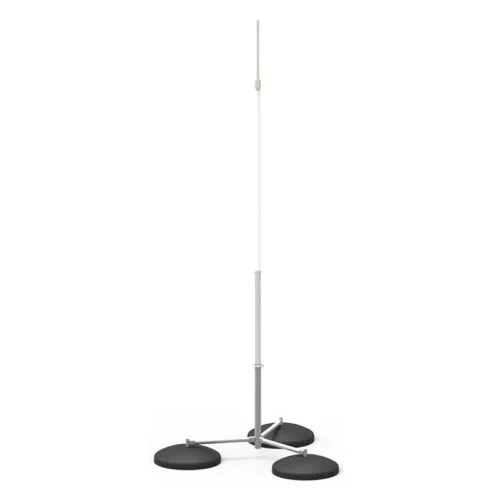

Can be used in the application of an Interception Mast/Air Terminals. Interception Masts are specially designed to be used with the Kingsmill Insulated Lightning Conductor.

The Kingsmill Insulated Lightning Conductor System is used with objects where there is no possibility to maintain separation, due either to lack of sufficient space or simply for aesthetic reasons. Through using Insulated Lightning Conductor, the Air Terminal can be placed closer to the object to be protected-for example, roof-mounted plant or solar PV panels.

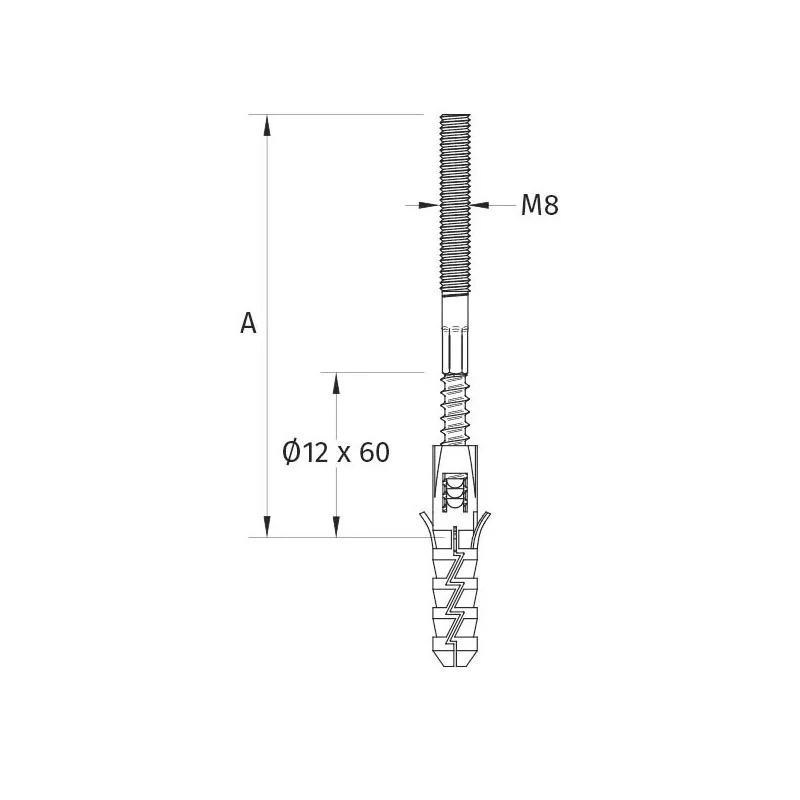

SCREW LENGTH (A) (mm)
WEIGHT (kg)
PART NO.
80
0.18
KM31208001
120
0.29
KM31212001
200
0.53
KM31220001

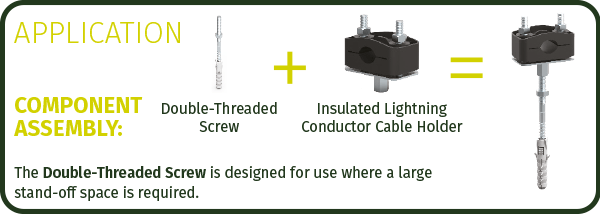

Application:
