Earth Bars with Twin Disconnecting Link

Earth Bars with Twin Disconnecting Link

SKU: EBARxxx-2 Categories: ,
Clear
Download PDF

SKU: EBARxxx-2 Categories: ,

Product Information:

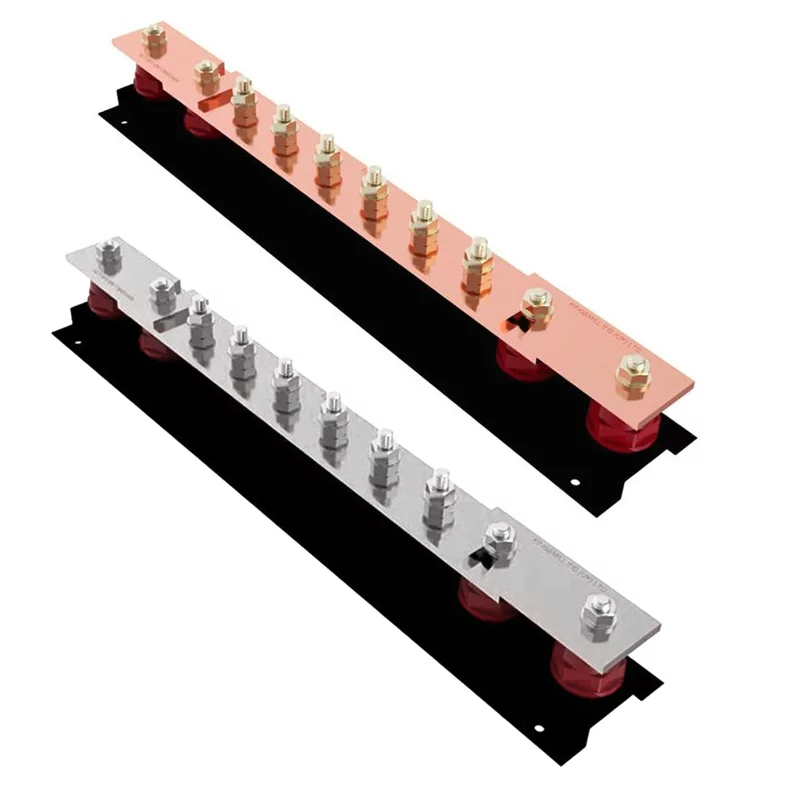

Earth Bars with Twin Disconnecting Link are supplied with a powder-coated base and M10 connections as standard.

Available in copper or tinned.

Features:

Material: Copper (bar), Powder-coated steel (base)
Standard: BS 7430

More Information:

The Twin Disconnecting Link is mainly used to offer a temporary break in the connection to the earth allowing the inspection and testing of multiple Earth Rods/systems while disconnecting it from the Lightning and Earthing system.

Brass bolts are provided as standard.

Other sizes and connections are available on request.

For phosphor bronze add /PB suffix to the part numbers above.

Standard Earth Bars meet the requirements of most applications. However, we can design and manufacture an Earth Bar to suit special applications. Send your specification to us and we will design a bespoke Earth Bar. This design is checked and confirmed by you before work commences.

Our standard Earth Bar Bases feature pre-drilled fixing holes for ease of installation and can be supplied powder-coated to reduce the risk of corrosion. All Earth Bars are manufactured in our dedicated UK factory with a high level of quality control that ensures consistency.

Earth Bars with Twin Disconnecting Link:

DESCRIPTION
DIMENSIONS L x W x H (mm)
WEIGHT (kg)
PART NO.
4 Way Earth Bar with Twin Disconnecting Link
450 x 100 x 90
3.90
EBAR4-2
6 Way Earth Bar with Twin Disconnecting Link
550 x 100 x 90
3.12
EBAR6-2
8 Way Earth Bar with Twin Disconnecting Link
650 x 100 x 90
3.63
EBAR8-2
10 Way Earth Bar with Twin Disconnecting Link
800 x 100 x 90
4.40
EBAR10-2
12 Way Earth Bar with Twin Disconnecting Link
900 x 100 x 90
4.84
EBAR12-2
14 Way Earth Bar with Twin Disconnecting Link
1000 x 100 x 90
5.81
EBAR14-2
16 Way Earth Bar with Twin Disconnecting Link
1100 x 100 x 90
6.04
EBAR16-2
18 Way Earth Bar with Twin Disconnecting Link
1200 x 100 x 90
6.28
EBAR18-2
20 Way Earth Bar with Twin Disconnecting Link
1350 x 100 x 90
7.00
EBAR20-2
22 Way Earth Bar with Twin Disconnecting Link
1450 x 100 x 90
7.47
EBAR22-2
24 Way Earth Bar with Twin Disconnecting Link
1550 x 100 x 90
8.18
EBAR24-2
26 Way Earth Bar with Twin Disconnecting Link
1650 x 100 x 90
8.79
EBAR26-2
28 Way Earth Bar with Twin Disconnecting Link
1750 x 100 x 90
9.28
EBAR28-2
30 Way Earth Bar with Twin Disconnecting Link
1850 x 100 x 90
9.48
EBAR30-2

Tinned Earth Bars with Twin Disconnecting Links:

DESCRIPTION
DIMENSIONS L x W x H (mm)
WEIGHT (kg)
PART NO.
4 Way Tinned Earth Bar with Twin Disconnecting Link
450 x 100 x 90
3.90
EBAR4-2-T
6 Way Tinned Earth Bar with Twin Disconnecting Link
550 x 100 x 90
3.12
EBAR6-2-T
8 Way Tinned Earth Bar with Twin Disconnecting Link
650 x 100 x 90
3.63
EBAR8-2-T
10 Way Tinned Earth Bar with Twin Disconnecting Link
800 x 100 x 90
4.40
EBAR10-2-T
12 Way Tinned Earth Bar with Twin Disconnecting Link
900 x 100 x 90
4.84
EBAR12-2-T
14 Way Tinned Earth Bar with Twin Disconnecting Link
1000 x 100 x 90
5.81
EBAR14-2-T
16 Way Tinned Earth Bar with Twin Disconnecting Link
1100 x 100 x 90
6.04
EBAR16-2-T
18 Way Tinned Earth Bar with Twin Disconnecting Link
1200 x 100 x 90
6.28
EBAR18-2-T
20 Way Tinned Earth Bar with Twin Disconnecting Link
1350 x 100 x 90
7.00
EBAR20-2-T
22 Way Tinned Earth Bar with Twin Disconnecting Link
1450 x 100 x 90
7.47
EBAR22-2-T
24 Way Tinned Earth Bar with Twin Disconnecting Link
1550 x 100 x 90
8.18
EBAR24-2-T
26 Way Tinned Earth Bar with Twin Disconnecting Link
1650 x 100 x 90
8.79
EBAR26-2-T
28 Way Tinned Earth Bar with Twin Disconnecting Link
1750 x 100 x 90
9.28
EBAR28-2-T
30 Way Tinned Earth Bar with Twin Disconnecting Link
1850 x 100 x 90
9.48
EBAR30-2-T
