Flexible Circular Braid Bonds

Flexible Circular Braid Bonds

SKU: CBxxx Categories: , ,
Clear
Download PDF

SKU: CBxxx Categories: , ,

Product Information:

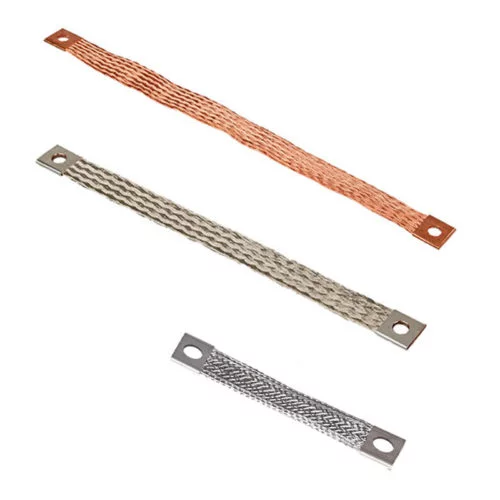

Flexible Circular Copper Braid Bonds are terminated with cable lugs at each end. Use to bond gates, doors, fences, etc.

Features:

Material: Copper / Tinned Copper
Standard: BS:EN 13602

More Information:

An important part of a Lightning Protection System (LPS) is that electrically continuous parts of a structure must be bonded into the Lightning Protection network. The purpose of this bonding is to ensure that, in the event of a lightning discharge, any sparking of flashover of the lightning current to conductive parts of the structure, for example, water pipes, cables, etc are avoided.

Flexible Circular Copper Braid Bonds:

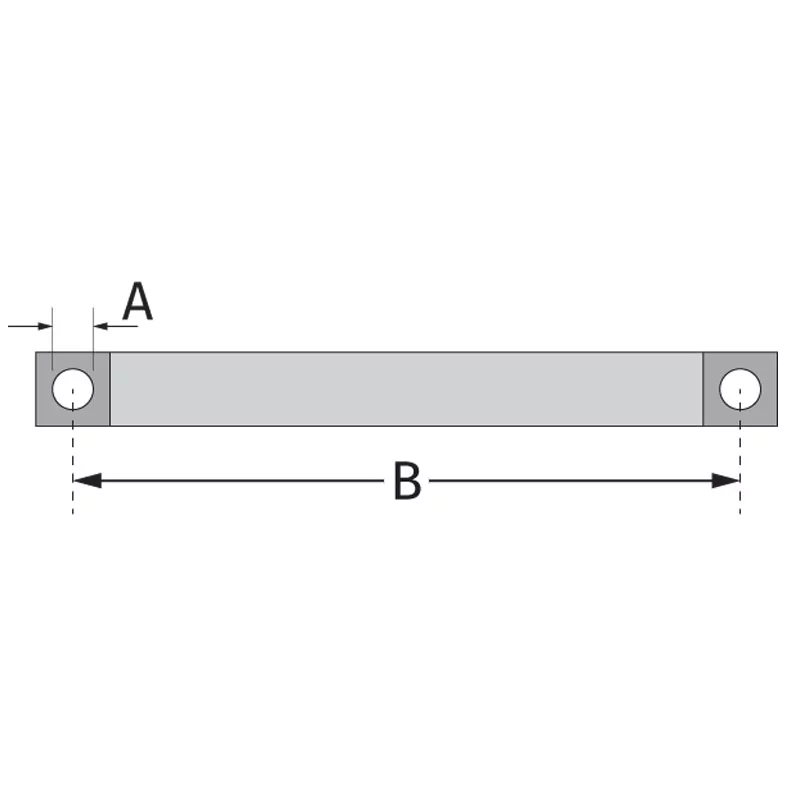

BRAID DIA. (mm)
LENGTH (B) (mm)
HOLE DIA. (A) (mm)
CSA (mm²)
WEIGHT (kg)
PART NO.
4.2
200
7.0
6.0
0.01
CB200/6/7
4.2
400
7.0
6.0
0.02
CB400/6/7
5.4
200
7.0
10
0.02
CB200/10/7
5.4
400
7.0
10
0.04
CB400/10/7
7.0
200
9.0
16
0.03
CB200/16/9
7.0
400
9.0
16
0.06
CB400/16/9
8.5
200
11
25
0.05
CB200/25/11
8.5
400
11
25
0.10
CB400/25/11
11.5
200
11
50
0.10
CB200/50/11
11.5
400
11
50
0.20
CB400/50/11
14.5
200
13
70
0.13
CB200/70/13
14.5
400
13
70
0.25
CB400/70/13
16.0
200
13
95
0.19
CB200/95/13
16.0
400
13
95
0.37
CB400/95/13

Flexible Circular Tinned Copper Braid Bonds:

BRAID DIA. (mm)
LENGTH (B) (mm)
HOLE DIA. (A) (mm)
CSA (mm²)
WEIGHT (kg)
PART NO.
4.2
200
7.0
6.0
0.01
CBT200/6/7
4.2
400
7.0
6.0
0.02
CBT400/6/7
5.4
200
7.0
10
0.02
CBT200/10/7
5.4
400
7.0
10
0.04
CBT400/10/7
7.0
200
9.0
16
0.03
CBT200/16/9
7.0
400
9.0
16
0.06
CBT400/16/9
8.5
200
11
25
0.05
CBT200/25/11
8.5
400
11
25
0.10
CBT400/25/11
11.5
200
11
50
0.10
CBT200/50/11
11.5
400
11
50
0.20
CBT400/50/11
14.5
200
13
70
0.13
CBT200/70/13
14.5
400
13
70
0.25
CBT400/70/13
16.0
200
13
95
0.19
CBT200/95/13
16.0
400
13
95
0.37
CBT400/95/13

Fixings for Circular Copper Braid Bonds:

Fixings for Circular Tinned Copper Braid Bonds:
