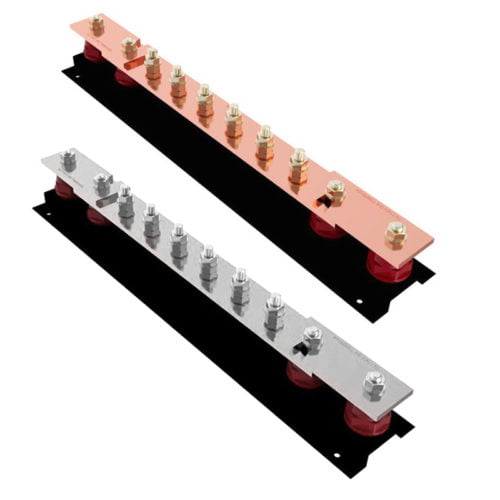

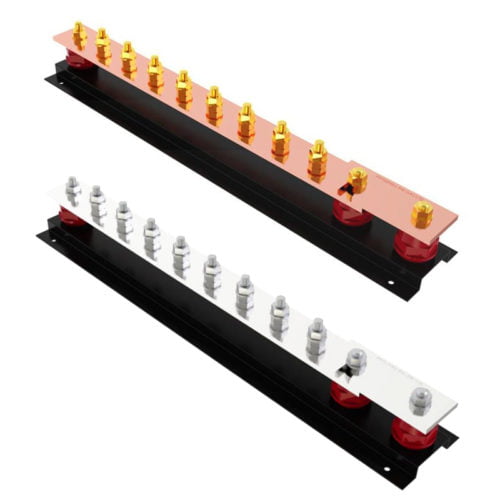

Main Earth Terminals

Main Earth Terminals

SKU: EBARxxxx Categories: ,
Clear
Download PDF

SKU: EBARxxxx Categories: ,

Product Information:

Main Earth Terminals can be used in Earthing and Lightning Protection applications.

Features:

Material for Bare Main Earth Terminal: Copper (Bar), Powder Coated Steel (Base)
Material for Tinned Main Earth Terminal: Tinned Copper (Bar), Powder Coated Steel (Base)
Standard: BS 7430

More Information:

Other sizes are available per request. See the catalog for full material specifications or contact us.

For phosphor bronze add /PB suffix to the part numbers above.

For installing earthing applications, Copper is the recommended material to use whether below or above ground.

Materials used in earthing systems must be able to:

  • withstand mechanical damage,
  • resist corrosion,
  • provide a low impedance path to earth,
  • and carry the maximum fault condition for the application/installation.

Our castings are high quality/high copper content complying with BS 7430 and BS 62561-1. Additional to our range are UL listed Copperbond earth rods and exothermic welding.

Bare Main Earth Terminal:

DESCRIPTION
TERMINALS
DIMENSIONS L x W x H (mm)
WEIGHT (kg)
PART NO.
Main Earth Terminal (38 x 6)
2 x M6/4 x M10
285 x 70 x 80
1.30
EBAR600
Main Earth Terminal (50 x 6)
9 x M8/5 x M12
520 x 90 x 90
3.24
EBAR1000

Tinned Main Earth Terminal:

DESCRIPTION
TERMINALS
DIMENSIONS L x W x H (mm)
WEIGHT (kg)
PART NO.
Main Earth Terminal (38 x 6)
2 x M6/4 x M10
285 x 70 x 80
1.30
EBAR600-T
Main Earth Terminal (50 x 6)
9 x M8/5 x M12
520 x 90 x 90
3.24
EBAR1000-T

Fixings:

Fixings for attaching the Earth Bar to a wall are not included.

We recommend either brass roundhead screws No.12 x 1.5” (BRHW1.5-12) or stainless steel roundhead screws No.12 x 1.5” (A2RHSLT1.5-12) plus plastic wall plug (PP12).

EARTH BAR LENGTHFIXINGS/BAR
Up to 500mm4
500mm - 1000mm6
1001mm - 1500mm8
1501mm - 1700mm10
1701mm +12
