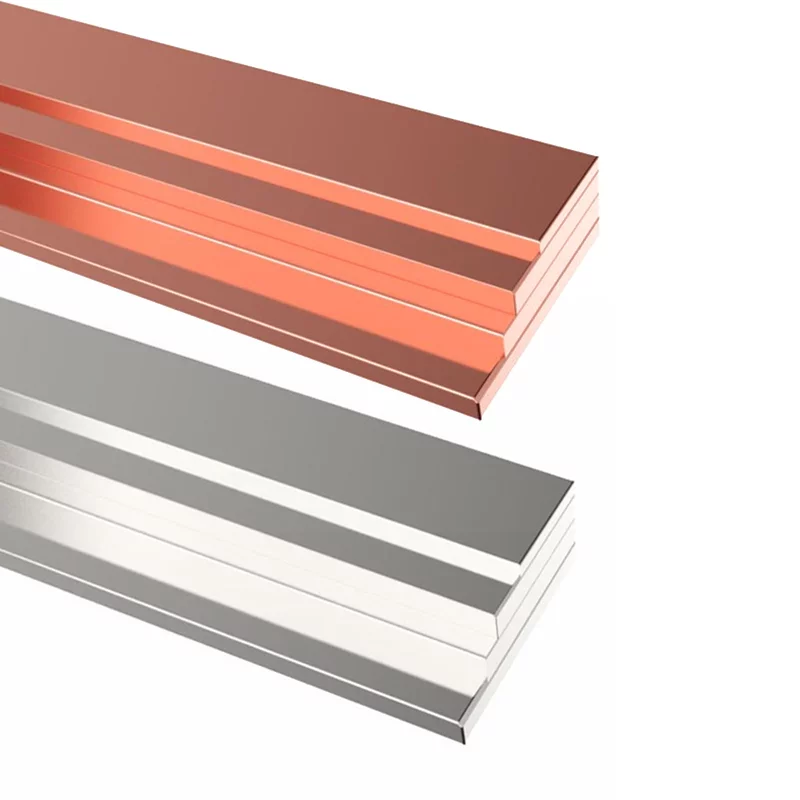

Hard Drawn Copper Bars

Hard Drawn Copper Bars

SKU: CBHDxxxx Categories: ,
Clear
Download PDF

SKU: CBHDxxxx Categories: ,

Product Information:

Hard Drawn Copper Bars can be used for Earthing and Lightning Protection applications.

Features:

Material: Copper/Tinned Copper
Standard: BS:EN 12163

More Information:

Hard Drawn Copper Bars are sold per meter and require a maximum of 4 meter lengths. Other sizes and lengths are available on request.

Materials used in earthing systems must be able to:

  • withstand mechanical damage,
  • resist corrosion,
  • provide a low impedance path to earth,
  • and carry the maximum fault condition for the application/installation.

Our castings are high quality/high copper content complying to BS 7430 and BS 62561-1. Additional to our range are UL listed copperbond earth rods and exothermic welding.

Hard Drawn Copper Bars:

CONDUCTOR SIZE (X x Y) (mm)
CSA (mm²)
WEIGHT (kg/m)
PART NO.
25 x 3
75
0.67
CBHD2530
25 x 6
150
1.34
CBHD2560
31 x 3
93
0.83
CBHD3130
38 x 3
114
1.01
CBHD3830
38 x 6
228
2.03
CBHD3860
50 x 6
300
2.67
CBHD5060
50 x 10
500
4.45
CBHD5010
60 x 6
600
3.20
CBHD6060
75 x 6
450
4.00
CBHD7506
100 x 6
600
5.34
CBHD1006

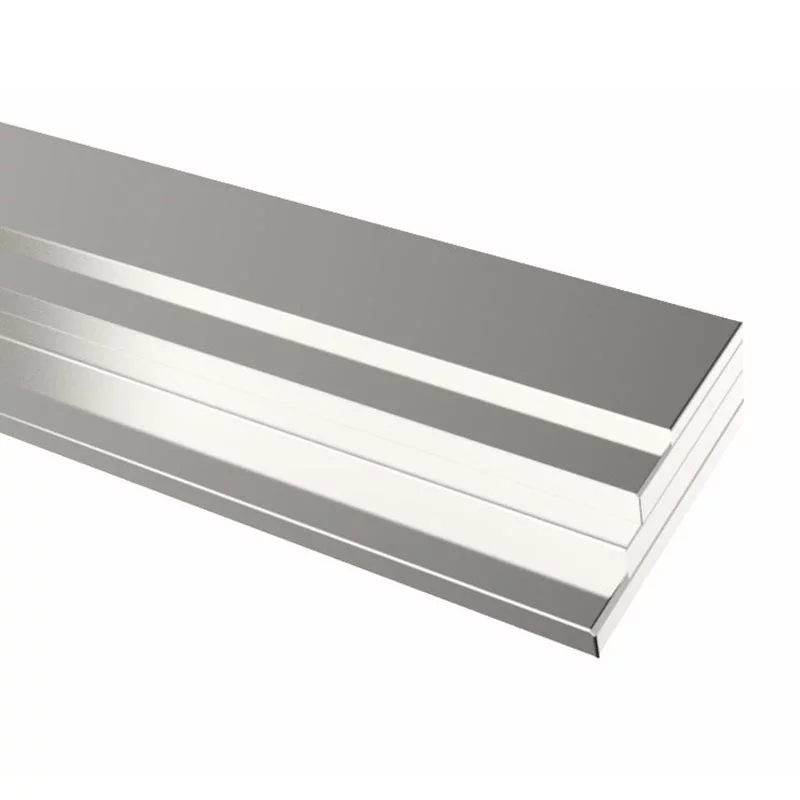

Hard Drawn Copper Bars (Tinned):

CONDUCTOR SIZE (X x Y) (mm)
CSA (mm²)
WEIGHT (kg/m)
PART NO.
25 x 3
75
0.67
CBHD2530/T
25 x 6
150
1.34
CBHD2560/T
50 x 6
300
2.67
CBHD5060/T
