Extended Seal Tubes

Extended Seal Tubes

SKU: KES-TUBE-xxxx Category:
Clear
Download PDF

SKU: KES-TUBE-xxxx Category:

Product Information:

Extended Seal Tubes are used to create longer tube lengths with the application of the Double Flange Earth Rod Seal that come standard at 300mm long. Longer tube lengths are available ranging from 500mm to 3000mm.

Features:

Longer lengthed Extended Seal Tubes are available 500mm, 1200mm, 2000mm, and 3000mm.

More Information:

Kingsmill Double Flange Earth Rod Seals have been designed for use in concrete slabs with a nominal thickness of 300mm. They will withstand a pressure of up to 80psi (5.5 bar) and have been tested accordingly.

Benefits: Additional Earth Rods can be driven at a later date, with no additional parts or causing damage to the Earth Rod Seal.

DESCRIPTION
LENGTH (mm)
WEIGHT (kg)
PART NO.
500mm Seal Tube
500
0.12
KES-TUBE-500
1200mm Seal Tube
1200
0.28
KES-TUBE-1200
2000mm Seal Tube
2000
0.47
KES-TUBE-2000
3000mm Seal Tube
3000
0.70
KES-TUBE-3000

Installation Notes:

Ingress of water from anywhere other than around the Earth Rod Seal is the responsibility of the installation contractor. The Earth Rod Seal flange and components must be free from dust/debris/grease/paint before pouring the concrete (highest quality and fully compacted to ensure sealing).

Performance depends on the integrity of the surrounding concrete. The main concrete slab must not be shuttered out and the Earth Rod Seal fitted later.

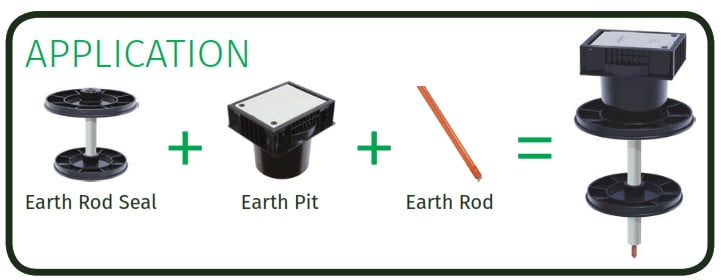

Application:
