Flexible DC Clip Bases

Flexible DC Clip Bases

SKU: PCxxx/BASE Category: Tag:
Clear
Download PDF

SKU: PCxxx/BASE Category: Tag:

Product Information:

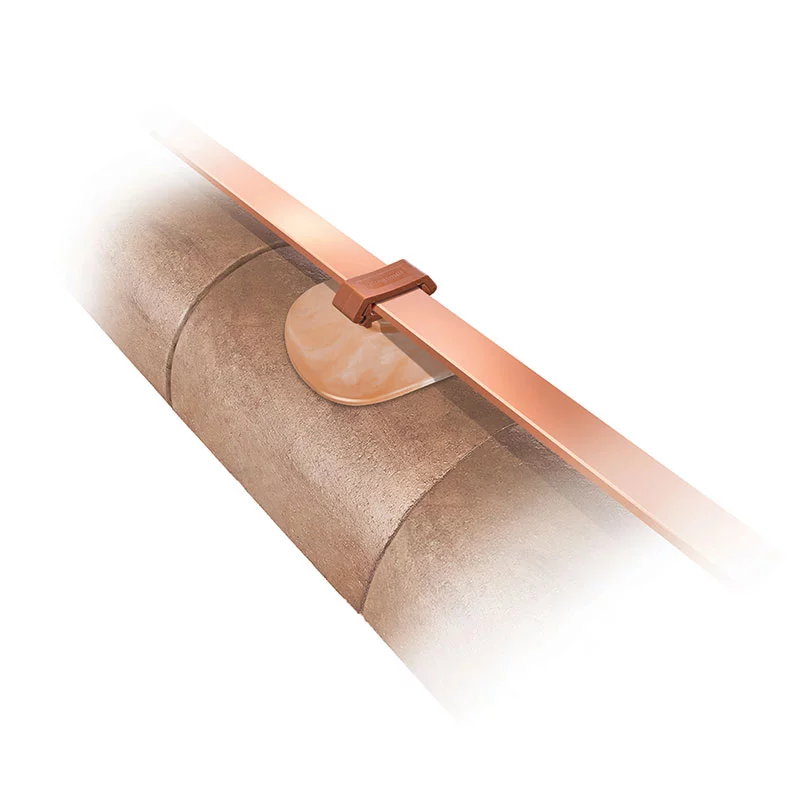

The Kingsmill Flexible DC Clip Base is designed for fixing to curved spaces such as ridge tiles.

Supplied with an M6 CSK screw for attaching the clip.

Features:

Material: Polypropylene

More Information:

Flexible DC Clip Bases can be used with our DC Clip and Square Clamp ranges.
When choosing a connector it is important to ensure:

  • The connector is mechanically robust.
  • The connector is selected according to its application.
  • The connector is rated for its application.
  • To avoid bimetallic corrosion-use a bimetallic connector (do not connect bare copper directly to bare aluminium, or have water run-off from copper, fall into aluminium).
Galvanic corrosion happens when there is a potential difference between dissimilar metals:
  • When the materials are in contact in the presence of an electrolyte, corrosion occurs. One metal becomes the anode, the other the cathode. The anode will tend to go into solution and therefore corrode. The electrolyte can be water with impurities from the air.
  • In the instance of water run-off from copper- the water carries fine copper corrosion particles which, when they drop on to aluminium or zinc, may result in corrosion. The direct contact of the dissimilar metals is not required for corrosion to occur in such a case.
DESCRIPTIONCOLOUR
WEIGHT (kg)
PART NO.
Flexible Self-Adhesive DC CLIP BASEBrown
0.037
PCBNFAD/BASE
Flexible Self-Adhesive DC CLIP BASEGrey
0.037
PCGYFAD/BASE
Flexible DC CLIP BASEBrown
0.011
PCBNF/BASE
Flexible DC CLIP BASEGrey
0.011
PCGYF/BASE

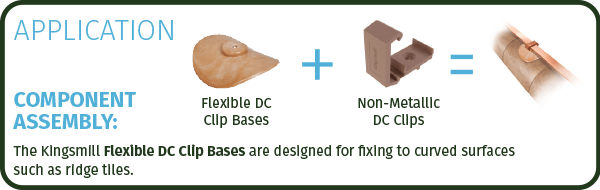

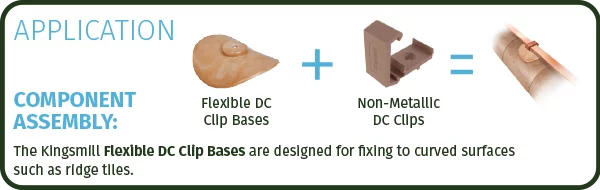

Application:
