Free-Standing Air Terminal Mast

Free-Standing Air Terminal Mast

Clear
Download PDF

Product Information:

Free-Standing Air Terminals are suitable for wind speeds ranging from 93 kmph to 258 kmph.

Features:

Each Free-Standing Air Terminal Mast is manufactured from 16mm diameter aluminium, for lightness, and supplied with:

  • 40 mm Diameter Aluminium Mast
  • Aluminium Conductors
  • Stainless Steel Tripod Base
  • Steel Threaded Mounting Pin
  • Circular Concrete Mounting Blocks
  • Mounting Block Covers
  • Mounting Bracket for connection from the Air Terminal to the roof conductor.

More Information:

The Supplied Mast to Roof Conductor Connector and Mounting Bracket is suitable for either copper to aluminium 8mm or 25 x 3mm conductors.

The supplied Mounting Block Covers help to protect the waterproof roof covering from mechanical damage.

The foldable Stainless Steel Tripod Base makes for easy handling and lower delivery costs. Manufactured from box section, the base has great rigidity and is resistant to corrosion. Being foldable, the base is easy to carry and transport which means lower freight costs.

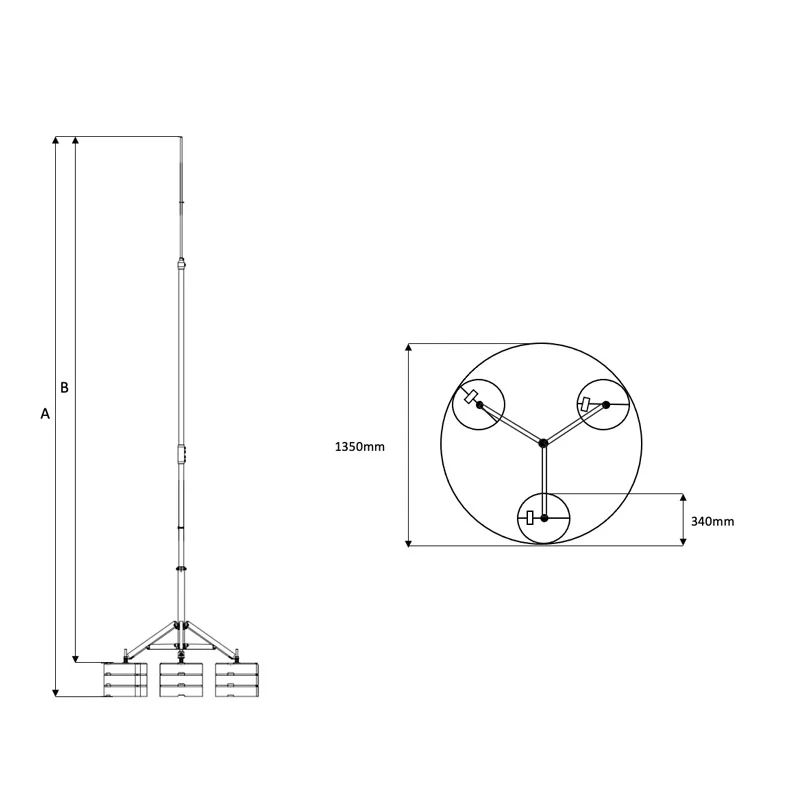

TOTAL HEIGHT (A) (mm)
MAST HEIGHT (B) (m)
TOTAL WEIGHT (kg)
WIND LOADING (kmph)
MPH
NO. OF BLOCKS
PART NO.
3215
3
59
155
248
3
KM68013009
3300
3
107
213
341
6
KM68023009
3385
3
155
258
413
9
KM68033009
3715
3.5
61
116
186
3
KM68013509
3800
3.5
109
159
254
6
KM68023509
3885
3.5
157
192
307
9
KM68033509
4215
4
61
116
186
3
KM68014009
4300
4
109
159
254
6
KM68024009
4385
4
157
192
307
9
KM68034009
4715
4.5
62
93
149
3
KM68014509
4800
4.5
110
127
203
6
KM68024509
4885
4.5
158
153
245
9
KM68034509
4970
4.5
206
175
280
12
KM68044509
5215
5
63
93
149
3
KM68015009
5300
5
111
127
203
6
KM68025009
5385
5
159
153
245
9
KM68035009
5470
5
207
175
280
12
KM68045009
5800
5.5
112
106
170
6
KM68025509
5885
5.5
160
127
203
9
KM68035509
5970
5.5
208
146
234
12
KM68045509
6055
5.5
256
149
238
15
KM68055509
6300
6
112
106
170
6
KM68026009
6385
6
160
127
203
9
KM68036009
6470
6
208
146
234
12
KM68046009
6555
6
256
149
238
15
KM68056009
6800
6.5
113
97
155
6
KM68026509
6885
6.5
161
117
187
9
KM68036509
6970
6.5
209
133
213
12
KM68046509
7055
6.5
257
140
224
15
KM68056509
7300
7
114
97
155
6
KM68027009
7385
7
162
117
187
9
KM68037009
7470
7
210
133
213
12
KM68047009
7555
7
258
140
224
15
KM68057009
8385
8
162
101
162
9
KM68038009
8470
8
210
116
186
12
KM68048009
8555
8
258
122
195
15
KM68058009
