Lightning Current Arrester for Coaxial Lines (N Connector)

Lightning Current Arrester for Coaxial Lines (N Connector)

Type: D1, C2
Location: ST 1+2

Download PDF

Product Information:

Lightning current arrester for the protection of coaxial lines and telecommunication equipment against the impact of direct or indirect lightning strikes.

Suitable for combined and power supply installations.

Features:

  • N Connectors
  • Use on systems up to 70 volts
  • 50Ω wave impedance

Benefits: Simple installation. Universal plastic adapter for mounting on DIN rail and GND 2 holder

Standards: EN 61643-11 (Surge Protection Devices)

Application: Install at the boundary of LPZ0 and LPZ1 zones at the line entry into the building.

More Information:

Where low voltage, data, and telecom lines enter and exit the building, they must also be included in the Lightning Protection System. These include:

  • Electromagnetic shielding
  • Telephone lines
  • Data communication lines
  • Instrumentation, control, signalling lines
  • Coaxial lines for CCTV, TV, & antenna cables

Field-based electronic equipment also needs to be protected.

By their nature, low voltage, data, and telecom lines are not as robust as mains power cables and as such do not carry the same magnitude of lightning current. However, the size of that voltage/current is large in comparison to the system operating voltage and, as such, these lightning-induced transients can still cause irreparable and expensive damage.

Since transients can be induced from the large electromagnetic field created during a lightning strike, care needs to be taken over the routeing of such cables.

When selecting a data, telephone, or low voltage protector, extra care must be taken to ensure that the clamping performance of the SPD does not impede the data/signal transmission voltage.

Electrical Specification:

Order number
KM-HX-090 N50 F/M
Maximum operating voltageUc
70V DC
Nominal load currentIL
6A
C2 Nominal discharge current (8/20μs) core-PEIn
10kA
D1 Impulse discharge current (10/350μs) core-PEIimp
2.5kA
C3 Voltage protection level mode core-PE at 1kV/μsUp
600V
Response time core-PEta
100ns
PowerP
95W
Wave impedanceZ
50Ω
Bandwidth (min - max)f
0MHz - 3500MHz
Insertion attenuation
0.1dB
SWRSWR
1.2
Connection (input - output)
N50
Degree of protection
IP66
Range of operating temperatures (min - max)
-40°C - +80°C
According to standard
EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012 / D1, C2
ETIM Class
EC001466
Weight
155g (nett), 175g (gross)

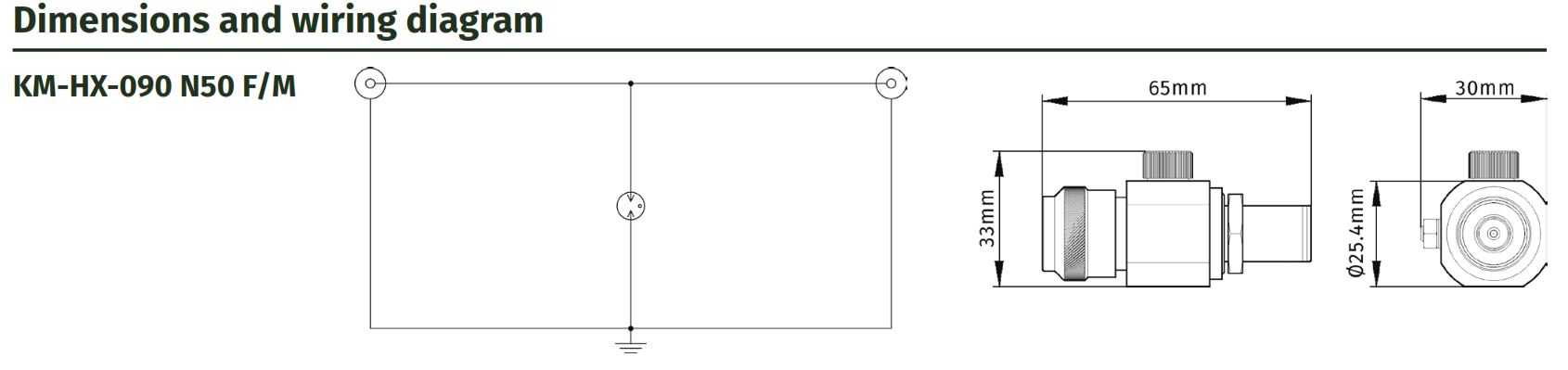

Dimensions and Wiring Diagram for Lightning Current Arrester for Coaxial Lines (N Connector):
