Type 1+2 Lightning Current and Surge Arrester (KM1+2-25-1+0 SC)

Type 1+2 Lightning Current and Surge Arrester (KM1+2-25-1+0 SC)

SKU: KM1+2-25-1+0 SC Category: Tag:

System: Single Phase TN-C/1 Pole

Nominal Voltage: 230V AC

Download PDF

SKU: KM1+2-25-1+0 SC Category: Tag:

Product Information:

High-performance Single Pole Combined Type 1+2 Lightning Current and Surge Arrester. Use in TN-C system main distribution boards on the boundary of LPZ0 and LPZ1 and sub-distribution boards on the boundary of LPZ1 and LPZ2 (if >100m away from the MDB).

Suitable for houses, commercial and industrial buildings.

Kingsmill’s coordinated mains devices provide complete protection from the entry point to equipment.

Features:

  • Remote signalling
  • Reversible installation
  • Biconnect terminals
  • Locking pluggable modules
  • Optical lifetime status indication

Benefits: No follow-through current. No leakage current. Coordinated range (install in close proximity to each other)

Standards: BS:EN 62305 (Lightning Protection) and EN 61643-11 (Surge Protection Devices).

LPL I + II
System: Single Phase TN-C
MDB: Boundary of LPZ0 and LPZ1
SDB: Boundary of LPZ1 and LPZ2 if >100m away from MDB.

More Information:

A lightning surge protection device prevents damage to electrical and electronic equipment from transient over-voltage events by blocking or redirecting surge current to the ground instead of passing through the equipment. In a well -designed system, it is important that for each building, both the incoming and outgoing circuits are protected by surge protection devices (where the cables enter and exit the building).

This includes:

  • Mains power supplies – including UPS
  • Telephone lines
  • Data communication lines
  • Instrumentation, control, signaling lines
  • Coaxial lines for CCTV, TV, & antenna cables

Field based electronic equipment also need to be protected.

PHASE
EARTHING SYSTEM
POLES
LPL
MAX DISCHARGE CURRENT (10/350µs)
PART NO.
OneTN-C1 I & II25kAKM1+2-25-1+0 SC

Spare Modules:

Spare modules are available. Replace when fault indication indicator turns from green to red.

DESCRIPTION
ORDER NUMBER
Spare Module L-N (L-PE)
KM1+2-12.5

Electrical Specifications:

Order number
KM1+2-25-1+0 SC
System
Single phase TN-C/1 pole
Nominal voltageUn
230V AC
Nominal voltageUO
230V/400V AC ± 10%
Maximum operating voltageUc
260V AC
Nominal load current for "V" connectionIL
125A
Lightning impulse current (10/350μs)Iimp
25kA
Nominal discharge current (8/20μs)In
30kA
Maximum discharge current (8/20μs)Imax
60kA
Voltage protection levelUp
1.5kV
Short-circuit current ratingISCCR
50kA
Maximum overcurrent protection
250A gL/gG
Maximum overcurrent protection for "V" connection
125A gL/gG
Response time L-N/N-PEta
100ns
Cross-section of connected conductors solid (min - max)
2.5mm² - 50mm²
Cross-section of connected conductors stranded (min - max)
2.5mm² - 35mm²
Fault indication
Red indication field
Remote indication
Potential-free change-over contact
Remote indication contacts
250V/0.5A AC, 250V/0.1A DC
Cross-section of remote indication conductors
1.5mm²
Degree of protection
IP20
Range of operating temperatures (min - max)
-40°C - +80°C
Mounting
DIN rail 35mm
According to standard
EN 61643-11:2012, IEC 61643-11:2011 / T1, T2
Weight
335g (nett), 365g (gross)

LPL:

LPL I + II
SYSTEM:SINGLE PHASE TN-C
MDB:BOUNDARY of LPZ0 & LPZ1
SDB:BOUNDARY of LPZ1 & LPZ2 (if >100m away from MDB)

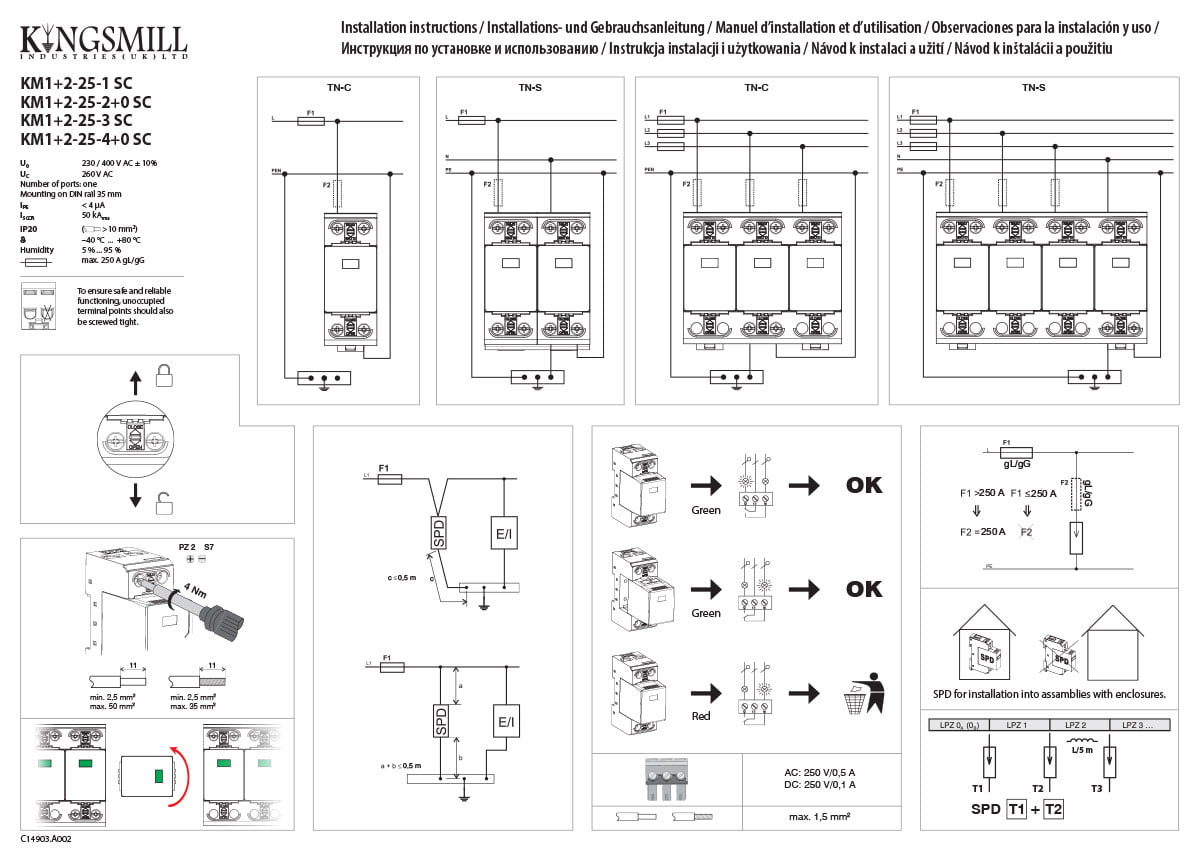

Click The Image below to Download Installation Guide PDF:
