Slate Holdfasts (Flat and Circular Conductor)

Slate Holdfasts (Flat and Circular Conductor)

SKU: SHxxx/PUSH Category: Tag:
Clear
Download PDF

SKU: SHxxx/PUSH Category: Tag:

Product Information:

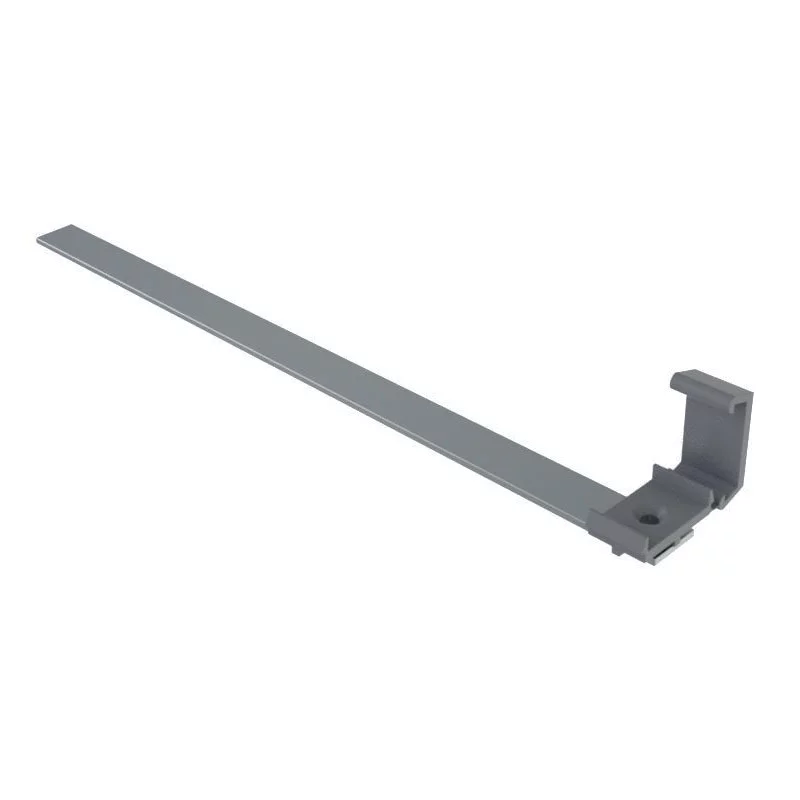

Kingsmill Slate Holdfasts are used for the installation of circular conductor tape above the roof tiles without the need for drilling holes.

Features:

Material: Polypropylene clip/Aluminium tape
Standard: Aluminium tape to BS:EN 755-5

More Information:

The aluminium tail slides under the roof tile and is fixed to the wooden beam or tile batten using proprietary galvanised nails. The clip then protrudes from the tile and offers a fixing for the tape.

When choosing a connector it is important to ensure:

  • The connector is mechanically robust.
  • The connector is selected according to its application.
  • The connector is rated for its application.
  • To avoid bimetallic corrosion-use a bimetallic connector (do not connect bare copper directly to bare aluminium, or have water run-off from copper, fall into aluminium).

Galvanic corrosion happens when there is a potential difference between dissimilar metals:

  • When the materials are in contact in the presence of an electrolyte, corrosion occurs. One metal becomes the anode, the other the cathode. The anode will tend to go into solution and therefore corrode. The electrolyte can be water with impurities from the air.
  • In the instance of water run-off from copper- the water carries fine copper corrosion particles which, when they drop on to aluminium or zinc, may result in corrosion. The direct contact of the dissimilar metals are not required for corrosion to occur in such a case.

For Use with Circular Conductor:

CONDUCTOR DIA (mm)
CONDUCTOR TYPECOLOUR
WEIGHT (kg)
PART NO.
8
BareBrown
0.05
SHBN08B/PUSH
8
BareGrey
0.05
SHGY08B/PUSH
8
PVC CoveredBrown
0.05
SHBN08P/PUSH
8
PVC CoveredGrey
0.05
SHGY08P/PUSH
8
PVC CoveredBlack
0.05
SHBL08P/PUSH
8
PVC CoveredStone
0.05
SHST08P/PUSH
8
PVC CoveredWhite
0.05
SHWH08P/PUSH

For Use with Flat Conductor:

CONDUCTOR SIZE (mm)
CONDUCTOR TYPECOLOUR
WEIGHT (kg)
PART NO.
25 x 3
BareBrown
0.05
SHBN253B
25 x 3
BareGrey
0.05
SHGY253B
25 x 3
PVC CoveredBrown
0.05
SHBN253P
25 x 3
PVC CoveredGrey
0.05
SHGY253P
25 x 3
PVC CoveredBlack
0.05
SHBL253P
25 x 3
PVC CoveredStone
0.05
SHST253P
25 x 3
PVC CoveredGreen
0.05
SHGN253P
25 x 3
PVC CoveredWhite
0.05
SHWH253P
