Product Information:

Made from austenitic steel according to British standards.

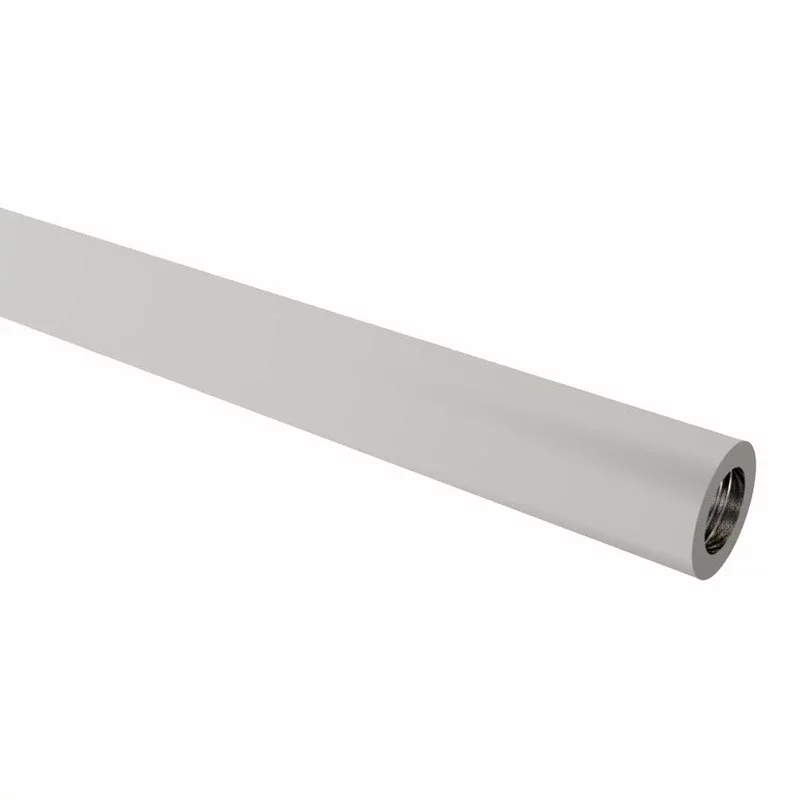

Stainless Steel Earth Rods are similar to our Solid Copper Rods but are more anodic than copper, and are useful where galvanic corrosion might occur due to buried dissimilar metals being in close proximity to each other. The current carrying capacity of the Stainless Steel Earth Rod in relation to copper is poor.

Recommended for clay soils and marine/shore environments.

Features:

Material: Stainless steel
Standard: BS:EN 62561-2, BS 7430

More Information:

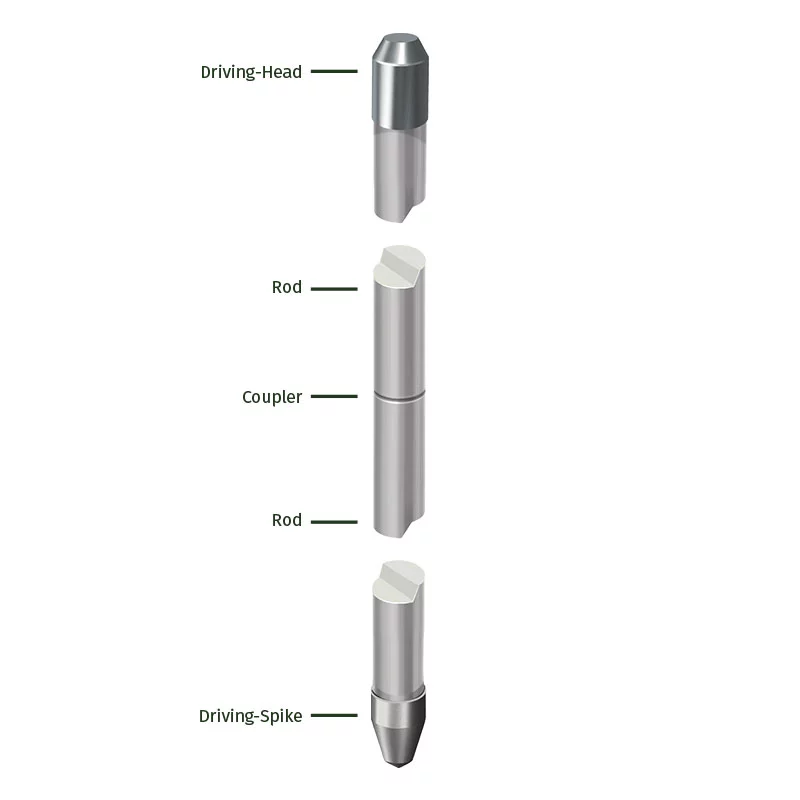

Stainless Steel Earth Rods have a tapped hole at each end which allows them to be joined together by means of a Coupling Dowel and can, if required, be supplied in different grades.

An Earth Termination Network must:

  • protect life,
  • provide a low resistivity path to earth,
  • allow circuit protection devices to operate correctly,
  • carry high currents repeatedly,
  • have excellent corrosion resistance properties, and
  • be mechanically robust.
LENGTH (mm)
DIAMETER (mm)
INTERNAL THREAD (mm)
WEIGHT (kg)
PART NO.
1200
16
M10
1.87
ERSS1604
1500
16
M10
2.34
ERSS1605
1800
16
M10
2.81
ERSS1606
2400
16
M10
3.75
ERSS1608
3000
16
M10
4.69
ERSS1610
1200
20
M10
2.96
ERSS2004
1500
20
M10
3.65
ERSS2005
1800
20
M10
4.38
ERSS2006
2400
20
M10
5.84
ERSS2008
3000
20
M10
7.30
ERSS2010
1200
25
M10
4.89
ERSS2504
1500
25
M10
6.12
ERSS2505
1800
25
M10
7.34
ERSS2506
2400
25
M10
9.79
ERSS2508
3000
25
M10
12.24
ERSS2510
