Standing Seam Clamps (Aluminium)

Standing Seam Clamps (Aluminium)

SKU: KMFBAL-xxx Category: Tag:
Clear
Download PDF

SKU: KMFBAL-xxx Category: Tag:

Product Information:

Standing Seam Clamps are designed to allow the installer to secure Lightning Conductors to roofing sheets that use the Standing Seam construction.

Features:

Material: Stainless Steel
Seam Widths: 16 – 30mm.

More Information:

The Standing Seam Clamp can be used with a range of other fittings and is supplied with an M6 stainless steel bolt and nut for securing the chosen accessory.
When choosing a connector it is important to ensure:

  • The connector is mechanically robust.
  • The connector is selected according to its application.
  • The connector is rated for its application.
  • To avoid bimetallic corrosion-use a bimetallic connector (do not connect bare copper directly to bare aluminium, or have water run-off from copper, fall into aluminium).
Galvanic corrosion happens when there is a potential difference between dissimilar metals:
  • When the materials are in contact in the presence of an electrolyte, corrosion occurs. One metal becomes the anode, the other the cathode. The anode will tend to go into solution and therefore corrode. The electrolyte can be water with impurities from the air.
  • In the instance of water run-off from copper- the water carries fine copper corrosion particles which, when they drop on to aluminium or zinc, may result in corrosion. The direct contact of the dissimilar metals is not required for corrosion to occur in such a case.

Aluminium Standing Seam Clamps:

FIXING TYPE
CONDUCTOR SIZE
(mm)
CONDUCTOR
MATERIAL
WEIGHT
(kg)
PART NO.

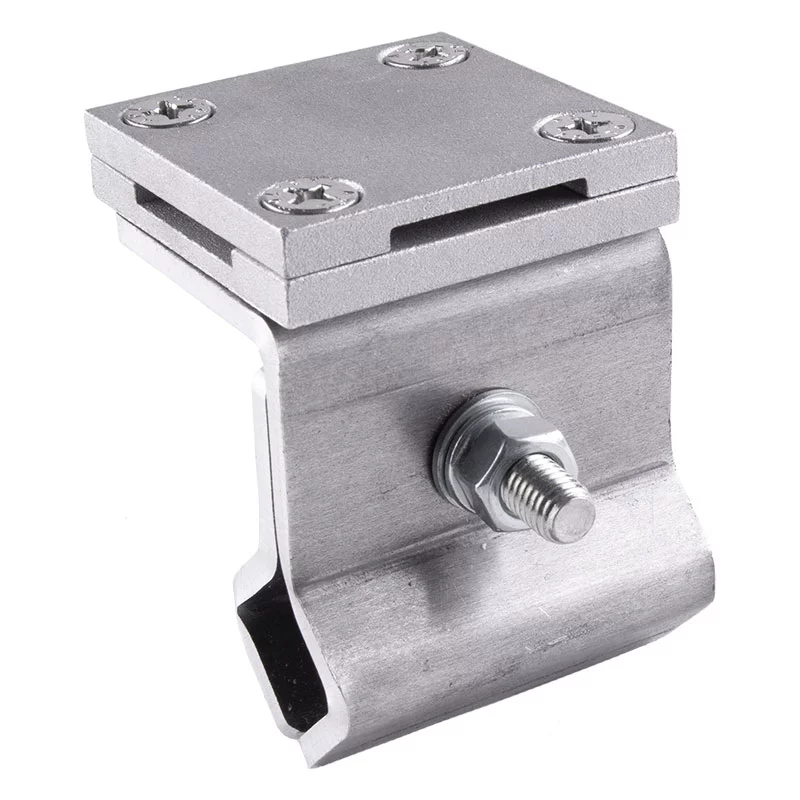

Square Clamp Standard Design
25 x 3
Aluminium
0.168
KMFBAL-SQCA253

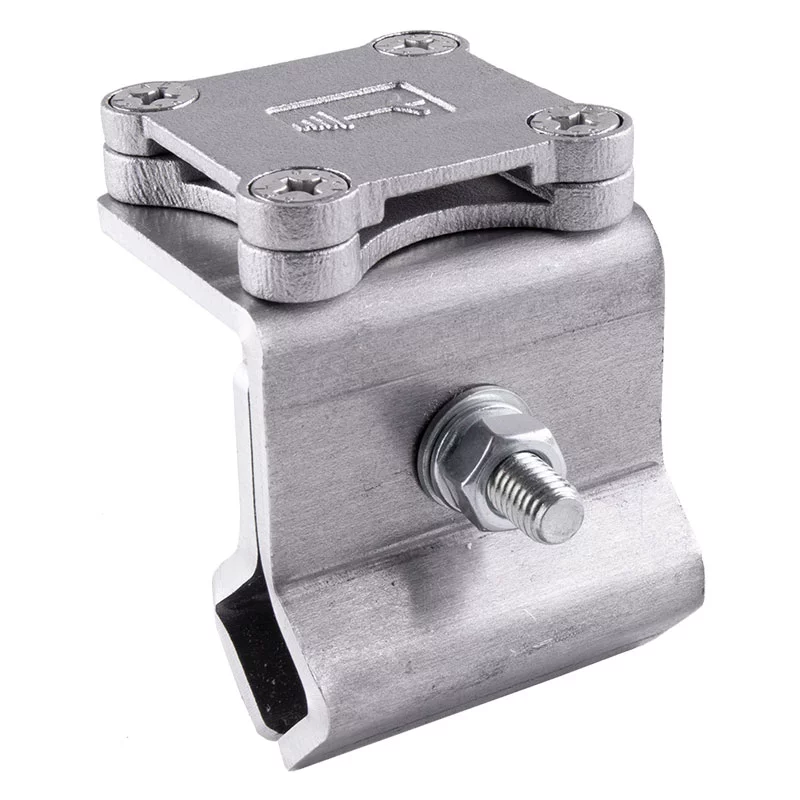

Square Clamp Hot Stamped Design
25 x 3
Aluminium
0.168
KMFBAL-SQCAF253
Standing Seam Only
-
-
0.095
KMFBAL
