Standing Seam Clamps (Stainless Steel)

Standing Seam Clamps (Stainless Steel)

SKU: KMFBSS-xxx Category: Tag:
Clear
Download PDF

SKU: KMFBSS-xxx Category: Tag:

Product Information:

Standing Seam Clamps are designed to allow the installer to secure Lightning Conductors to roofing sheets that use the Standing Seam construction.

Features:

Material: Aluminium/Stainless Steel
Seam Widths: 16 – 30mm.

More Information:

The Standing Seam Clamp can be used with a range of other fittings and is supplied with an M6 stainless steel bolt and nut for securing the chosen accessory.
When choosing a connector it is important to ensure:

  • The connector is mechanically robust.
  • The connector is selected according to its application.
  • The connector is rated for its application.
  • To avoid bimetallic corrosion-use a bimetallic connector (do not connect bare copper directly to bare aluminium, or have water run-off from copper, fall into aluminium).
Galvanic corrosion happens when there is a potential difference between dissimilar metals:
  • When the materials are in contact in the presence of an electrolyte, corrosion occurs. One metal becomes the anode, the other the cathode. The anode will tend to go into solution and therefore corrode. The electrolyte can be water with impurities from the air.
  • In the instance of water run-off from copper- the water carries fine copper corrosion particles which, when they drop on to aluminium or zinc, may result in corrosion. The direct contact of the dissimilar metals is not required for corrosion to occur in such a case.
  • Stainless Steel Standing Seam Clamps:

    FIXING TYPE
    CONDUCTOR SIZE
    (mm)
    CONDUCTOR
    MATERIAL
    FIXING
    COLOUR
    WEIGHT
    (kg)
    PART NO.
    Non-Metallic
    DC Clip
    25 x 3
    Bare Aluminium
    Grey
    0.16

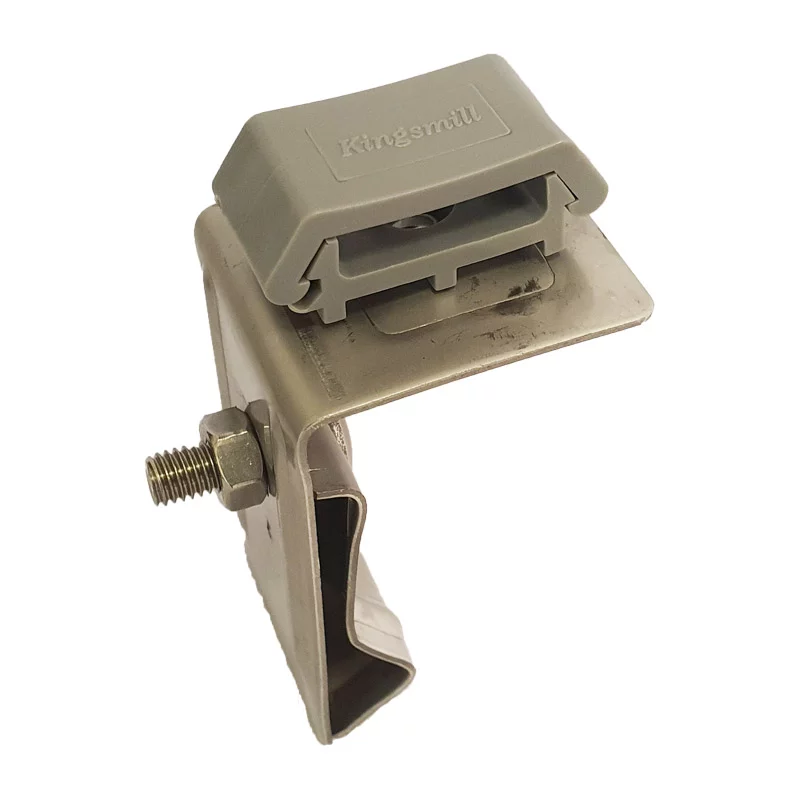

    KMFBSS-PCGY253B
    25 x 3
    PVC Aluminium
    Grey
    0.16
    KMFBSS-PCGY253P
    Metallic
    DC Clip
    25 x 3
    Bare Aluminium
    -
    0.18

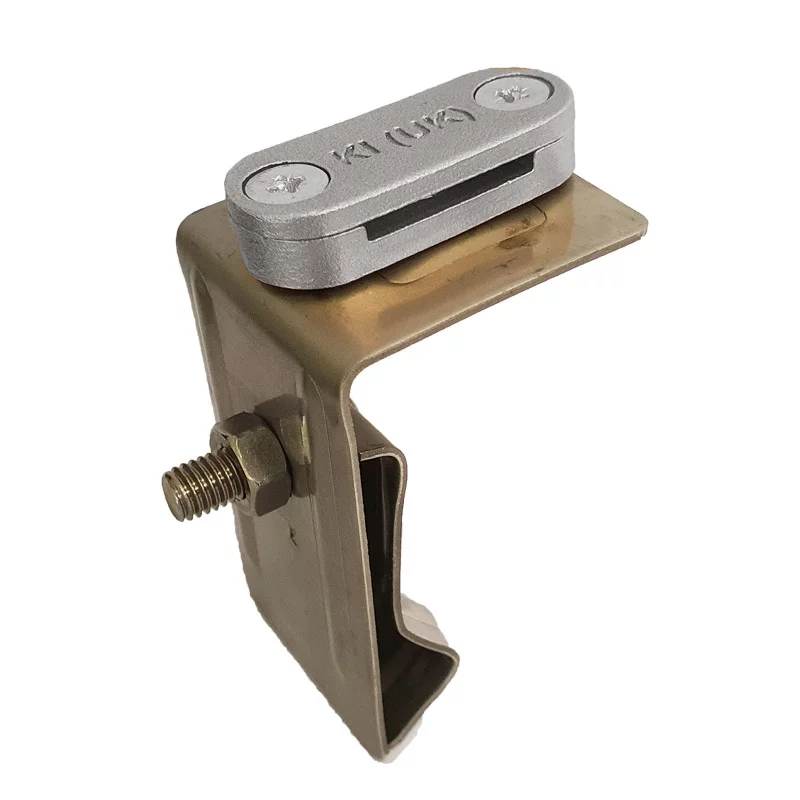

    KMFBSS-MDA253
    25 x 3
    PVC Aluminium
    -
    0.19
    KMFBSS-MDA253P
    Push-In
    Clip
    8mm dia
    Bare Aluminium
    Grey
    0.16
    KMFBSS-PCGY08B/PUSH
    8mm dia
    PVC Aluminium
    Grey
    0.16

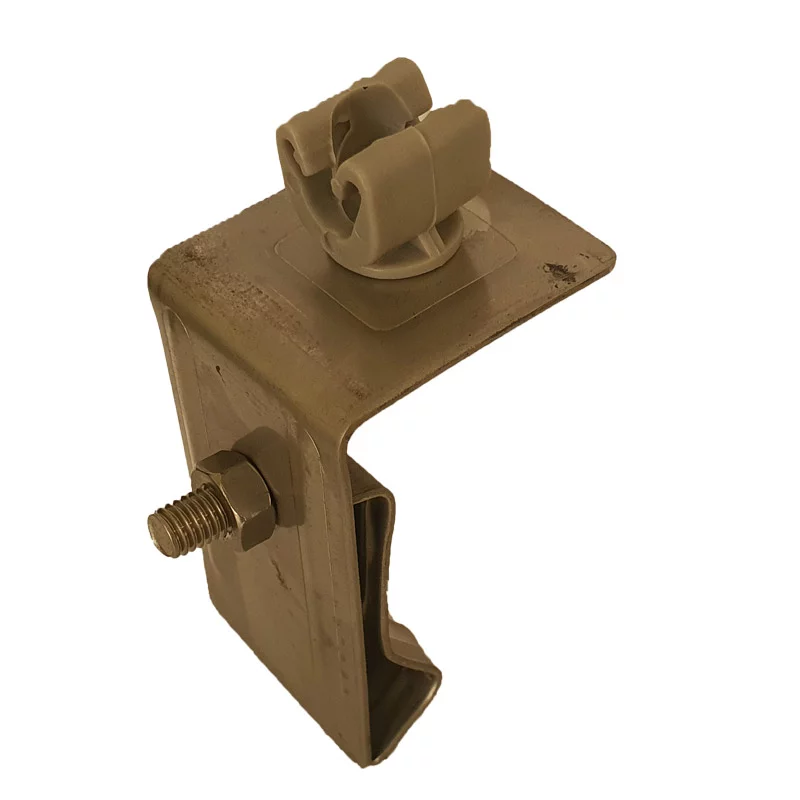

    KMFBSS-PCGY08P/PUSH
    Square
    Clamp
    25 x 3
    Aluminium
    -
    0.23
    KMFBSS-SQCA253
    25 x 3
    Aluminium
    -
    0.23

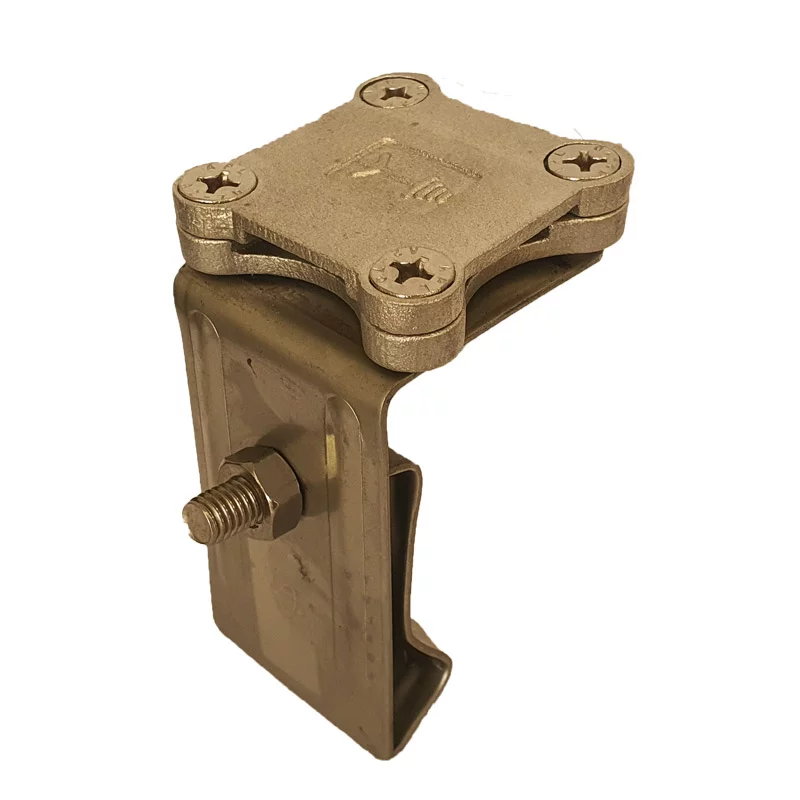

    KMFBSS-SQCAF253
    Non-Metallic
    DC Clip
    25 x 3
    Bare Copper
    Brown
    0.16

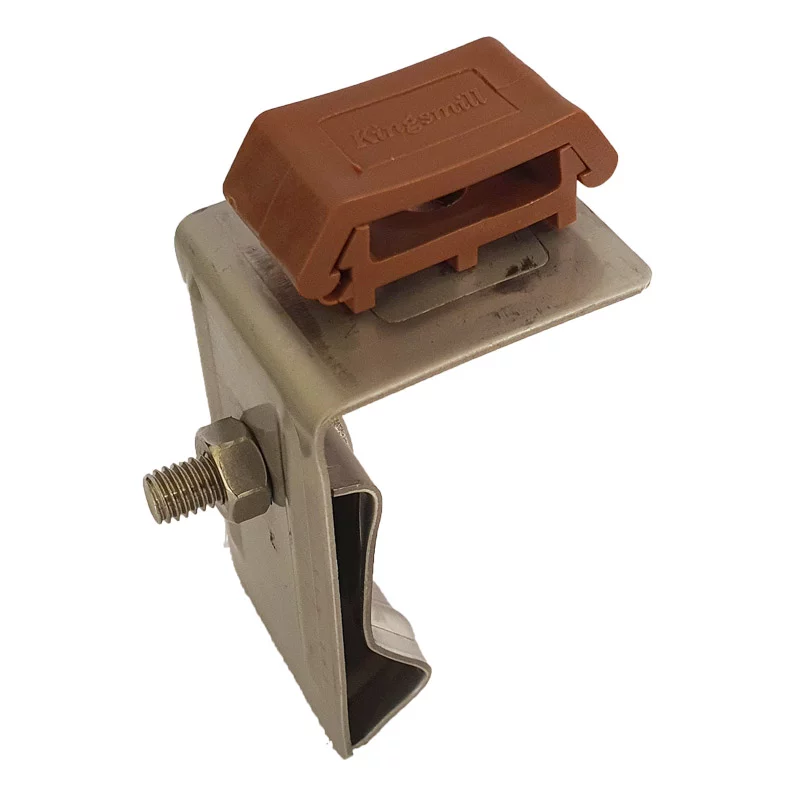

    KMFBSS-PCBN253B
    25 x 3
    PVC Copper
    Brown
    0.16
    KMFBSS-PCBN253P
    Metallic
    DC Clip
    25 x 3
    Bare Copper
    -
    0.22

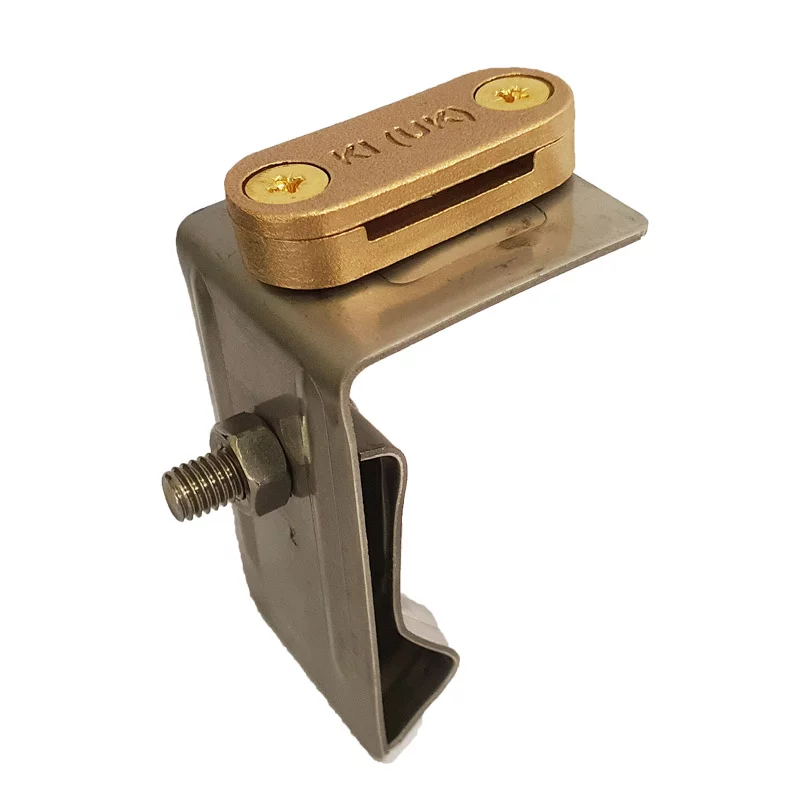

    KMFBSS-MDCF253
    25 x 3
    PVC Copper
    -
    0.28
    KMFBSS-MDCF253P
    Push-In
    Clip
    8mm dia
    Bare Copper
    Brown
    0.16
    KMFBSS-PCBN08B/PUSH
    8mm dia
    PVC Copper
    Brown
    0.16
    KMFBSS-PCBN08P/PUSH
    Square
    Clamp
    25 x 3
    Copper
    -
    0.39
    KMFBSS-SQCC253
    25 x 3
    Copper
    -
    0.38
    KMFBSS-SQCCF253
    Standing
    Seam Only
    -
    -
    -
    0.15
    KMFBSS
