Tinned Copper Cable Lugs
kingsmill tinned copper cable lug

Tinned Copper Cable Lugs

SKU: LTCxxx Category: Tag:
Clear
Download PDF

SKU: LTCxxx Category: Tag:

Product Information:

Compression Tube Lugs are manufactured from high conductive electrolytic copper and are tin plated for excellent corrosion resistance. We also supply Compression Tube Earth Lugs complete with two stud holes.

Features:

Material: Tinned copper
Standard: BS 7430

More Information:

Other sizes are available on request.

Materials used in earthing systems must be able to:

  • withstand mechanical damage
  • resist corrosion
  • provide a low impedance path to earth
  • carry the maximum fault condition for the application/installation

CABLE (mm²)

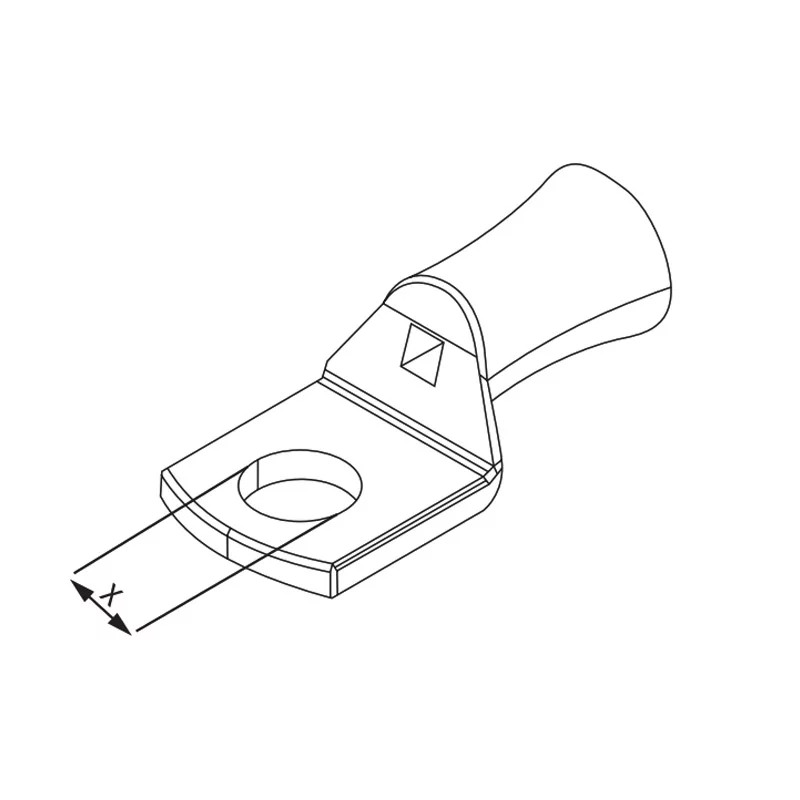

STUD (X) (mm)
WEIGHT (kg/m)
PART NO.
16
6
0.01
LTC16,06
16
8
0.01
LTC16,08
16
10
0.01
LTC16,10
16
12
0.01
LTC16,12
25
6
0.01
LTC25,06
25
8
0.01
LTC25,08
25
10
0.01
LTC25,10
25
12
0.01
LTC25,12
35
6
0.01
LTC35,06
35
8
0.01
LTC35,08
35
10
0.01
LTC35,10
35
12
0.01
LTC35,12
50
6
0.02
LTC50,06
50
8
0.02
LTC50,08
50
10
0.02
LTC50,10
50
12
0.02
LTC50,12
70
8
0.04
LTC70,08
70
10
0.04
LTC70,10
70
12
0.04
LTC70,12
70
14
0.04
LTC70,14
70
16
0.04
LTC70,16
95
8
0.06
LTC95,08
95
10
0.06
LTC95,10
95
12
0.06
LTC95,12
95
14
0.06
LTC95,14
95
16
0.06
LTC95,16
120
10
0.06
LTC120,10
120
12
0.06
LTC120,12
120
14
0.06
LTC120,14
120
16
0.06
LTC120.16
150
10
0.09
LTC150,10
150
12
0.09
LTC150,12
150
14
0.09
LTC150,14
150
16
0.09
LTC150,16
185
12
0.11
LTC185,12
185
14
0.11
LTC185,14
185
16
0.11
LTC185,16
240
12
0.14
LTC240,12
240
14
0.14
LTC240,14
240
16
0.14
LTC240,16
300
12
0.17
LTC300,12
300
14
0.17
LTC300,14
300
16
0.17
LTC300,16
400
12
0.21
LTC400,12
400
14
0.21
LTC400,14
400
16
0.21
LTC400,16

Related products

kingsmill
Telecom Earth Bars
kingsmill
Hard Drawn Copper Bars
kingsmill

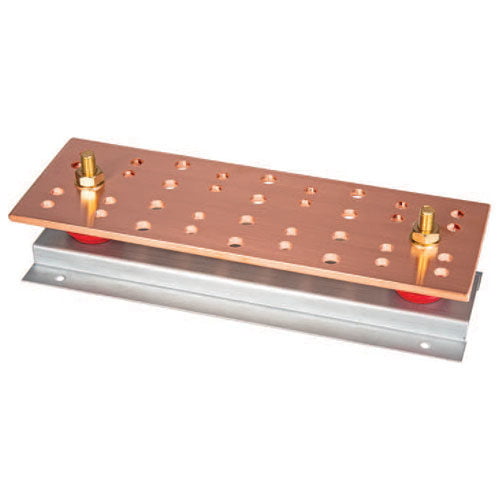

Standard Earth Bars
Insulator

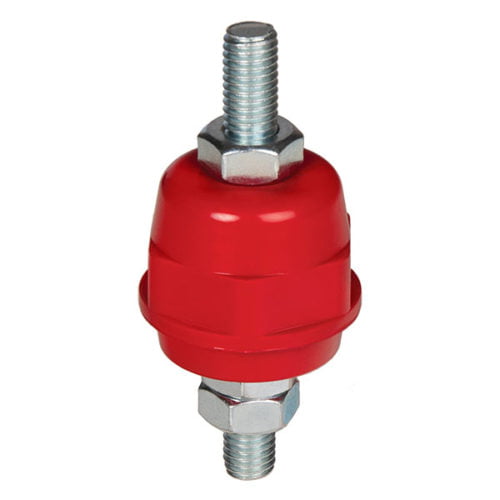

Insulators
